5026C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

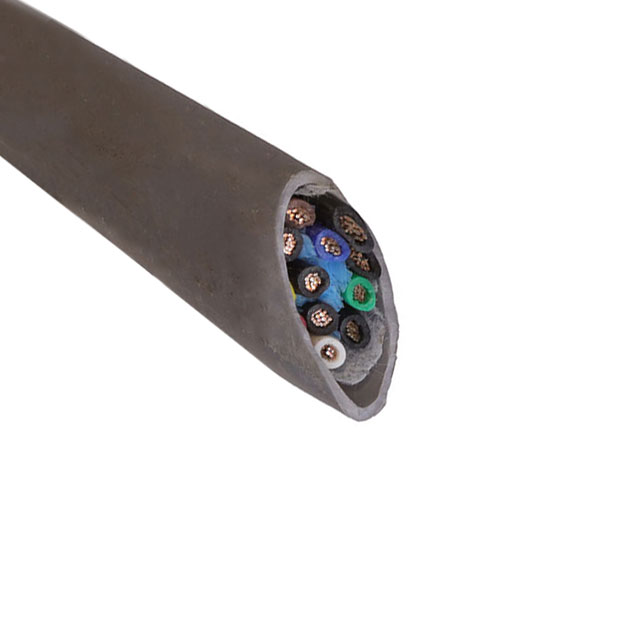

MULTIPAIR CABLE, XTRA GUARD® 1, UNSHIELDED, 6 PAIR, 22 AWG, 0.35 MM², 1000 FT, 304.8 M
| Part | Wire Gauge | Usage | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Cable Type | Jacket (Insulation) Material | Features | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Insulation | Ratings | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length | Voltage | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 22 AWG | Communication Control | 30 AWG | 7 | Slate | Multi-Pair | Poly-Vinyl Chloride (PVC) | Biological Compatibility Rip Cord | -35 °C | 105 ░C | Poly-Vinyl Chloride (PVC) | ISO 10993 UL Style 2464 | 8.03 mm | 0.316 " | 304.8 m | 1000 ft | 300 VDC | 12 | 0.813 mm | 0.032 in | Copper Tinned |
ALPHA WIRE | 22 AWG | Communication Control | 30 AWG | 7 | Slate | Multi-Pair | Poly-Vinyl Chloride (PVC) | Biological Compatibility Rip Cord | -35 °C | 105 ░C | Poly-Vinyl Chloride (PVC) | ISO 10993 UL Style 2464 | 8.03 mm | 0.316 " | 152.4 m | 500 ft | 300 VDC | 12 | 0.813 mm | 0.032 in | Copper Tinned |
ALPHA WIRE | 22 AWG | Communication Control | 30 AWG | 7 | Slate | Multi-Pair | Poly-Vinyl Chloride (PVC) | Biological Compatibility Rip Cord | -35 °C | 105 ░C | Poly-Vinyl Chloride (PVC) | ISO 10993 UL Style 2464 | 8.03 mm | 0.316 " | 300 VDC | 12 | 0.813 mm | 0.032 in | Copper Tinned | ||
 ALPHA WIRE | 22 AWG | Communication Control | 30 AWG | 7 | Black | Multi-Pair | Poly-Vinyl Chloride (PVC) | Biological Compatibility Rip Cord | -35 °C | 105 ░C | Poly-Vinyl Chloride (PVC) | ISO 10993 UL Style 2464 | 8.03 mm | 0.316 " | 304.8 m | 1000 ft | 300 VDC | 12 | 0.813 mm | 0.032 in | Copper Tinned |
