796641 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

8 POS 5.0 MM R/A PLUG,TRM BLK

Part	Contact Material	Screw Size	Wire Strip Length [Max]	Wire Strip Length [Min]	Material Flammability Rating	Torque - Screw	Torque - Screw	Insulation Height	Insulation Height	Features	Mounting Type	Number of Levels	Number of Positions	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Pitch	Pitch	Plug Wire Entry	Positions Per Level	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Voltage - UL	Type	Contact Mating Finish	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Color	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]
TE Connectivity AMP Connectors 796641-8	Phosphor Bronze	M3	7.5 mm	6 mm	UL94 V-0	7 Lb-In	0.79 Nm	0.61 in	15.49 mm	Retention Latches (Non-Wire Side) Side Stacking	Free Hanging (In-Line)	1	8	30 AWG	12 AWG	0.197 in	5 mm	180 °	8	3 mm²	0.05 mm²	300 V	Plug Female Sockets	Tin	Screw - Rising Cage Clamp	-40 C	110 °C	Black

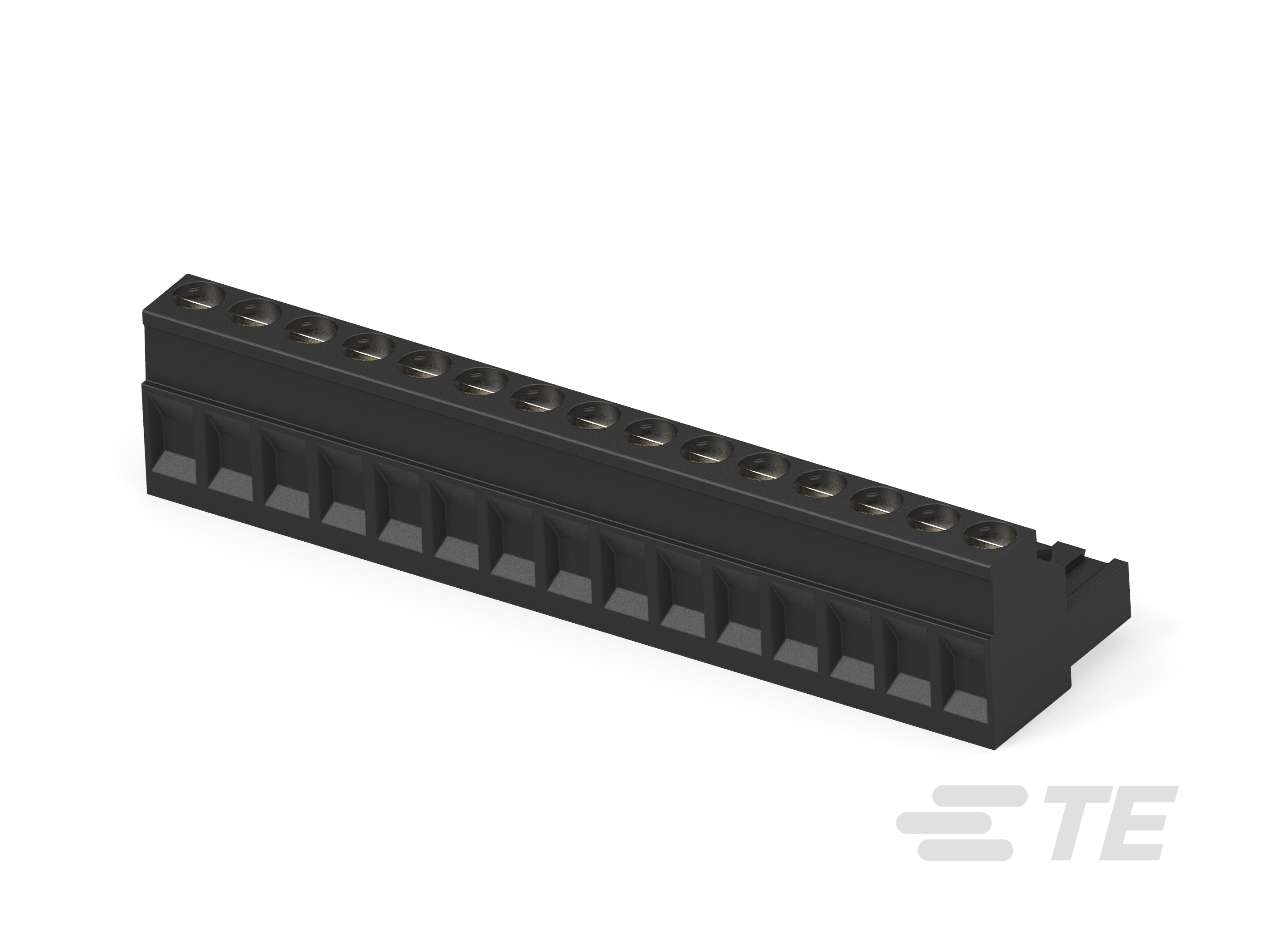

TE Connectivity AMP Connectors 1-796641-5	Phosphor Bronze	M3	7.5 mm	6 mm	UL94 V-0	7 Lb-In	0.79 Nm	0.61 in	15.49 mm	Retention Latches (Non-Wire Side) Side Stacking	Free Hanging (In-Line)	1	15	30 AWG	12 AWG	0.197 in	5 mm	180 °	15	3 mm²	0.05 mm²	300 V	Plug Female Sockets	Tin	Screw - Rising Cage Clamp	-40 C	110 °C	Black

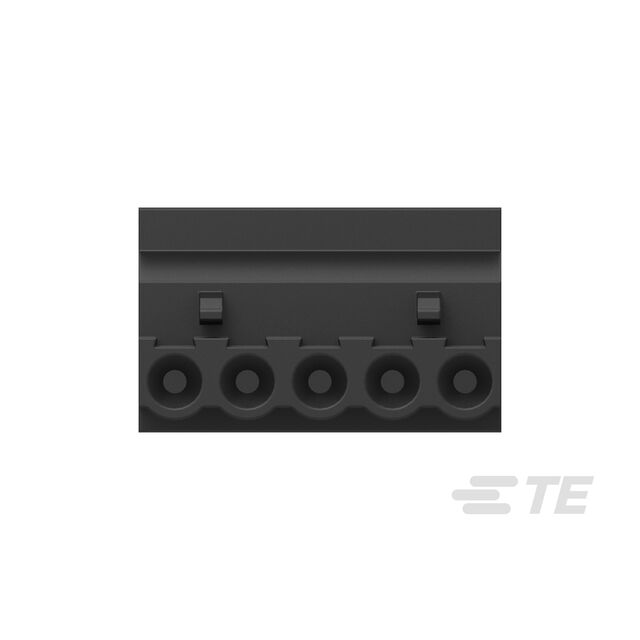

TE Connectivity AMP Connectors 796641-5	Phosphor Bronze	M3	7.5 mm	6 mm	UL94 V-0	7 Lb-In	0.79 Nm	0.61 in	15.49 mm	Retention Latches (Non-Wire Side) Side Stacking	Free Hanging (In-Line)	1	5	30 AWG	12 AWG	0.197 in	5 mm	180 °	5	3 mm²	0.05 mm²	300 V	Plug Female Sockets	Tin	Screw - Rising Cage Clamp	-40 C	110 °C	Black

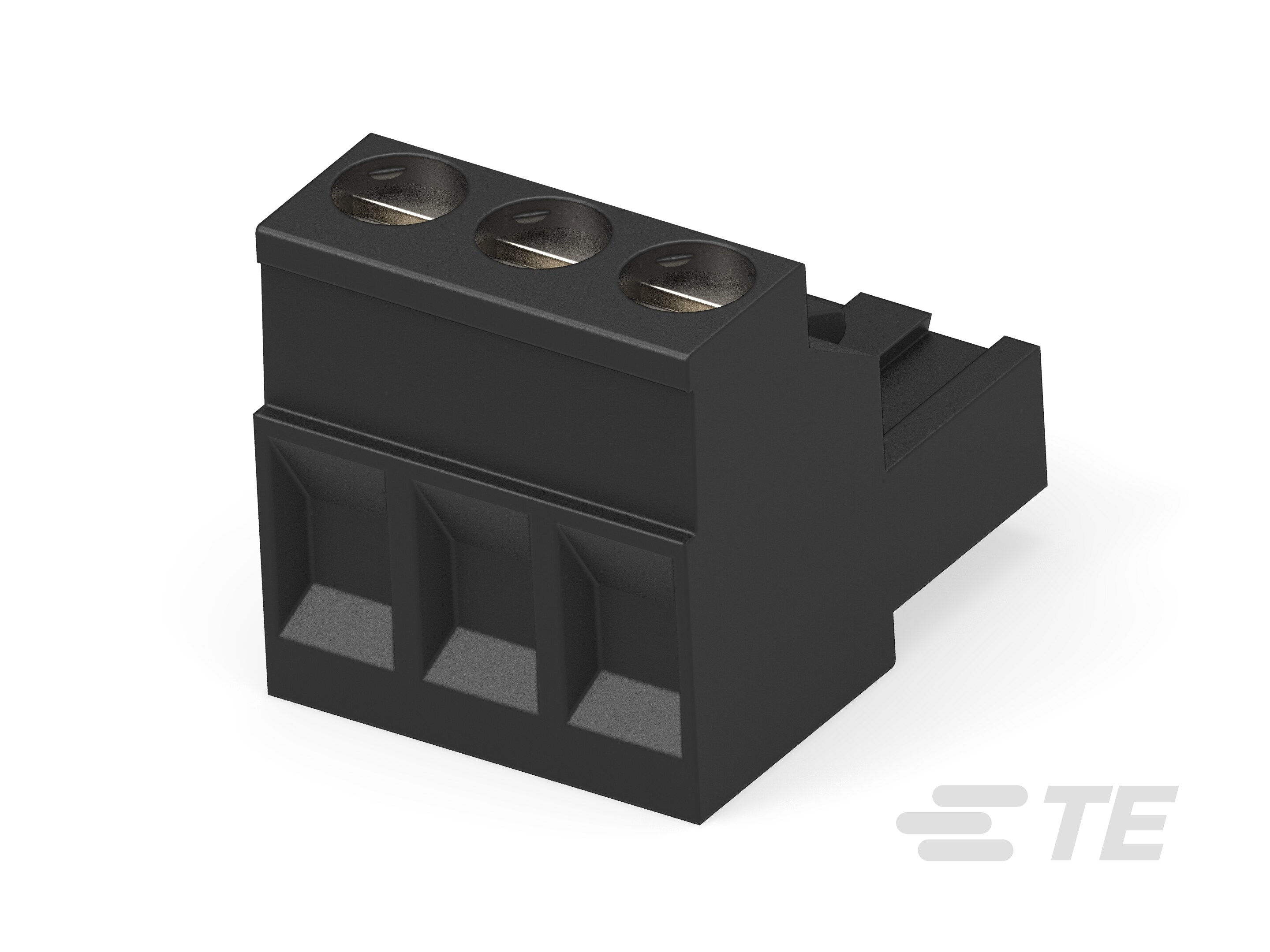

TE Connectivity AMP Connectors 796641-3	Phosphor Bronze	M3	7.5 mm	6 mm	UL94 V-0	7 Lb-In	0.79 Nm	0.61 in	15.49 mm	Retention Latches (Non-Wire Side) Side Stacking	Free Hanging (In-Line)	1		30 AWG	12 AWG	0.197 in	5 mm	180 °	3	3 mm²	0.05 mm²	300 V	Plug Female Sockets	Tin	Screw - Rising Cage Clamp	-40 C	110 °C	Black
TE Connectivity AMP Connectors 1-796641-4	Phosphor Bronze	M3	7.5 mm	6 mm	UL94 V-0	7 Lb-In	0.79 Nm	0.61 in	15.49 mm	Retention Latches (Non-Wire Side) Side Stacking	Free Hanging (In-Line)	1	14	30 AWG	12 AWG	0.197 in	5 mm	180 °	14	3 mm²	0.05 mm²	300 V	Plug Female Sockets	Tin	Screw - Rising Cage Clamp	-40 C	110 °C	Black

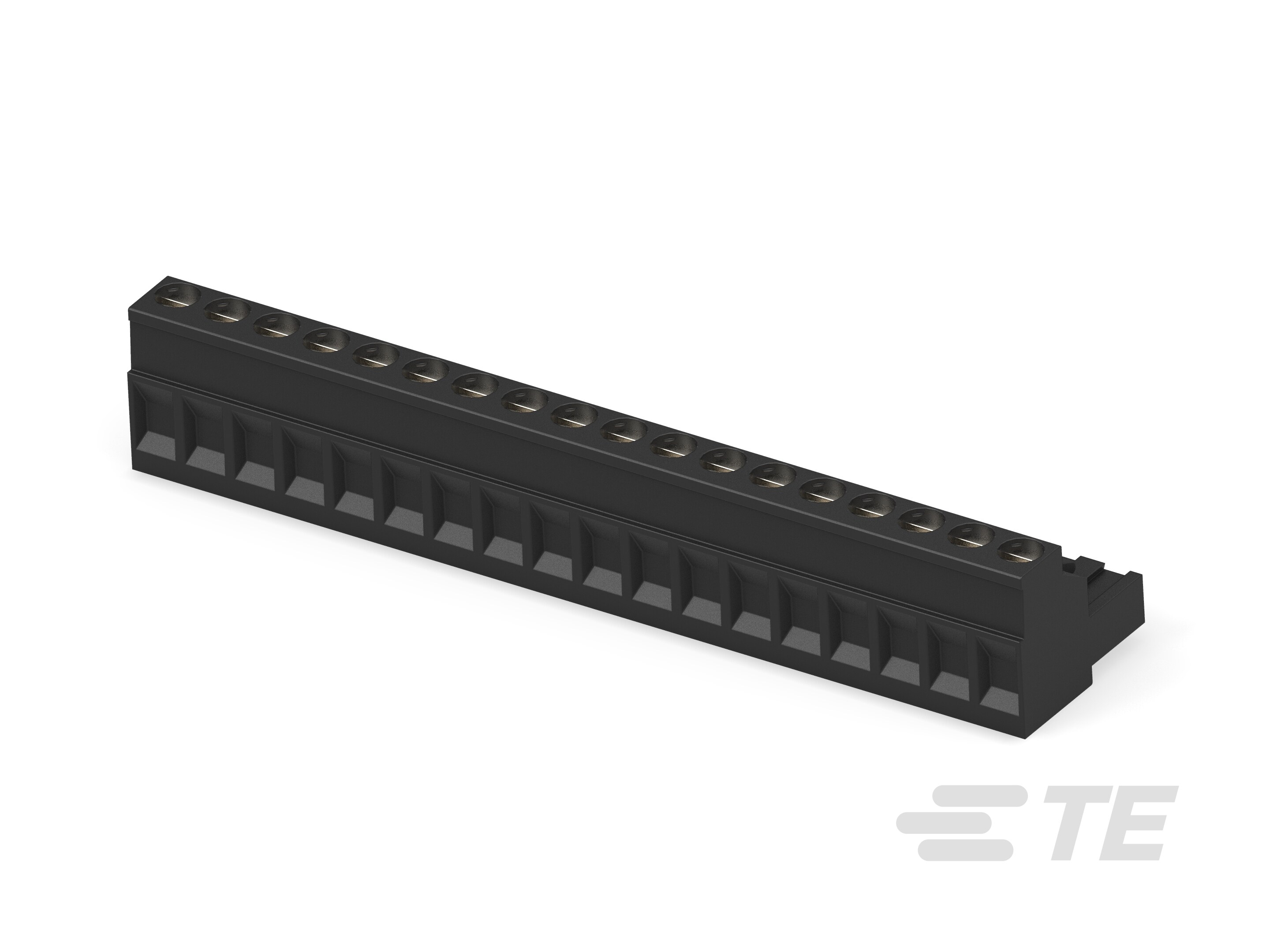

TE Connectivity AMP Connectors 1-796641-8	Phosphor Bronze	M3	7.5 mm	6 mm	UL94 V-0	7 Lb-In	0.79 Nm	0.61 in	15.49 mm	Retention Latches (Non-Wire Side) Side Stacking	Free Hanging (In-Line)	1	18	30 AWG	12 AWG	0.197 in	5 mm	180 °	18	3 mm²	0.05 mm²	300 V	Plug Female Sockets	Tin	Screw - Rising Cage Clamp	-40 C	110 °C	Black

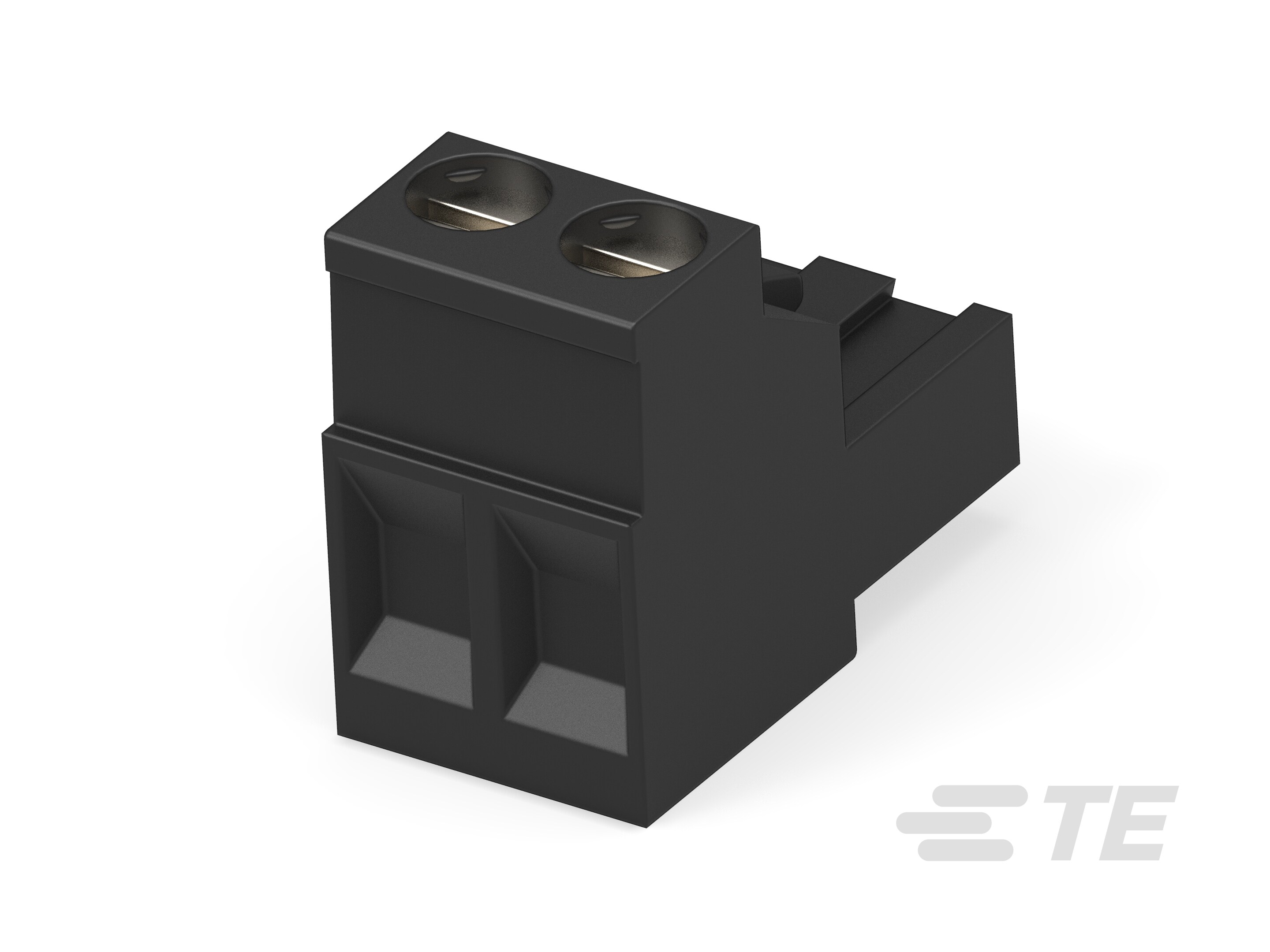

TE Connectivity AMP Connectors 796641-2	Phosphor Bronze	M3	7.5 mm	6 mm	UL94 V-0	7 Lb-In	0.79 Nm	0.61 in	15.49 mm	Retention Latches (Non-Wire Side) Side Stacking	Free Hanging (In-Line)	1	2	30 AWG	12 AWG	0.197 in	5 mm	180 °	2	3 mm²	0.05 mm²	300 V	Plug Female Sockets	Tin	Screw - Rising Cage Clamp	-40 C	110 °C	Black

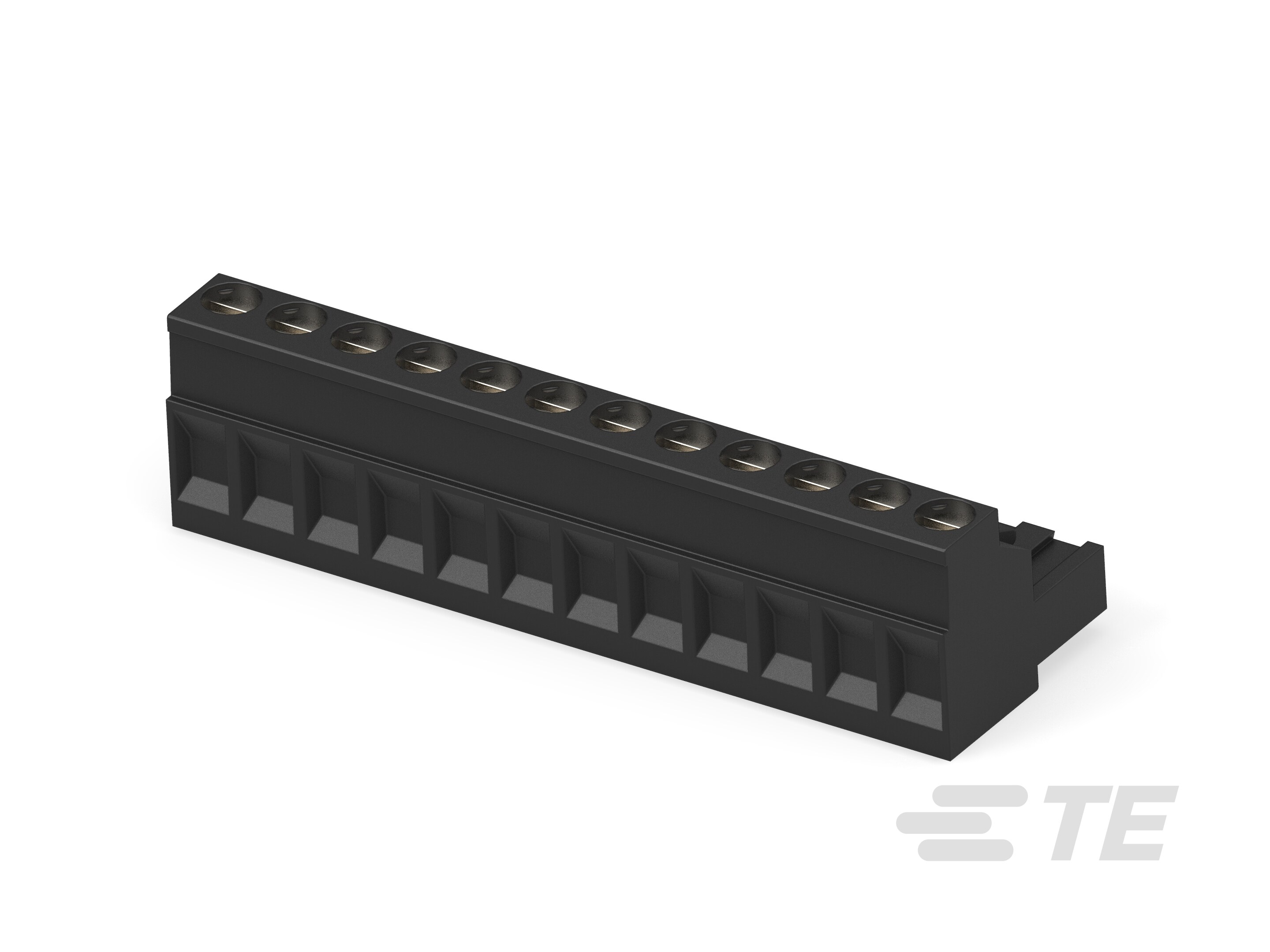

TE Connectivity AMP Connectors 1-796641-2	Phosphor Bronze	M3	7.5 mm	6 mm	UL94 V-0	7 Lb-In	0.79 Nm	0.61 in	15.49 mm	Retention Latches (Non-Wire Side) Side Stacking	Free Hanging (In-Line)	1	12	30 AWG	12 AWG	0.197 in	5 mm	180 °	12	3 mm²	0.05 mm²	300 V	Plug Female Sockets	Tin	Screw - Rising Cage Clamp	-40 C	110 °C	Black

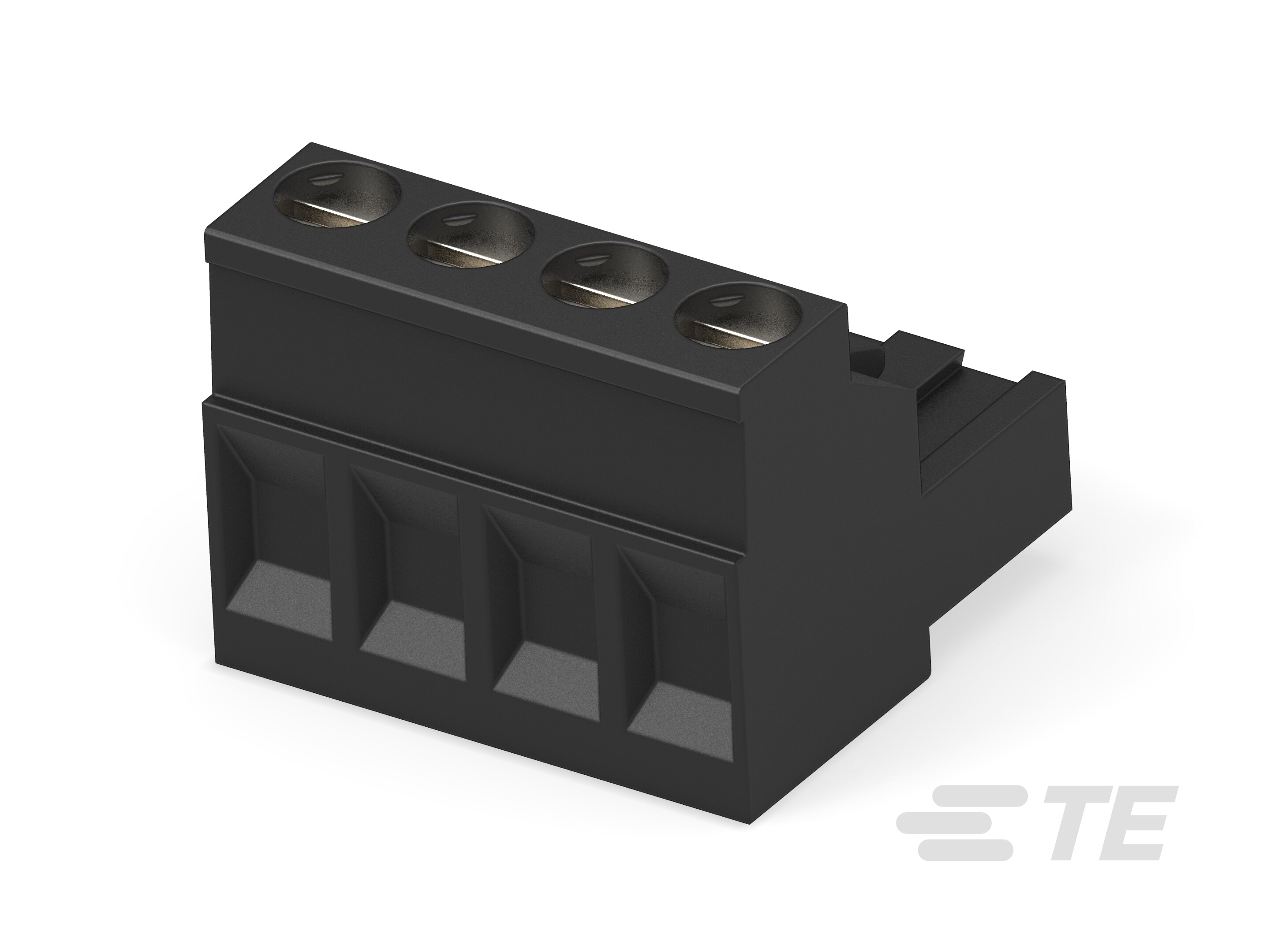

TE Connectivity AMP Connectors 796641-4	Phosphor Bronze	M3	7.5 mm	6 mm	UL94 V-0	7 Lb-In	0.79 Nm	0.61 in	15.49 mm	Retention Latches (Non-Wire Side) Side Stacking	Free Hanging (In-Line)	1	4	30 AWG	12 AWG	0.197 in	5 mm	180 °	4	3 mm²	0.05 mm²	300 V	Plug Female Sockets	Tin	Screw - Rising Cage Clamp	-40 C	110 °C	Black	3 mm˛	0.05 mm˛
TE Connectivity AMP Connectors 796641-9	Phosphor Bronze	M3	7.5 mm	6 mm	UL94 V-0	7 Lb-In	0.79 Nm	0.61 in	15.49 mm	Retention Latches (Non-Wire Side) Side Stacking	Free Hanging (In-Line)	1	9	30 AWG	12 AWG	0.197 in	5 mm	180 °	9	3 mm²	0.05 mm²	300 V	Plug Female Sockets	Tin	Screw - Rising Cage Clamp	-40 C	110 °C	Black
