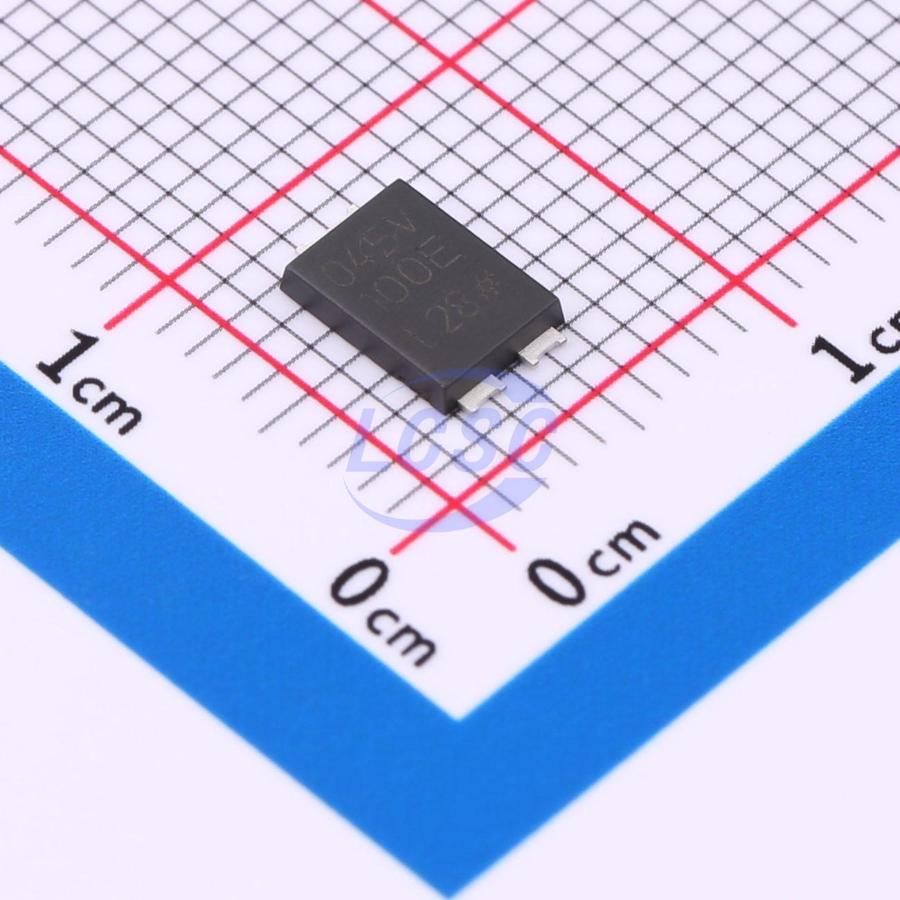

PMEG045V100EPE Series

45 V, 10 A low VF Schottky barrier rectifier

Catalog

45 V, 10 A low VF Schottky barrier rectifier

Part	Current - Reverse Leakage @ Vr	Operating Temperature - Junction	Package / Case	Current - Average Rectified (Io)	Technology	Supplier Device Package	Mounting Type	Capacitance @ Vr, F	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Reverse Recovery Time (trr)
Freescale Semiconductor - NXP PMEG045V100EPEZ	600 µA	175 °C	3-PowerDFN TO-277	10 A	Schottky	CFP15B	Surface Mount	1140 pF	45 V	200 mA 500 ns	36 ns

45 V, 10 A low VF Schottky barrier rectifier

Planar Low VFSchottky barrier rectifier encapsulated in a CFP15B (SOT1289B) power and flat lead Surface-Mounted Device (SMD) plastic package.
