ST-DB9 Series

Catalog

DB9 FEMALE BREAKOUT BOARD

Part	Material	Proto Board Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Package Accepted	Number of Positions	Pitch	Pitch	Board Thickness	Board Thickness

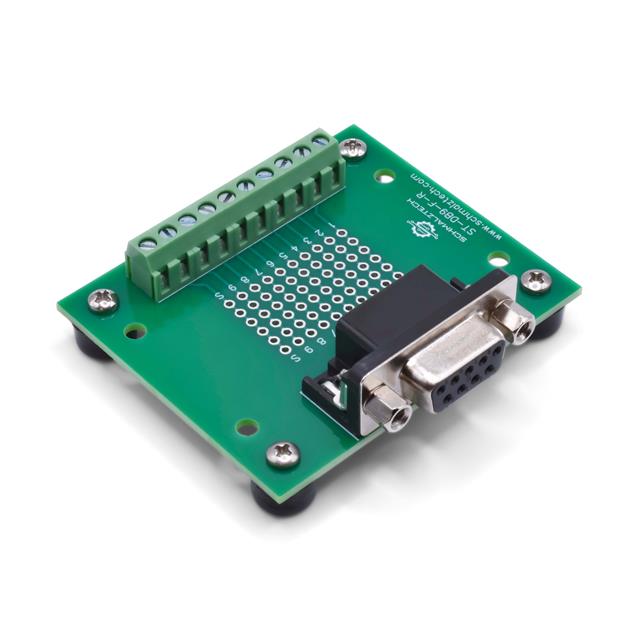

SchmalzTech, LLC ST-DB9-F-R-FT	FR4 Epoxy Glass	Connector to Terminal Block	60.96 mm	2.4 in	50.8 mm	2 in	DB9	9	0.1 "	2.54 mm	0.063 in	1.6 mm

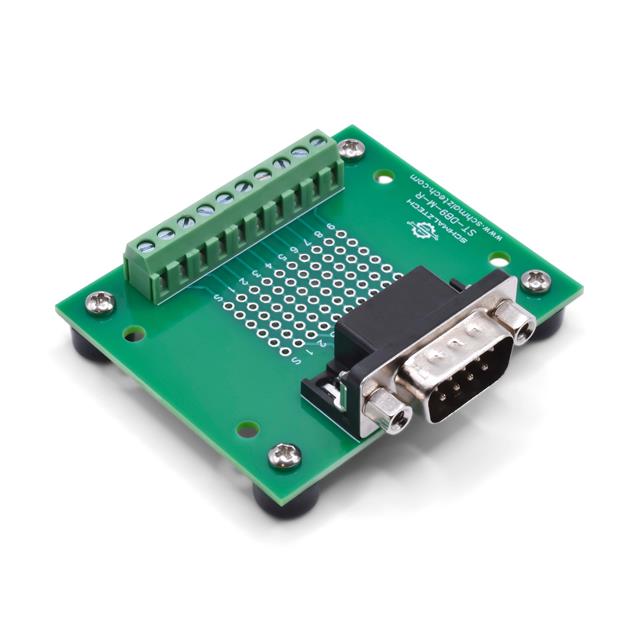

SchmalzTech, LLC ST-DB9-M-R-FT	FR4 Epoxy Glass	Connector to Terminal Block	60.96 mm	2.4 in	50.8 mm	2 in	DB9	9	0.1 "	2.54 mm	0.063 in	1.6 mm
