NPIC6C596 Series
Manufacturer: Nexperia USA Inc.
Beta
⌘K
IC SHIFT REGISTER 8BIT 16DHVQFN
| Part | Output Type | Mounting Type | Supplier Device Package | Number of Bits per Element [custom] | Number of Elements | Operating Temperature [Max] | Operating Temperature [Min] | Function | Voltage - Supply [Max] | Voltage - Supply [Min] | Package / Case | Logic Type | Grade | Qualification | Package / Case | Package / Case [y] | Package / Case [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nexperia USA Inc. | Open Drain | Surface Mount | 16-DHVQFN (2.5x3.5) | 8 | 1 | 125 °C | -40 C | Serial Serial to Parallel | 5.5 V | 4.5 V | 16-VFQFN Exposed Pad | Shift Register | |||||
Nexperia USA Inc. | Open Drain | Surface Mount | 16-DHVQFN (2.5x3.5) | 8 | 1 | 125 °C | -40 C | Serial Serial to Parallel | 5.5 V | 4.5 V | 16-VFQFN Exposed Pad | Shift Register | Automotive | AEC-Q100 | |||

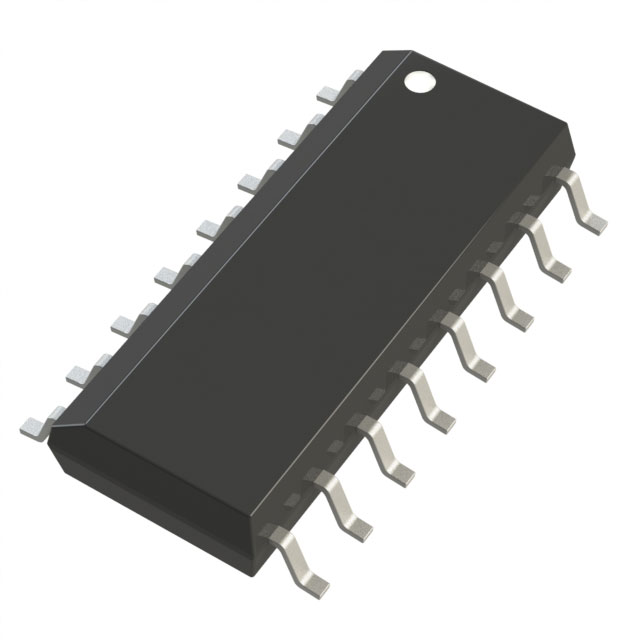

 Nexperia USA Inc. | Open Drain | Surface Mount | 16-SO | 8 | 1 | 125 °C | -40 C | Serial Serial to Parallel | 5.5 V | 4.5 V | 16-SOIC | Shift Register | 0.154 in 3.9 mm | ||||
Nexperia USA Inc. | Open Drain | Surface Mount | 16-DHVQFN (2.5x3.5) | 8 | 1 | 125 °C | -40 C | Serial Serial to Parallel | 5.5 V | 2.3 V | 16-VFQFN Exposed Pad | Shift Register | |||||
 Nexperia USA Inc. | Open Drain | Surface Mount | 16-TSSOP | 8 | 1 | 125 °C | -40 C | Serial Serial to Parallel | 5.5 V | 2.3 V | 16-TSSOP | Shift Register | Automotive | AEC-Q100 | 4.4 mm | 0.173 in | |
Nexperia USA Inc. | Open Drain | Surface Mount | 16-SO | 8 | 1 | 125 °C | -40 C | Serial Serial to Parallel | 5.5 V | 2.3 V | 16-SOIC | Shift Register | Automotive | AEC-Q100 | 0.154 in 3.9 mm |
