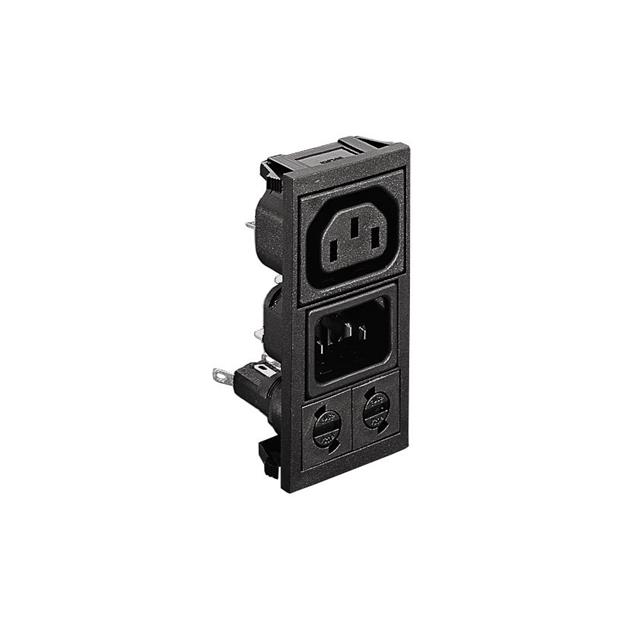

BZV09/A Series
Manufacturer: BULGIN LIMITED
Beta
⌘K
PWR ENT MOD IN/OUT IEC320-2-2F
| Part | Voltage Rating - Appliance Inlet | Filter Type | Approval Agency | Connector Type | Termination | Termination | Termination | Current Rating - Appliance Inlet | Current Rating - Filter | Material Flammability Rating | Mounting Type | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Connector Style | Fuse Holder, Drawer | Panel Thickness [Max] | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Min] | Accomodates a Fuse |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BULGIN LIMITED | 250 VAC | Filtered (EMI RFI) - Commercial | CSA ENEC UL VDE | Receptacle Female Sockets; Receptacle Male Blades - Module | 6.3 mm | Quick Connect | 0.25 " | 10 A | 10 A | UL94 V-0 | Panel Mount Snap-In | 34.4 mm | 76.5 mm | IEC 320-2-2/F IEC 320-C14 | Twin Fused | 0.118 in | 3 mm | 1 mm | 0.039 in |
