305-042 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 42POS 0.156

Part	Termination Rows [custom]	Material - Insulation	Gender	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions/Bay/Row [custom]	Color	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Contact Finish	Read Out	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Termination	Number of Rows [custom]	Contact Material	Card Type	Number of Positions	Contact Type	Card Thickness [Max]	Card Thickness [Min]	Features

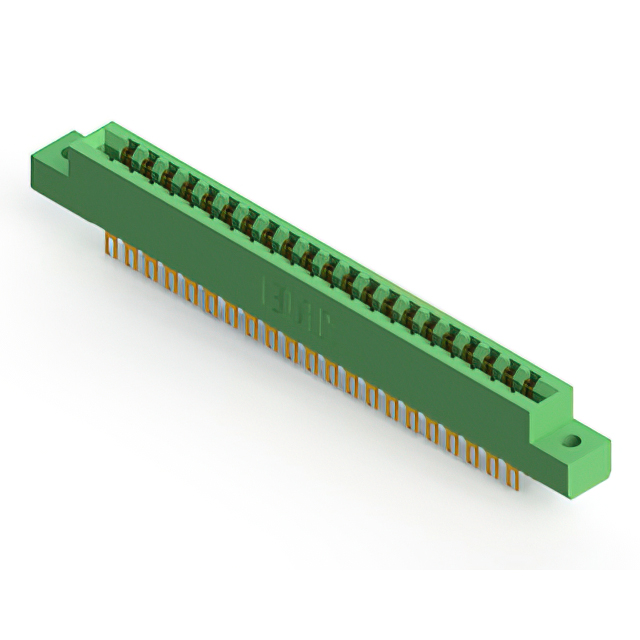

EDAC Inc. 305-042-500-202	2	Polyester Thermoplastic	Female	Panel Mount	-40 C	105 ░C	21	Green	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	Gold	Dual	3.96 mm	0.156 in	0.25 Ám	10 Áin	Solder Eyelet(s)	2	Copper Alloy	Non Specified - Dual Edge	42	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm

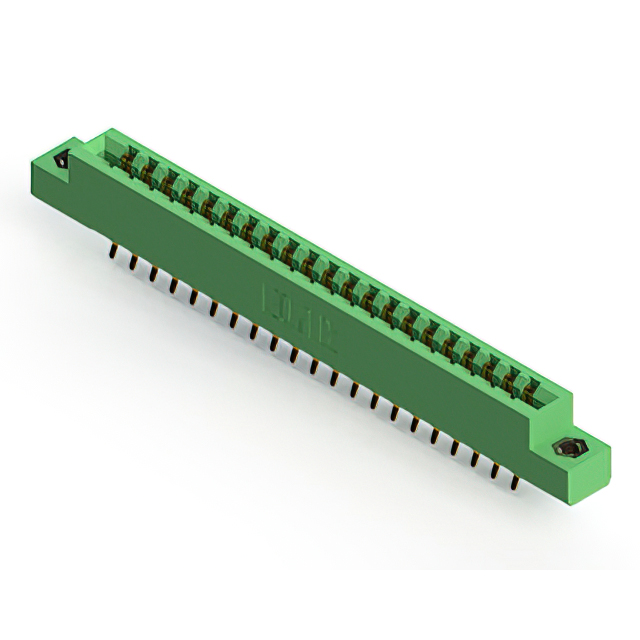

EDAC Inc. 305-042-556-207	2	Polyester Thermoplastic	Female	Board Edge Straddle Mount	-40 C	105 ░C	21	Green	Flush Mount M3 Threaded Insert Top Opening			Gold	Dual	3.96 mm	0.156 in	0.25 Ám	10 Áin	Solder	2	Copper Alloy	Non Specified - Dual Edge	42	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	Card Extender

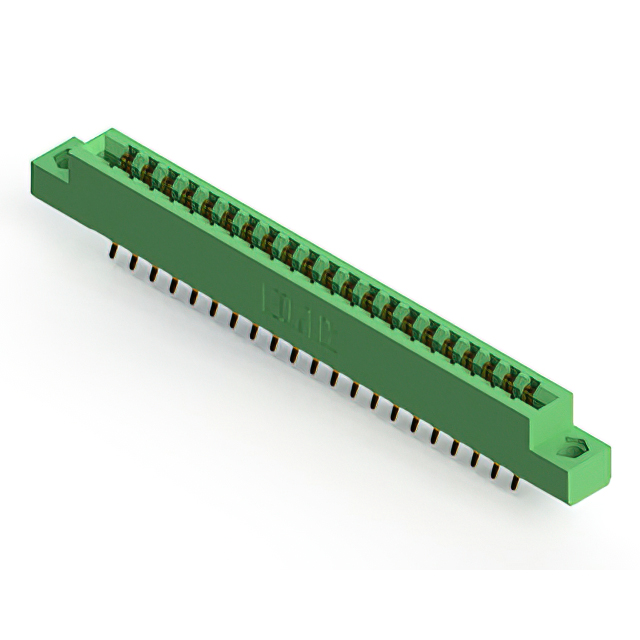

EDAC Inc. 305-042-556-504	2	Polyester Thermoplastic	Female	Board Edge Straddle Mount	-40 C	105 ░C	21	Green	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 "	Gold	Dual	3.96 mm	0.156 in	0.25 Ám	10 Áin	Solder	2	Copper Alloy	Non Specified - Dual Edge	42	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	Card Extender
EDAC Inc. 305-042-500-507	2	Polyester Thermoplastic	Female	Panel Mount	-40 C	105 ░C	21	Green	Flush Mount M3 Threaded Insert Top Opening			Gold	Dual	3.96 mm	0.156 in	0.25 Ám	10 Áin	Solder Eyelet(s)	2	Copper Alloy	Non Specified - Dual Edge	42	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm

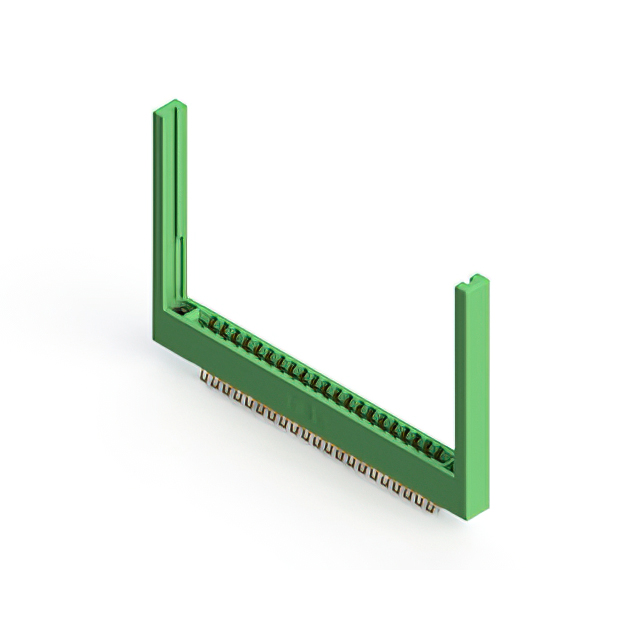

EDAC Inc. 305-042-555-568	2	Polyester Thermoplastic	Female	Board Edge Straddle Mount	-40 C	105 ░C	21	Green	4-40 Flush Mount Threaded Insert Top Opening			Gold	Dual	3.96 mm	0.156 in	0.25 Ám	10 Áin	Solder	2	Copper Alloy	Non Specified - Dual Edge	42	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	Card Extender Card Guides

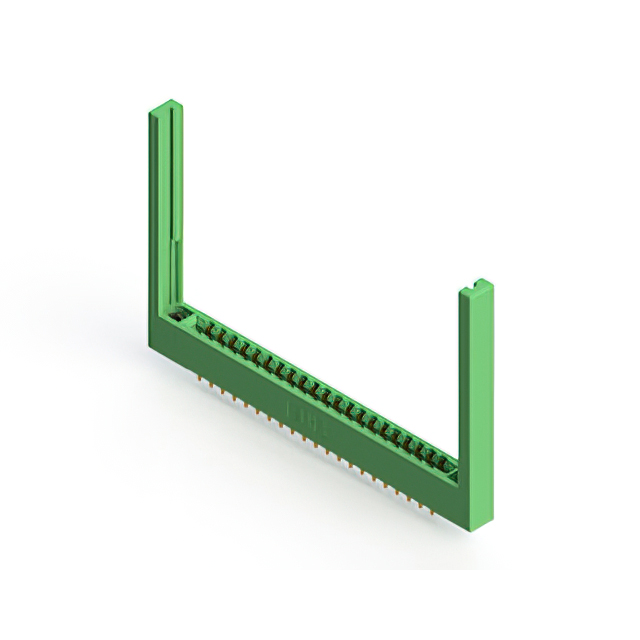

EDAC Inc. 305-042-521-568	2	Polyester Thermoplastic	Female	Panel Mount Through Hole	-40 C	105 ░C	21	Green	4-40 Flush Mount Threaded Insert Top Opening			Gold	Dual	3.96 mm	0.156 in	0.25 Ám	10 Áin	Solder	2	Copper Alloy	Non Specified - Dual Edge	42	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm

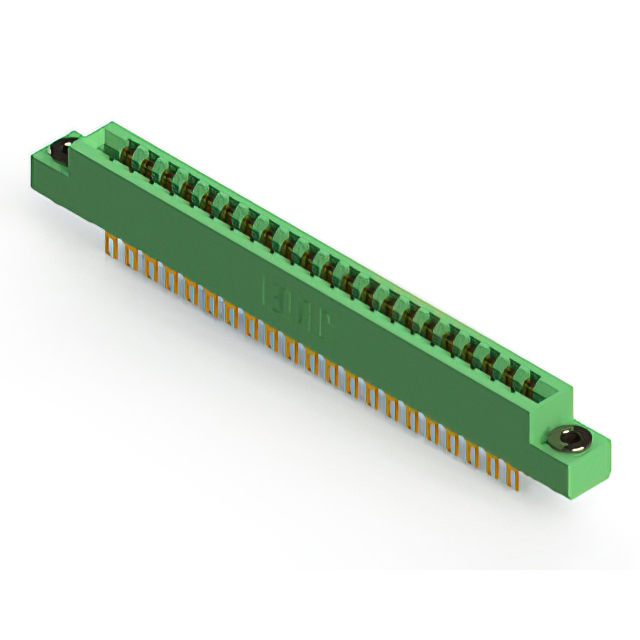

EDAC Inc. 305-042-500-203	2	Polyester Thermoplastic	Female	Panel Mount	-40 C	105 ░C	21	Green	Floating Bobbin Flush Mount	2.95 mm	0.116 "	Gold	Dual	3.96 mm	0.156 in	0.25 Ám	10 Áin	Solder Eyelet(s)	2	Copper Alloy	Non Specified - Dual Edge	42	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm

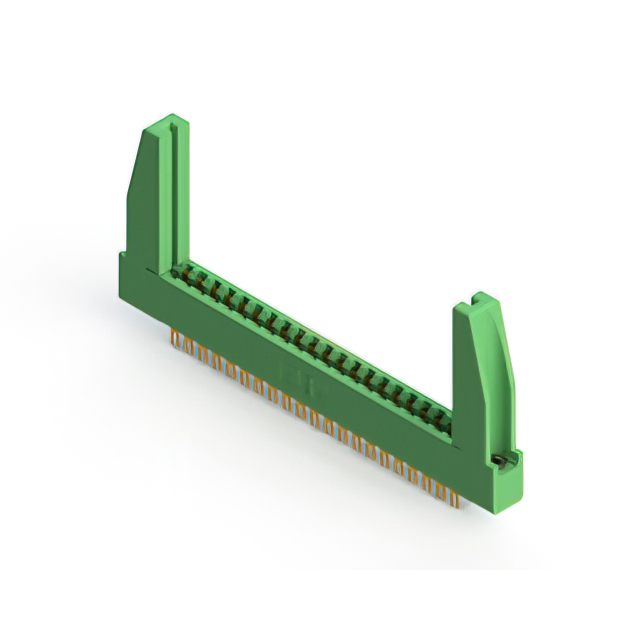

EDAC Inc. 305-042-500-278	2	Polyester Thermoplastic	Female	Panel Mount	-40 C	105 ░C	21	Green	4-40 Flush Mount Threaded Insert Top Opening			Gold	Dual	3.96 mm	0.156 in	0.25 Ám	10 Áin	Solder Eyelet(s)	2	Copper Alloy	Non Specified - Dual Edge	42	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 305-042-521-207	2	Polyester Thermoplastic	Female	Panel Mount Through Hole	-40 C	105 ░C	21	Green	Flush Mount M3 Threaded Insert Top Opening			Gold	Dual	3.96 mm	0.156 in	0.25 Ám	10 Áin	Solder	2	Copper Alloy	Non Specified - Dual Edge	42	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 305-042-520-203	2	Polyester Thermoplastic	Female	Panel Mount Through Hole	-40 C	105 ░C	21	Green	Floating Bobbin Flush Mount	2.95 mm	0.116 "	Gold	Dual	3.96 mm	0.156 in	0.25 Ám	10 Áin	Solder	2	Copper Alloy	Non Specified - Dual Edge	42	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm
