306-033 Series
Manufacturer: EDAC Inc.
Beta
⌘K

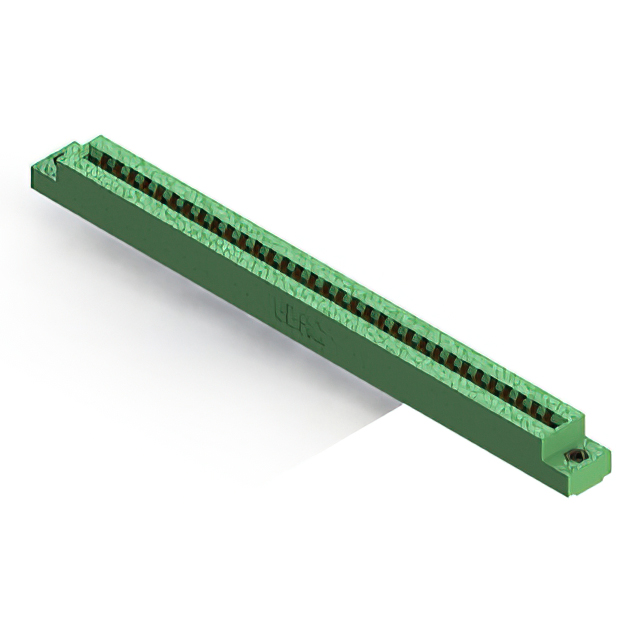

CONN EDGE DUAL FMALE 66POS 0.156
| Part | Termination Rows | Material - Insulation | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Number of Positions/Bay/Row | Read Out | Card Thickness [Max] | Card Thickness [Min] | Pitch | Pitch | Card Type | Color | Number of Rows [custom] | Termination | Number of Positions | Mounting Type | Contact Type | Contact Material | Contact Finish | Features | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | Female | -40 C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | 33 | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Non Specified - Dual Edge | Green | 2 | Solder Eyelet(s) | 66 | Panel Mount | Cantilever | Copper Alloy | Tin | |||||
 EDAC Inc. | 1 | Polyester Thermoplastic | Female | -40 C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | 33 | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Non Specified - Dual Edge | Green | 2 | Solder | 66 | Panel Mount Through Hole | Cantilever | Copper Alloy | Tin | Card Guides | ||||
 EDAC Inc. | 1 | Polyester Thermoplastic | Female | -40 C | 105 ░C | Flush Mount M3 Threaded Insert Top Opening | 33 | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Non Specified - Dual Edge | Green | 2 | Solder | 66 | Panel Mount Through Hole | Cantilever | Copper Alloy | Gold | 0.25 Ám | 10 Áin | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Female | -40 C | 105 ░C | Flush Mount Top Opening Unthreaded | 33 | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Non Specified - Dual Edge | Green | 2 | Solder | 66 | Panel Mount Through Hole | Cantilever | Copper Alloy | Tin | 3.25 mm | 0.128 " | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Female | -40 C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | 33 | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Non Specified - Dual Edge | Green | 2 | Solder Eyelet(s) | 66 | Panel Mount | Cantilever | Copper Alloy | Tin | Card Guides | ||||
 EDAC Inc. | 1 | Polyester Thermoplastic | Female | -40 C | 105 ░C | 33 | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Non Specified - Dual Edge | Green | 2 | Solder | 66 | Through Hole | Cantilever | Copper Alloy | Gold | 0.25 Ám | 10 Áin | ||||
 EDAC Inc. | 1 | Polyester Thermoplastic | Female | -40 C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | 33 | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Non Specified - Dual Edge | Green | 2 | Solder | 66 | Panel Mount Through Hole | Cantilever | Copper Alloy | Tin | |||||
 EDAC Inc. | 1 | Polyester Thermoplastic | Female | -40 C | 105 ░C | 33 | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Non Specified - Dual Edge | Green | 2 | Solder | 66 | Through Hole | Cantilever | Copper Alloy | Gold | 0.25 Ám | 10 Áin | ||||
 EDAC Inc. | 1 | Polyester Thermoplastic | Female | -40 C | 105 ░C | Flush Mount Top Opening Unthreaded | 33 | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Non Specified - Dual Edge | Green | 2 | Solder | 66 | Panel Mount Through Hole | Cantilever | Copper Alloy | Tin | 3.96 mm | 0.156 " | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Female | -40 C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | 33 | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Non Specified - Dual Edge | Green | 2 | Solder Eyelet(s) | 66 | Panel Mount | Cantilever | Copper Alloy | Tin | Card Guides |
