5163C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

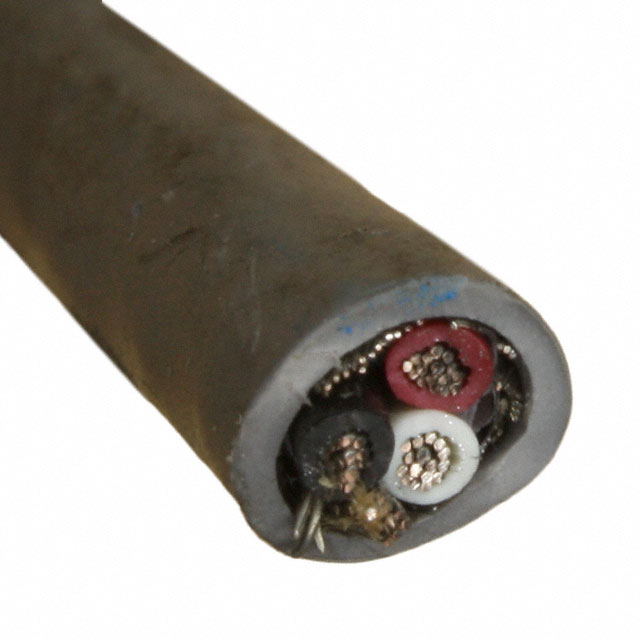

CABLE 3CON 18AWG SLATE SHLD 100'
| Part | Shield Coverage | Shield Material | Cable Type | Ratings | Number of Conductors | Length [x] | Length [x] | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Voltage | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Usage | Conductor Material | Conductor Insulation | Features | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Multi-Conductor | ISO 10993 | 3 | 100 ft | 30.5 m | -35 °C | 105 ░C | 6.76 mm | 0.266 in | Slate | 300 VDC | Poly-Vinyl Chloride (PVC) | 16 | 30 AWG | Communication Control | Copper Tinned | Poly-Vinyl Chloride (PVC) | Biological Compatibility Drain Wire Rip Cord | Braid Foil | 0.813 mm | 0.032 in | 18 AWG | ||
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Multi-Conductor | ISO 10993 | 3 | -35 °C | 105 ░C | 6.76 mm | 0.266 in | Black | 300 VDC | Poly-Vinyl Chloride (PVC) | 16 | 30 AWG | Communication Control | Copper Tinned | Poly-Vinyl Chloride (PVC) | Biological Compatibility Drain Wire Rip Cord | Braid Foil | 0.813 mm | 0.032 in | 18 AWG | 304.8 m | 1000 ft | ||
ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Multi-Conductor | ISO 10993 | 3 | -35 °C | 105 ░C | 6.76 mm | 0.266 in | Slate | 300 VDC | Poly-Vinyl Chloride (PVC) | 16 | 30 AWG | Communication Control | Copper Tinned | Poly-Vinyl Chloride (PVC) | Biological Compatibility Drain Wire Rip Cord | Braid Foil | 0.813 mm | 0.032 in | 18 AWG | 304.8 m | 1000 ft |
