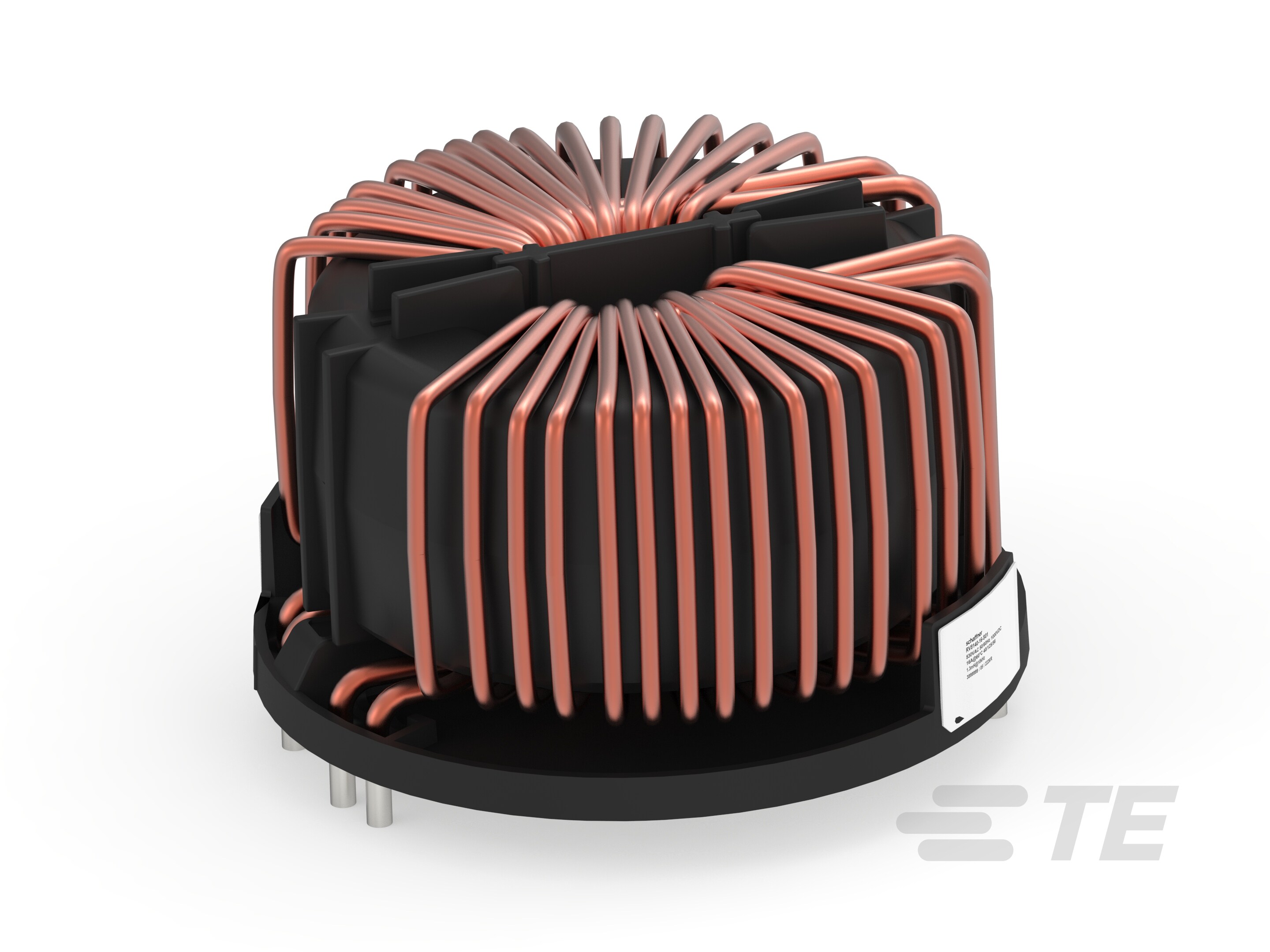

Schaffner RT-Series Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

Catalog

VERTICAL 63 A PCB THREE LINE COM

...

Part	Number of Lines	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	DC Resistance (DCR) (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage Rating - AC	Mounting Type	Filter Type	Height (Max) [z]	Height (Max) [z]	DC Resistance (DCR) (Max)	Package / Case	Voltage Rating - DC	Inductance @ Frequency	Height (Max) [Max] [z]	Current Rating (Max) [Max]	Height (Max) [Max] [z]	Height (Max) [diameter]	Height (Max) [diameter]	Size / Dimension [diameter]	Size / Dimension [diameter]	Height (Max) [z]	Features	Height (Max)
TE Connectivity AMP Connectors RT8532-63-0M3	3	Vertical 10 PC Pin	-40 C	100 °C	0.8 mOhm	64 mm	42 mm	1.654 in	2.52 "	600 V	Through Hole	Power Line	2.638 in	67 mm
TE Connectivity AMP Connectors RT8522-63-0M5	2	Vertical	-40 C	100 °C		64 mm	42 mm	1.654 in	2.52 "	300 V	Through Hole	Power Line		64 mm	1 mOhm	8 PC Pad	425 VDC	100 kHz 500 µH	2.52 in
TE Connectivity AMP Connectors RT8522-12-5M0	2	Vertical 4 PC Pin	-40 C	100 °C		50 mm	32 mm	1.26 in	1.969 "	300 V	Through Hole	Power Line			14 mOhm		425 VDC	5 mH 100 kHz	2.047 in	12 A	52 mm

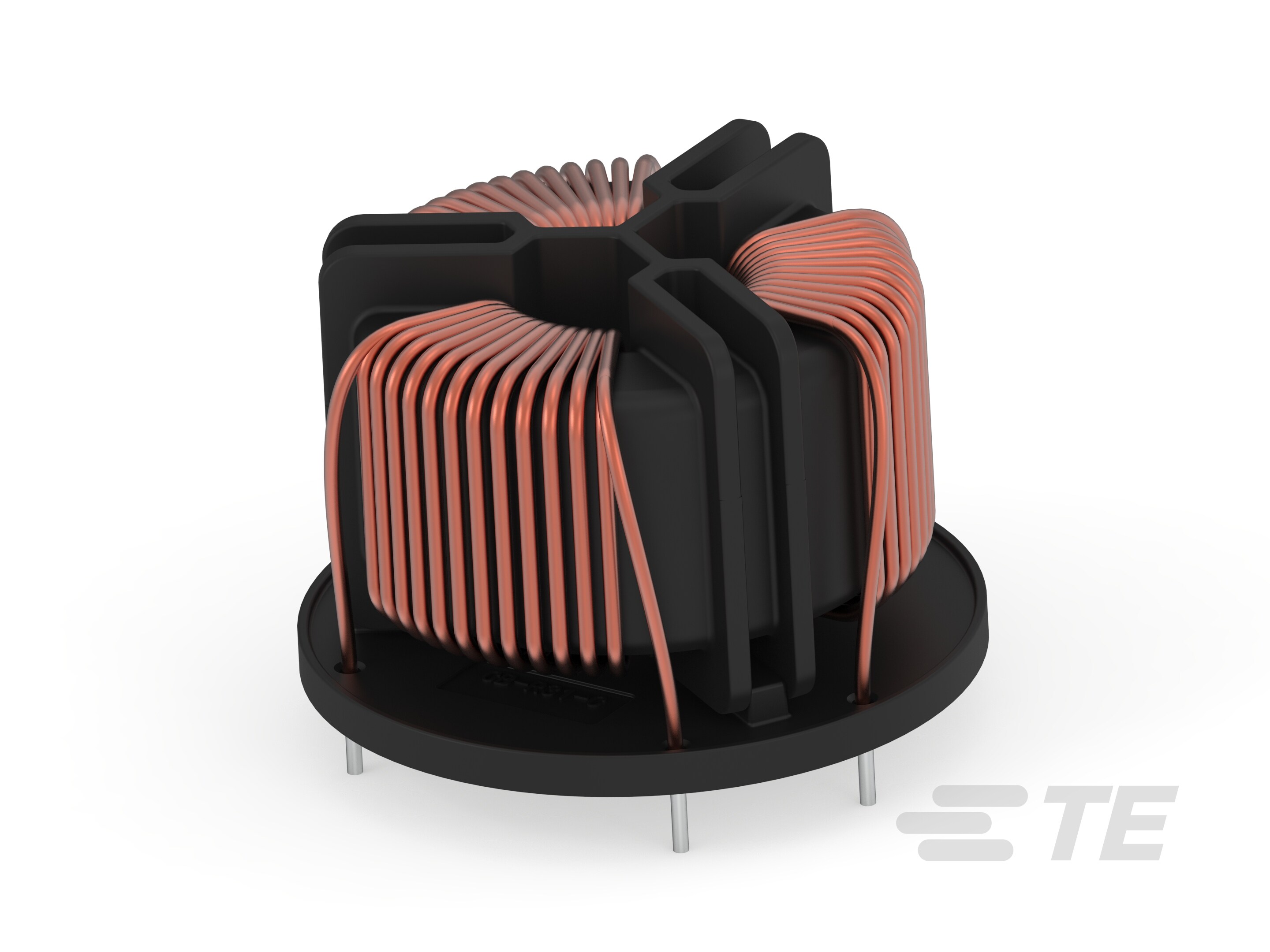

TE Connectivity AMP Connectors RT8132-6-6M0	3	Horizontal 6 PC Pin	-40 C	100 °C						600 V	Through Hole	Power Line			27 mOhm			6 mH 100 kHz		6 A		1.339 in	34 mm

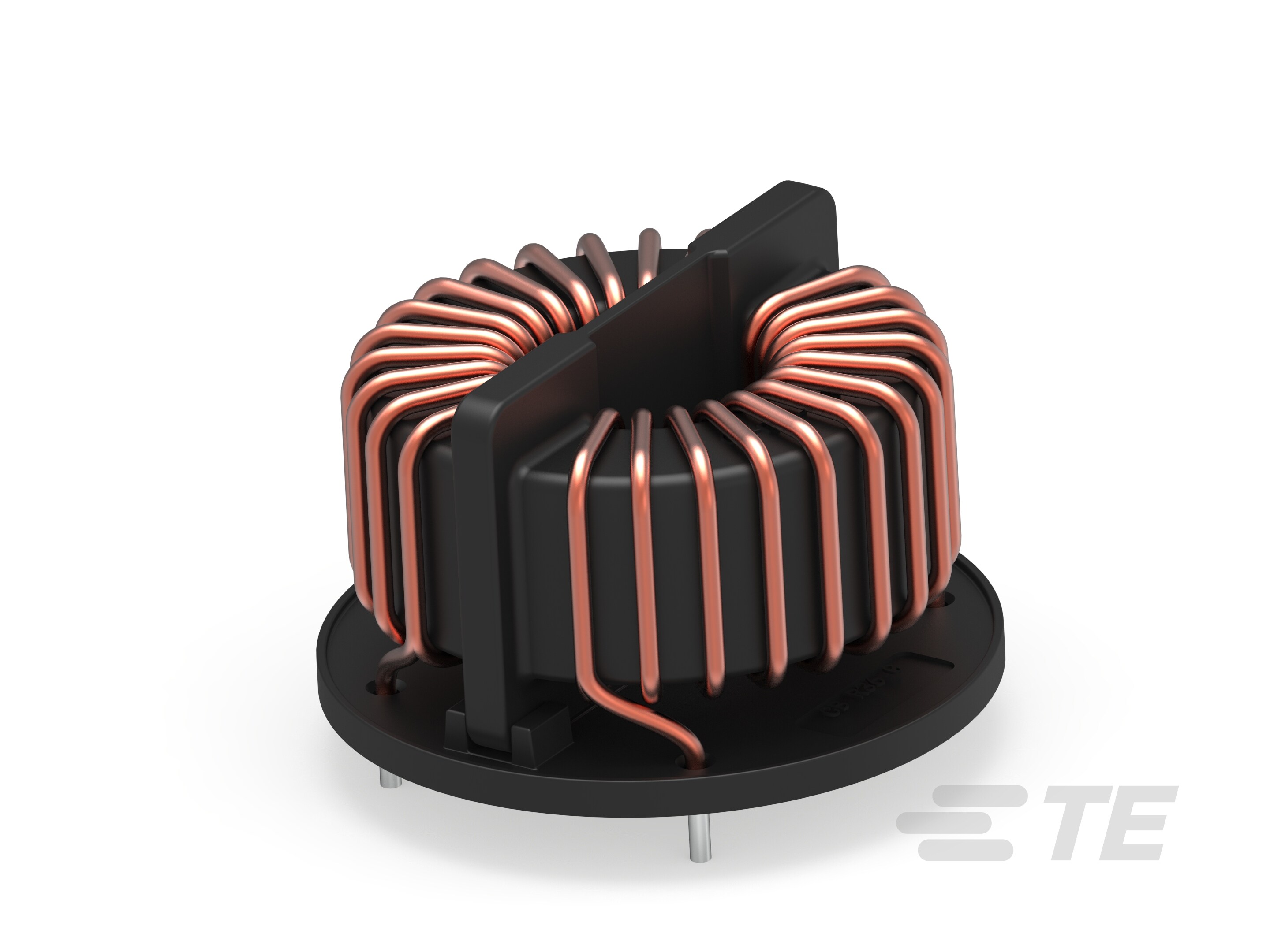

TE Connectivity AMP Connectors RT8122-12-5M0	2	4 PC Pin Horizontal	-40 C	100 °C						300 V	Through Hole	Power Line			14 mOhm		425 VDC	5 mH 100 kHz	1.299 in	12 A	33 mm			2.008 in	51 mm
TE Connectivity AMP Connectors RT8532-63-0M3	3	Vertical 10 PC Pin	-40 C	100 °C	0.8 mOhm	64 mm	42 mm	1.654 in	2.52 "	600 V	Through Hole	Power Line	2.638 in	67 mm
TE Connectivity AMP Connectors RT8122-50-1M0	2	8 PC Pin Horizontal	-40 C	100 °C						300 V	Through Hole	Power Line		41 mm	1.7 mOhm		425 VDC	1 mH						2.598 in	66 mm	1.614 in
TE Connectivity AMP Connectors RT8521-63-4M4	2	Vertical 4 PC Pin	-40 C	100 °C		64 mm	42 mm	1.654 in	2.52 "	300 V	Through Hole	Power Line		64 mm			600 V	4.4 mH 100 kHz	2.52 in	63 A							Nanocrystalline Core
TE Connectivity AMP Connectors RT8531-32-10M1	3	Vertical 6 PC Pin	-40 C	100 °C		60 mm	38 mm	1.496 in	2.362 in	600 V	Through Hole	Power Line						10.1 mH	2.48 in	32 A	63 mm						Nanocrystalline Core

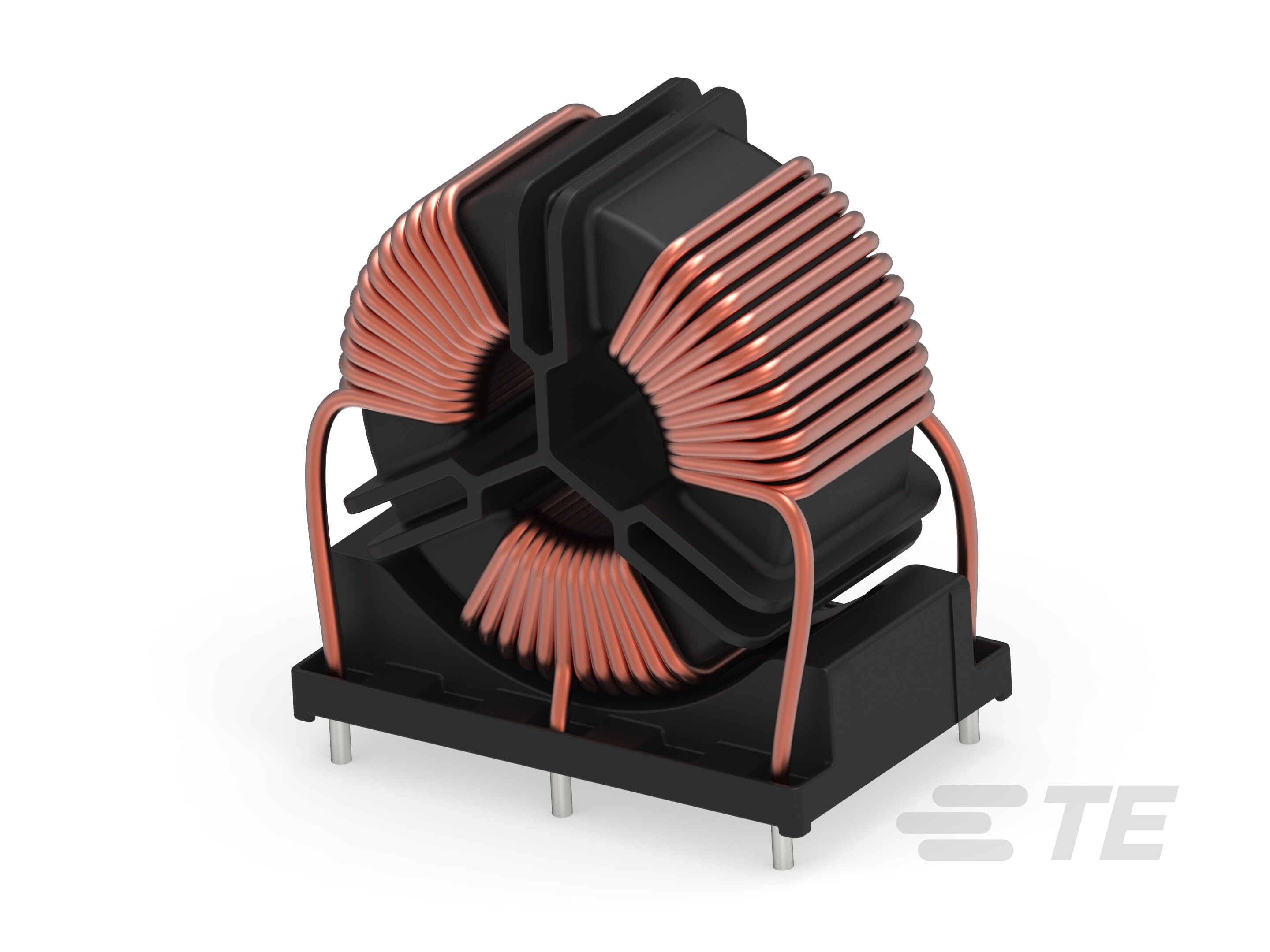

TE Connectivity AMP Connectors RT8532-20-2M5	3	Vertical 6 PC Pin	-40 C	100 °C		56 mm	37 mm	1.457 in	2.205 in	600 V	Through Hole	Power Line			7 mOhm			2.5 mH 100 kHz	2.362 in	20 A								60 mm
