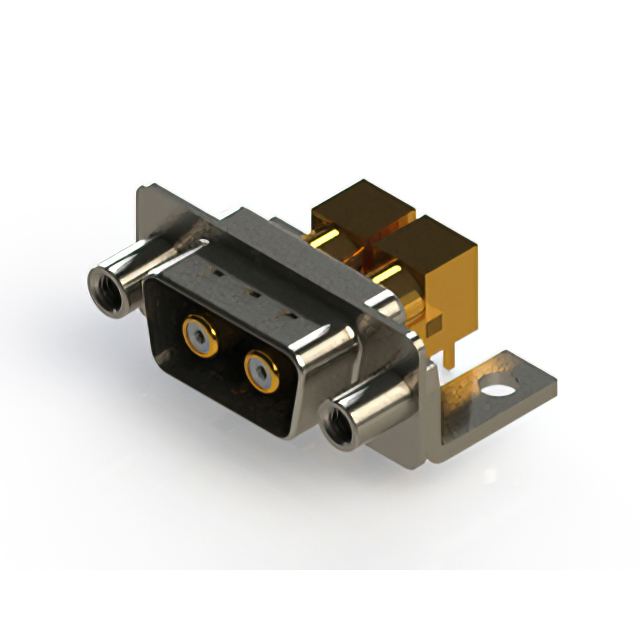

629-2W2 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN D-SUB PLUG 2POS R/A SLDR
| Part | Contact Material | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Voltage Rating | Contact Finish Thickness | Contact Finish Thickness | Shell Size, Connector Layout | Backset Spacing | Backset Spacing | Connector Type | Current Rating (Amps) | Contact Finish | Flange Feature | Material Flammability Rating | Mounting Type | Contact Type | Features | Number of Rows | Connector Style | Shell Material, Finish | Termination | Number of Positions | Flange Feature | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

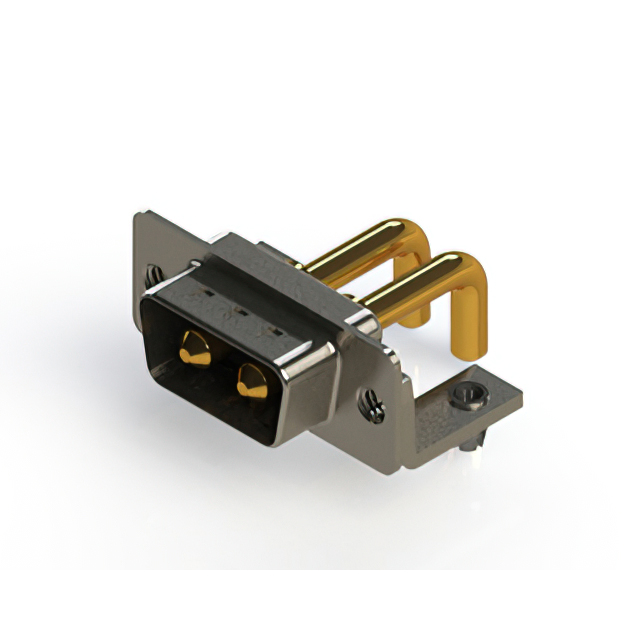

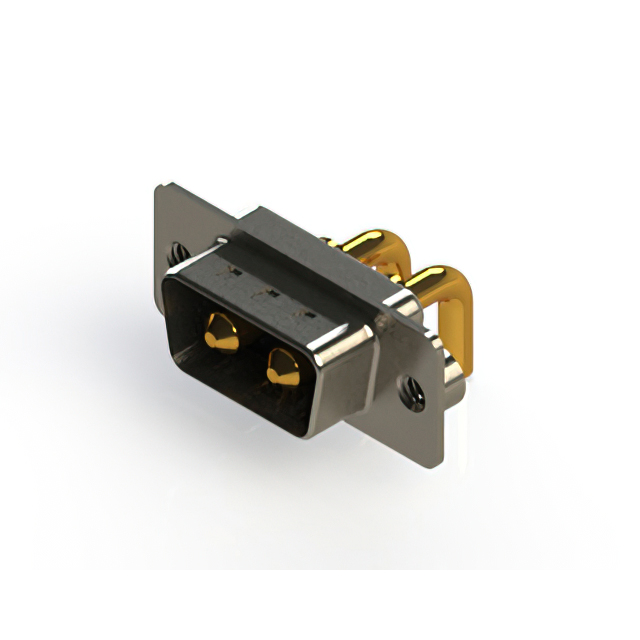

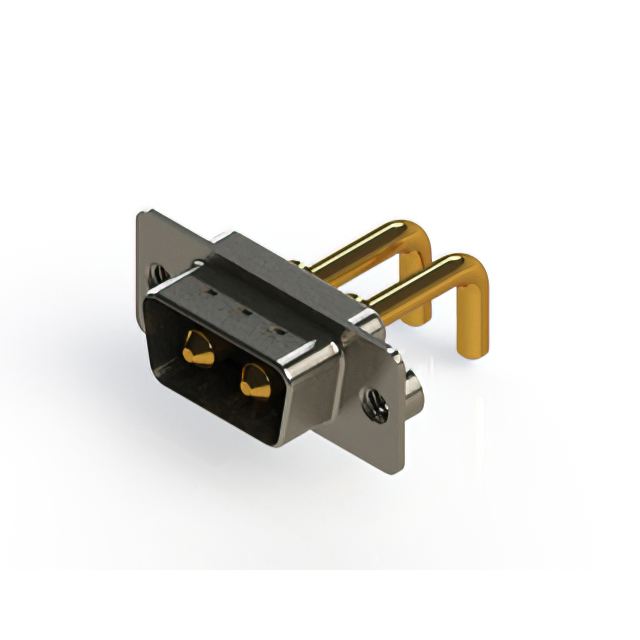

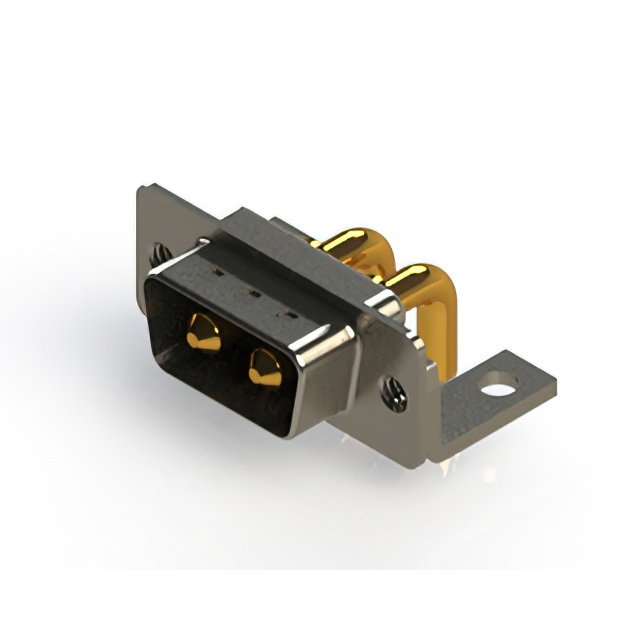

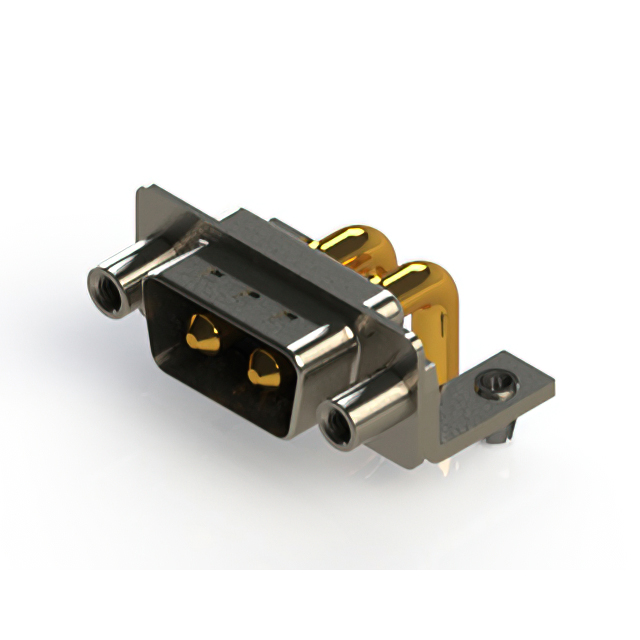

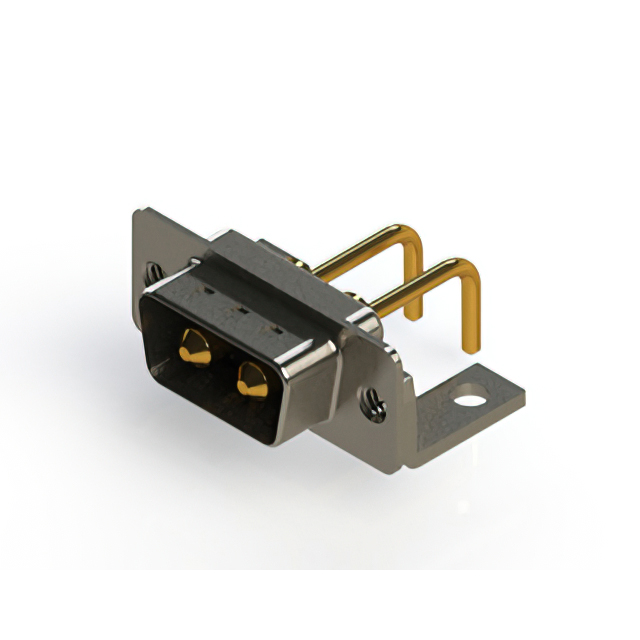

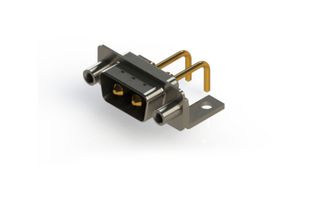

 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 125 VDC | 30 Áin | 0.76 Ám | 1 (DE E) 2V2 2W2 2W2C 2WK2 | 0.52 " | 13.2 mm | Plug Male Pins | 30 A | Gold | 4-40 | UL94 V-0 | Right Angle Through Hole | Power | Board Lock Grounding Indents | 1 | Combo D-Sub | Nickel Plated Steel | Solder | 2 | ||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 125 VDC | 30 Áin | 0.76 Ám | 1 (DE E) 2V2 2W2 2W2C 2WK2 | 0.52 " | 13.2 mm | Plug Male Pins | 30 A | Gold | Housing/Shell | UL94 V-0 | Right Angle Through Hole | Power | Board Lock Grounding Indents Mounting Brackets | 1 | Combo D-Sub | Nickel Plated Steel | Solder | 2 | 4-40 | |
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 125 VDC | 30 Áin | 0.76 Ám | 1 (DE E) 2V2 2W2 2W2C 2WK2 | 0.52 " | 13.2 mm | Plug Male Pins | 20 A | Gold | Housing/Shell | UL94 V-0 | Right Angle Through Hole | Power | 1 | Combo D-Sub | Solder | 2 | 4-40 | |||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 125 VDC | 30 Áin | 0.76 Ám | 1 (DE E) 2V2 2W2 2W2C 2WK2 | 0.52 " | 13.2 mm | Plug Male Pins | 30 A | Gold | Housing/Shell (M3) | UL94 V-0 | Right Angle Through Hole | Power | Board Lock Grounding Indents Mounting Brackets | 1 | Combo D-Sub | Solder | 2 | |||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 125 VDC | 30 Áin | 0.76 Ám | 1 (DE E) 2V2 2W2 2W2C 2WK2 | 0.52 " | 13.2 mm | Plug Male Pins | 30 A | Gold | Housing/Shell | UL94 V-0 | Right Angle Through Hole | Power | Grounding Indents Mounting Brackets | 1 | Combo D-Sub | Solder | 2 | 4-40 | ||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 125 VDC | 1 (DE E) 2V2 2W2 2W2C 2WK2 | 0.52 " | 13.2 mm | Plug Male Pins | 40 A | Gold | M3 | UL94 V-0 | Right Angle Through Hole | Power | Board Lock Grounding Indents Mounting Brackets | 1 | Combo D-Sub | Nickel Plated Steel | Solder | 2 | Flash | |||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 125 VDC | 30 Áin | 0.76 Ám | 1 (DE E) 2V2 2W2 2W2C 2WK2 | 0.52 " | 13.2 mm | Plug Male Pins | 20 A | Gold | M3 | UL94 V-0 | Right Angle Through Hole | Power | Board Lock Grounding Indents Mounting Brackets | 1 | Combo D-Sub | Nickel Plated Steel | Solder | 2 | ||

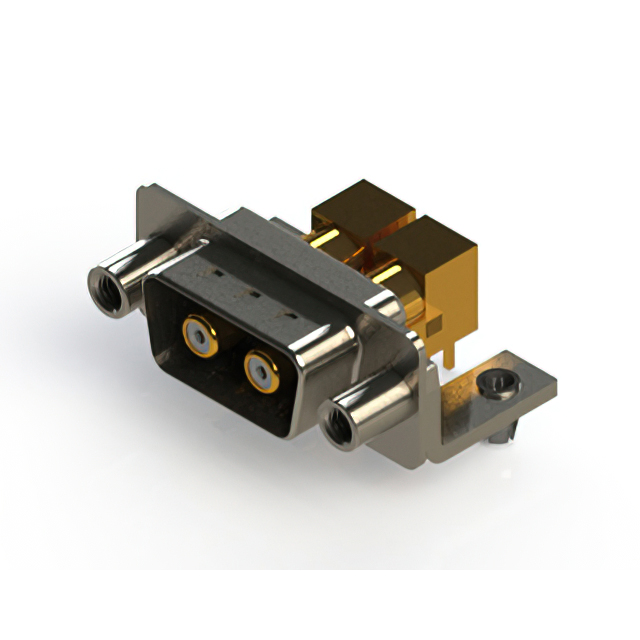

 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 125 VDC | 1 (DE E) 2V2 2W2 2W2C 2WK2 | 0.37 in | 9.4 mm | Plug Male Pins | Gold | M3 | UL94 V-0 | Right Angle Through Hole | Coax | Board Lock Grounding Indents Mounting Brackets | 1 | Combo D-Sub | Solder | 2 | Flash | |||||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 125 VDC | 1 (DE E) 2V2 2W2 2W2C 2WK2 | 0.52 " | 13.2 mm | Plug Male Pins | 10 A | Gold | 4-40 | UL94 V-0 | Right Angle Through Hole | Power | Board Lock Grounding Indents | 1 | Combo D-Sub | Nickel Plated Steel | Solder | 2 | Flash | |||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 125 VDC | 1 (DE E) 2V2 2W2 2W2C 2WK2 | 0.52 " | 13.2 mm | Plug Male Pins | 10 A | Gold | Housing/Shell (M3) | UL94 V-0 | Right Angle Through Hole | Power | Grounding Indents Mounting Brackets | 1 | Combo D-Sub | Nickel Plated Steel | Solder | 2 | Flash |
