FOR 0.635 MM AND UP TO 0.85 MM
| Part | Contact Finish Thickness - Mating | Operating Temperature (Max) | Operating Temperature (Min) | Contact Finish - Mating | Pitch - Mating | Current Rating | Contact Length - Post | Number of Rows | Connector Type | Insulation Height | Mounting Type | Number of Positions | Voltage Rating | Material Flammability Rating | Contact Finish - Post | Number of Positions Loaded | Termination | Contact Type | Contact Material | Number of Positions Loaded | Contact Finish Thickness - Post (Min) | Contact Finish Thickness - Post (Max) | Row Spacing - Mating | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

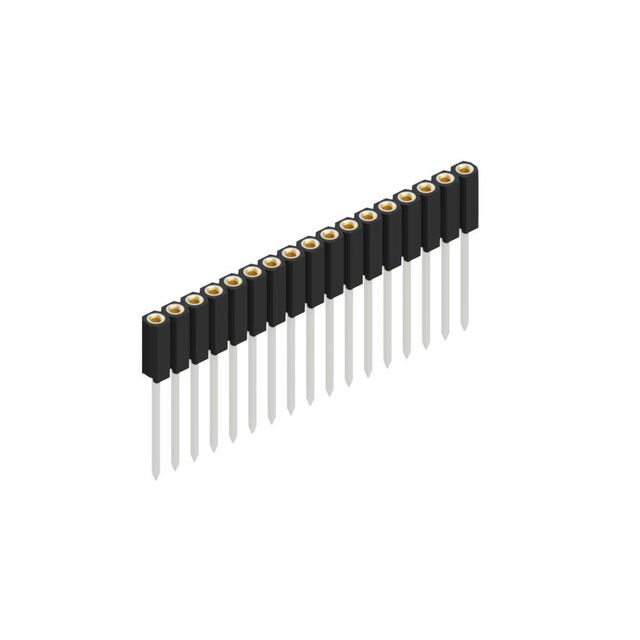

 Fischer Elektronik | 29.5 Ąin | 163 °C | -40 °C | Gold | 0.1 in | 3 A | 0.515 in | 1 | Header | 0.276 in | Through Hole | 17 | 150 VDC | UL94 V-0 | Tin | All | Solder | Female Socket Precision | Beryllium Copper | 17 | ||||

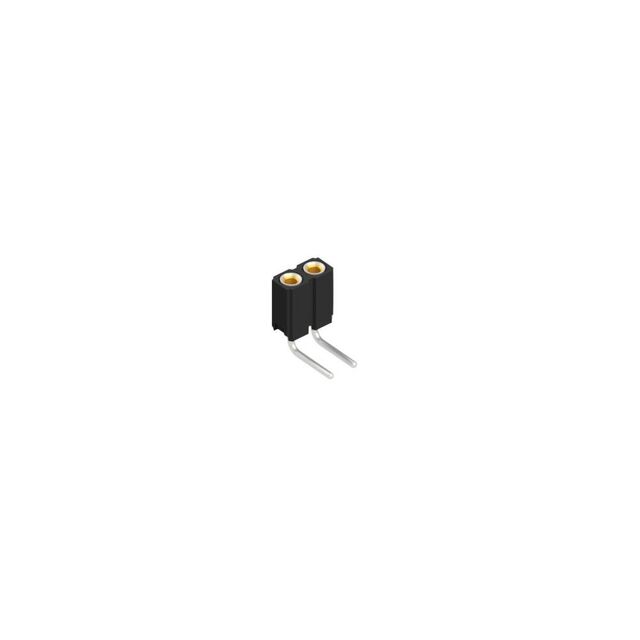

 Fischer Elektronik | 10 µin | 163 °C | -40 °C | Gold | 0.079 in | 2.5 A | 0.13 in | 1 | Header | 0.165 in | Through Hole | 2 | 100 VAC | UL94 V-0 | Tin | All | Solder | Female Socket Precision | Beryllium Copper | 2 | ||||
 Fischer Elektronik | 29.5 Ąin | 163 °C | -40 °C | Gold | 0.1 in | 3 A | 0.122 in | 1 | Header | 0.276 in | Through Hole | 2 | 150 VDC | UL94 V-0 | Tin | All | Solder | Female Socket Precision | Beryllium Copper | 2 | 157.5 µin | 236.2 µin | ||

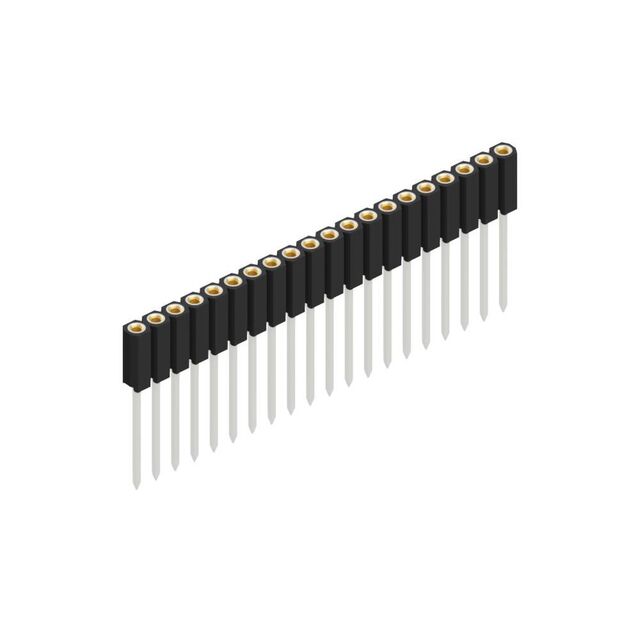

 Fischer Elektronik | 29.5 Ąin | 163 °C | -40 °C | Gold | 0.1 in | 3 A | 0.515 in | 1 | Header | 0.276 in | Through Hole | 20 | 150 VDC | UL94 V-0 | Tin | All | Solder | Female Socket Precision | Beryllium Copper | 20 | ||||

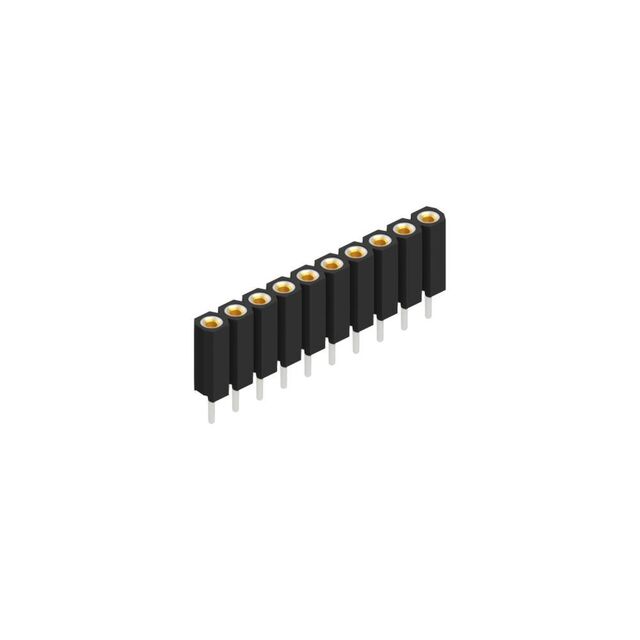

 Fischer Elektronik | 29.5 Ąin | 163 °C | -40 °C | Gold | 0.1 in | 3 A | 0.122 in | 1 | Header | 0.276 in | Through Hole | 10 | 150 VDC | UL94 V-0 | Tin | All | Solder | Female Socket Precision | Beryllium Copper | 10 | ||||

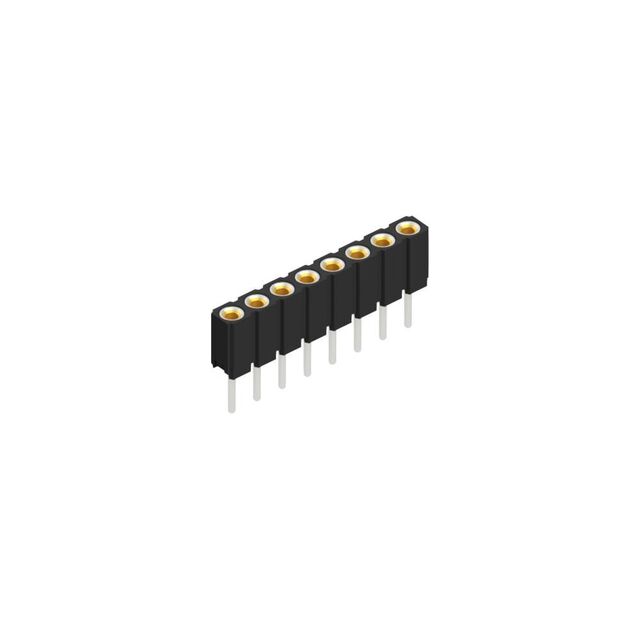

 Fischer Elektronik | 10 µin | 163 °C | -40 °C | Gold | 0.079 in | 2.5 A | 0.126 in | 1 | Header | 0.165 in | Through Hole | 8 | 100 VAC | UL94 V-0 | Tin | All | Solder | Female Socket Precision | Beryllium Copper | 8 | ||||

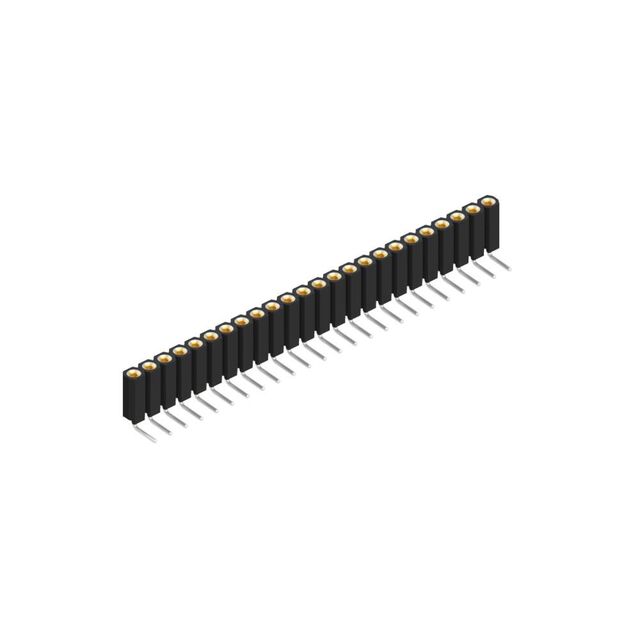

 Fischer Elektronik | 29.5 Ąin | 163 °C | -40 °C | Gold | 0.1 in | 3 A | 0.126 in | 1 | Header | 0.276 in | Through Hole | 24 pos | 150 VDC | UL94 V-0 | Tin | All | Solder | Female Socket Precision | Beryllium Copper | 24 | ||||

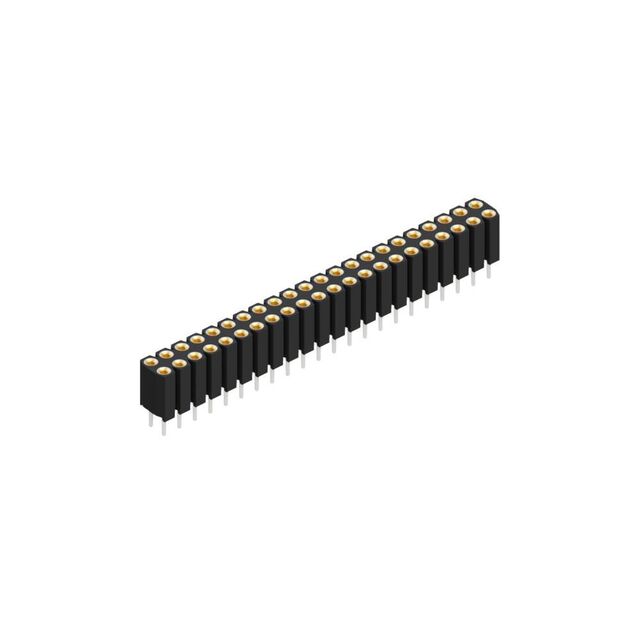

 Fischer Elektronik | 29.5 Ąin | 163 °C | -40 °C | Gold | 0.1 in | 3 A | 0.122 in | 2 | Header | 0.276 in | Through Hole | 44 | 150 VDC | UL94 V-0 | Tin | All | Solder | Precision | Beryllium Copper | 0.1 in | 157.5 Ąin | |||
 Fischer Elektronik | 29.5 Ąin | 163 °C | -40 °C | Gold | 0.1 in | 3 A | 0.122 in | 1 | Header | 0.276 in | Through Hole | 25 | 150 VDC | UL94 V-0 | Tin | All | Solder | Female Socket Precision | Beryllium Copper | 25 | ||||
 Fischer Elektronik | 29.5 Ąin | 163 °C | -40 °C | Gold | 0.1 in | 3 A | 0.126 in | 2 | Header | 0.276 in | Through Hole | 12 | 150 VDC | UL94 V-0 | Tin | All | Solder | Female Socket Precision | Beryllium Copper | 12 | 0.1 in |
