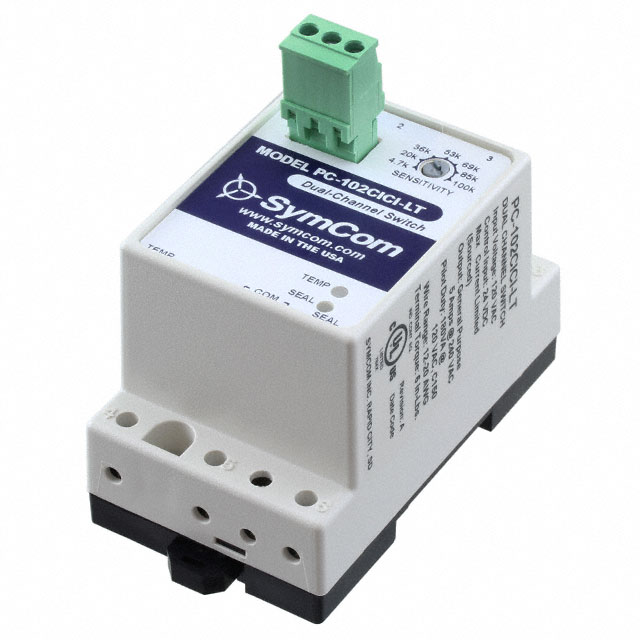

PC-102CICI-LT Series

2-CHANNEL LEAK/TEMP DETECTOR/1

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

2-CHANNEL LEAK/TEMP DETECTOR/1

Part	Contact Rating @ Voltage	Termination Style	Contact Form	Type	Sensitivity [Max]	Sensitivity [Min]	Mounting Type	Features	Voltage - Supply	Operating Temperature [Max]	Operating Temperature [Min]
Littelfuse/Commercial Vehicle Products PC-102CICI-LT	5 A 240 VAC	Screw Terminal	SPDT (1 Form C) x 2	Leak Detection	100 kOhm	4.7 kOhm	DIN Rail	Adjustable Sensitivity	120 VAC	55 °C	-20 C

Catalog

2-CHANNEL LEAK/TEMP DETECTOR/1

Description

PC-102CICI-LT is a seal-leak and over-temperature detector that uses one input to sense seal failures and the temperature input to detect motor overheating. This unit is configurable to suit various probes. Seal input logic (direct or inverted) and over-temperature trip reset (automatic or manual) is DIP-switch selectable. See datasheet for detailed technical characteristics.
