R16173 Series

Catalog

N / FEMALE-FEMALE BULKHEAD ADAPT

Part	Body Material	Center Contact Material	Dielectric Material	Mating Cycles	Insertion Loss	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Plating	Impedance	Mounting Type	Convert To (Adapter End)	Style	Convert From (Adapter End)	Center Gender	Adapter Type	Mounting Feature	Conversion Type	Frequency - Max [Max]	Adapter Series	Body Finish

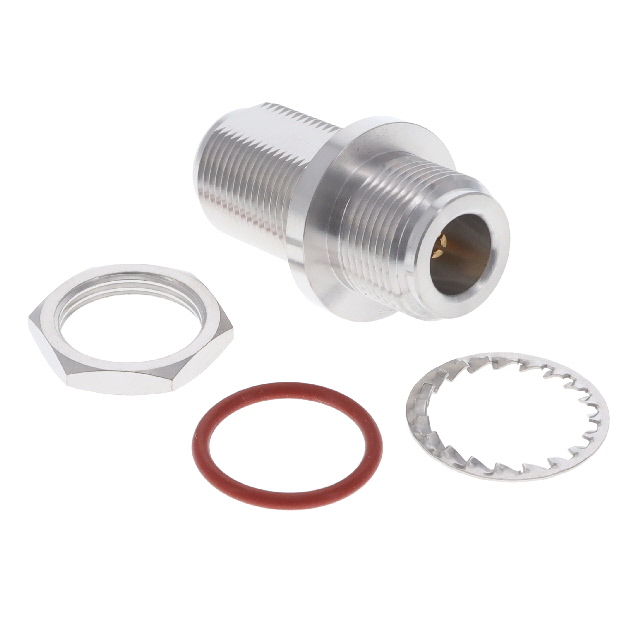

Radiall USA, Inc. R161730000W	Brass	Beryllium Copper	Polytetrafluoroethylene (PTFE)	500	0.15 dB	155 C	-55 C	Gold	50 Ohms	Panel Mount	N Jack Female Socket	Straight	Female Socket N Jack	Female to Female	Jack to Jack	Bulkhead	Same Series	11 GHz	N to N
Radiall USA, Inc. R161730000	Brass	Beryllium Copper	Polytetrafluoroethylene (PTFE)	500		155 C	-55 C	Gold	50 Ohms	Panel Mount	N Jack Female Socket	Straight	Female Socket N Jack	Female to Female	Jack to Jack	Bulkhead	Same Series	11 GHz	N to N	White Bronze
