R14207 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

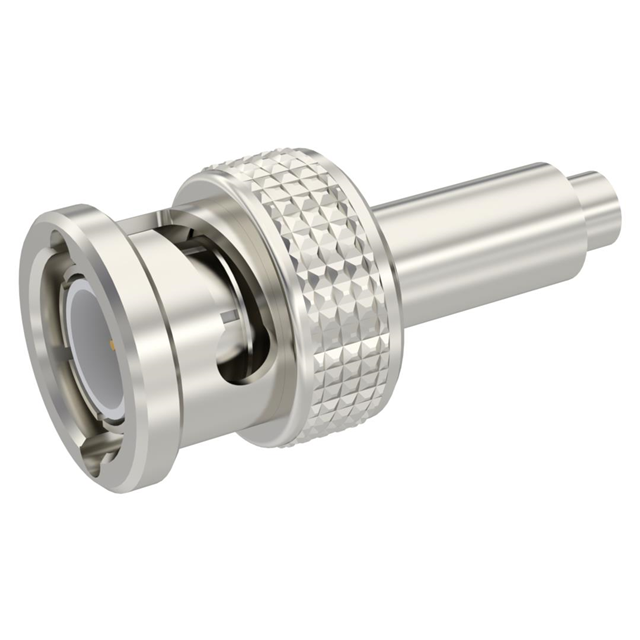

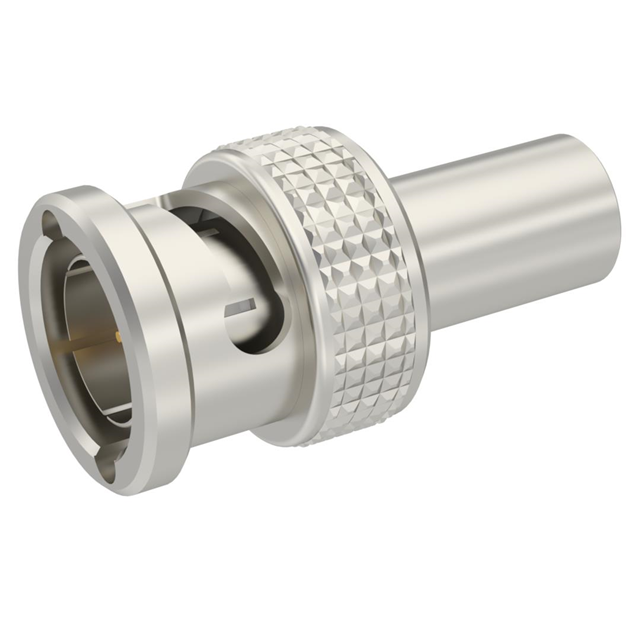

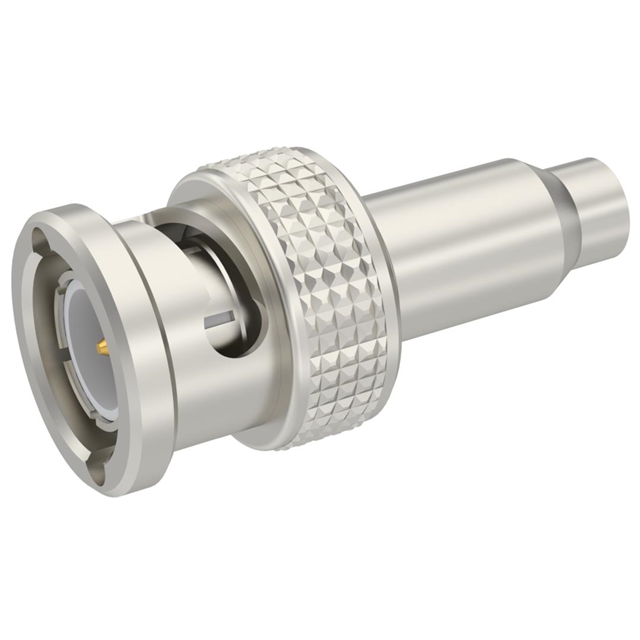

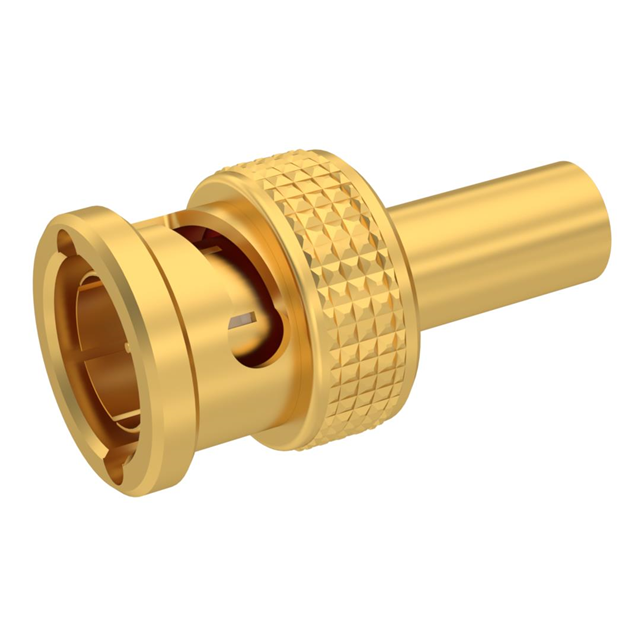

BNC 75 HDTV / STRAIGHT PLUG CRIM
| Part | Dielectric Material | Voltage Rating | Mating Cycles | Insertion Loss | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Center Contact Plating | Frequency - Max [Max] | Cable Group | Shield Termination | Fastening Type | Mounting Type | Connector Type | Impedance | Contact Termination | Number of Ports | Housing Color | Center Contact Material | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 500 V | 1000 | 0.2 dB | Gold | -65 ░C | 165 °C | Brass | Gold | 6000 MHz | RG-179 Belden 179DT | Crimp | Bayonet Lock | Free Hanging (In-Line) | Plug Male Pin | 75 Ohms | Crimp | 1 | Gold | Brass | BNC |
 Radiall USA, Inc. | Polypropylene (PP) | 500 V | 0.2 dB | Nickel | -35 °C | 70 °C | Brass | Gold | 1.5 GHz | Crimp | Bayonet Lock | Free Hanging (In-Line) | Plug Male Pin | 75 Ohms | Crimp | 1 | Silver | Brass | BNC | ||
 Radiall USA, Inc. | Polypropylene (PP) | 500 V | 0.2 dB | Nickel | -35 °C | 70 °C | Brass | Gold | 1.5 GHz | Crimp | Bayonet Lock | Free Hanging (In-Line) | Plug Male Pin | 75 Ohms | Crimp | 1 | Silver | Brass | BNC | ||
Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 500 V | 1000 | 0.2 dB | Gold | -65 ░C | 165 °C | Brass | Gold | 6000 MHz | Belden 1694A RG-6 | Crimp | Bayonet Lock | Free Hanging (In-Line) | Plug Male Pin | 75 Ohms | Crimp | 1 | Gold | Brass | BNC |
Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 500 V | 1000 | 0.2 dB | Gold | -65 ░C | 165 °C | Brass | Gold | 6000 MHz | Belden 1505A RG-59 | Crimp | Bayonet Lock | Free Hanging (In-Line) | Plug Male Pin | 75 Ohms | Crimp | 1 | Gold | Brass | BNC |
Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 500 V | 1000 | 0.2 dB | Gold | -65 ░C | 165 °C | Brass | Gold | 6000 MHz | Belden 1855A RG-59 | Crimp | Bayonet Lock | Free Hanging (In-Line) | Plug Male Pin | 75 Ohms | Crimp | 1 | Gold | Brass | BNC |
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 335 V | 0.2 dB | Nickel | -35 °C | 70 °C | Brass | Gold | 3 GHz | 187 RG-179 | Crimp | Bayonet Lock | Free Hanging (In-Line) | Plug Male Pin | 75 Ohms | Crimp | 1 | Silver | Brass | BNC | |
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 500 V | 1000 | 0.2 dB | Gold | -65 ░C | 165 °C | Brass | Gold | 6000 MHz | Belden 1855A RG-59 | Crimp | Bayonet Lock | Free Hanging (In-Line) | Plug Male Pin | 75 Ohms | Crimp | 1 | Gold | Brass | BNC |
Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 335 V | 500 | Nickel | -65 ░C | 165 °C | Brass | Gold | 1.5 GHz | RG-179 | Crimp | Bayonet Lock | Free Hanging (In-Line) | Plug Male Pin | 75 Ohms | Crimp | 1 | Silver | Brass | BNC | |
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 500 V | 1000 | 0.2 dB | Gold | -65 ░C | 165 °C | Brass | Gold | 6000 MHz | Belden 1505A RG-59 | Crimp | Bayonet Lock | Free Hanging (In-Line) | Plug Male Pin | 75 Ohms | Crimp | 1 | Gold | Brass | BNC |
