316-015 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 30POS 0.156

Part	Material - Insulation	Termination Rows	Number of Rows [custom]	Number of Positions	Mounting Type	Contact Type	Contact Material	Color	Number of Positions/Bay/Row	Operating Temperature [Min]	Operating Temperature [Max]	Features	Contact Finish	Gender	Card Thickness [Max]	Card Thickness [Min]	Read Out	Flange Feature	Termination	Card Type	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 316-015-420-168	Polyester Thermoplastic	1	2	30	Panel Mount Through Hole	Cantilever	Copper Alloy	Green	15	-40 C	105 ░C	Card Guides	Tin	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	4-40 Flush Mount Threaded Insert Top Opening	Solder	Non Specified - Dual Edge	3.96 mm	0.156 in
EDAC Inc. 316-015-500-158	Polyester Thermoplastic	1	2	30	Panel Mount	Cantilever	Copper Alloy	Green	15	-40 C	105 ░C	Card Guides	Gold	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	4-40 Flush Mount Threaded Insert Top Opening	Solder Eyelet(s)	Non Specified - Dual Edge	3.96 mm	0.156 in	0.25 Ám	10 Áin
EDAC Inc. 316-015-520-112	Polyester Thermoplastic	1	2	30	Panel Mount Through Hole	Cantilever	Copper Alloy	Green	15	-40 C	105 ░C		Gold	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Flush Mount Side Opening Unthreaded	Solder	Non Specified - Dual Edge	3.96 mm	0.156 in	0.25 Ám	10 Áin	0.128 "	3.25 mm
EDAC Inc. 316-015-520-104	Polyester Thermoplastic	1	2	30	Through Hole	Cantilever	Copper Alloy	Green	15	-40 C	105 ░C		Gold	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Flush Mount Top Opening Unthreaded	Solder	Non Specified - Dual Edge	3.96 mm	0.156 in	0.25 Ám	10 Áin	0.156 "	3.96 mm
EDAC Inc. 316-015-421-158	Polyester Thermoplastic	1	2	30	Panel Mount Through Hole	Cantilever	Copper Alloy	Green	15	-40 C	105 ░C	Card Guides	Tin	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	4-40 Flush Mount Threaded Insert Top Opening	Solder	Non Specified - Dual Edge	3.96 mm	0.156 in
EDAC Inc. 316-015-421-112	Polyester Thermoplastic	1	2	30	Panel Mount Through Hole	Cantilever	Copper Alloy	Green	15	-40 C	105 ░C		Tin	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Flush Mount Side Opening Unthreaded	Solder	Non Specified - Dual Edge	3.96 mm	0.156 in			0.128 "	3.25 mm
EDAC Inc. 316-015-500-112	Polyester Thermoplastic	1	2	30	Panel Mount	Cantilever	Copper Alloy	Green	15	-40 C	105 ░C		Gold	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Flush Mount Side Opening Unthreaded	Solder Eyelet(s)	Non Specified - Dual Edge	3.96 mm	0.156 in	0.25 Ám	10 Áin	0.128 "	3.25 mm
EDAC Inc. 316-015-421-178	Polyester Thermoplastic	1	2	30	Panel Mount Through Hole	Cantilever	Copper Alloy	Green	15	-40 C	105 ░C	Card Guides	Tin	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	4-40 Flush Mount Threaded Insert Top Opening	Solder	Non Specified - Dual Edge	3.96 mm	0.156 in
EDAC Inc. 316-015-400-101	Polyester Thermoplastic	1	2	30	Free Hanging (In-Line)	Cantilever	Copper Alloy	Green	15	-40 C	105 ░C		Tin	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual		Solder Eyelet(s)	Non Specified - Dual Edge	3.96 mm	0.156 in

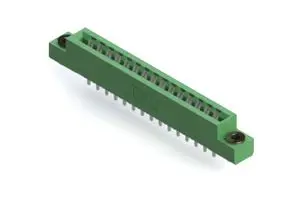

EDAC Inc. 316-015-420-103	Polyester Thermoplastic	1	2	30	Panel Mount Through Hole	Cantilever	Copper Alloy	Green	15	-40 C	105 ░C		Tin	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Floating Bobbin Flush Mount	Solder	Non Specified - Dual Edge	3.96 mm	0.156 in			0.116 "	2.95 mm
