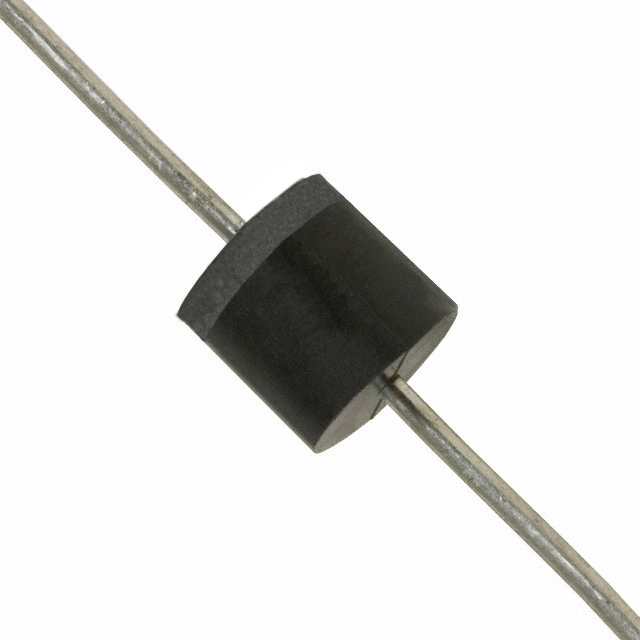

TVS AXIAL HI-POWER 5KW AEQ101 T&R
Description
AI
The TP5KP Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events
Beta
⌘K
TVS AXIAL HI-POWER 5KW AEQ101 T&R
TVS AXIAL HI-POWER 5KW AEQ101 T&R
| Part | Voltage - Breakdown (Min) [Min] | Package / Case | Unidirectional Channels [custom] | Grade | Power Line Protection | Mounting Type | Supplier Device Package | Type | Power - Peak Pulse | Power - Peak Pulse | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Reverse Standoff (Typ) | Qualification | Voltage - Clamping (Max) @ Ipp [Max] | Current - Peak Pulse (10/1000µs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LITTELFUSE | 66.7 V | P600 Axial | 1 | Automotive | Through Hole | P600 | Zener | 5 kW | 5000 W | 150 °C | -55 °C | 60 V | AEC-Q101 | 96.8 V | 52.7 A |
