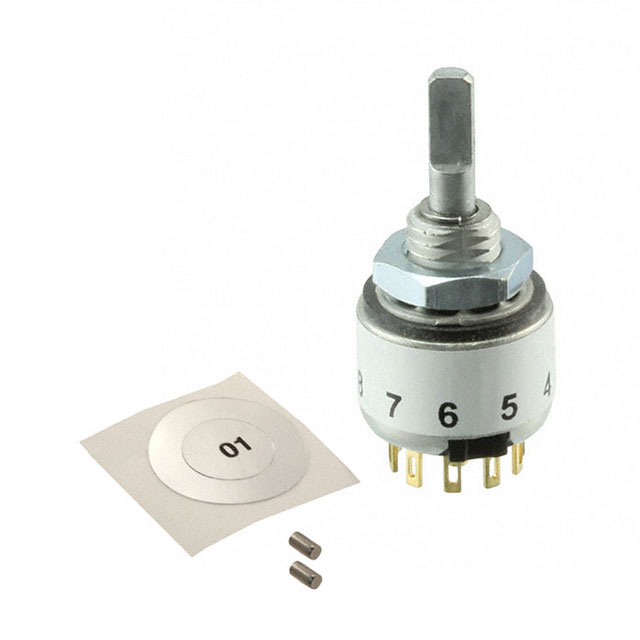

56SD36 Series
Manufacturer: Grayhill Inc.
Beta
⌘K
SWITCH ROTARY 2-10POS 200MA 115V
| Part | Features | Angle of Throw | Termination Style | Index Stops | Number of Poles per Deck | Current Rating (Amps) | Voltage Rating - AC | Contact Finish | Contact Material | Circuit per Deck | Mounting Type | Contact Timing | Depth Behind Panel [z] | Actuator Length [x] | Number of Decks [custom] | Actuator Type | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | Shaft and Panel Sealed | 36 ° | Solder Lug | Adjustable | 1 | 200 mA | 115 V | Silver | Brass | SP10T | Panel Mount | Shorting (MBB) | 12.19 mm | 9.53 mm | 1 | Flatted (3.17mm Dia) | 30 V |
 Grayhill Inc. | Shaft and Panel Sealed | 36 ° | Solder Lug | Adjustable | 1 | 200 mA | 115 V | Silver | Brass | SP10T | Panel Mount | Non-Shorting (BBM) | 12.19 mm | 9.53 mm | 1 | Flatted (3.17mm Dia) | 30 V |
