6THC Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K

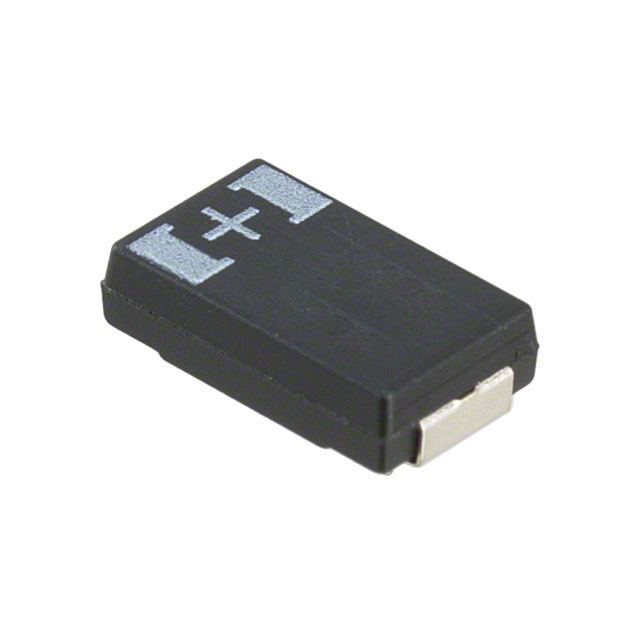

CAP TANT POLY 150UF 6.3V 2917
| Part | ESR (Equivalent Series Resistance) | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Features | Capacitance | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Operating Temperature [Min] | Operating Temperature [Max] | Lifetime @ Temp. | Type | Mounting Type | Manufacturer Size Code | Package / Case | Voltage - Rated | Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 40 mOhm | 0.079 in | 2 mm | General Purpose | 150 µF | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | -55 C | 125 °C | 1000 Hrs | Molded | Surface Mount | D2 | 2917 (7343 Metric) | 6.3 VDC | 20 % |
