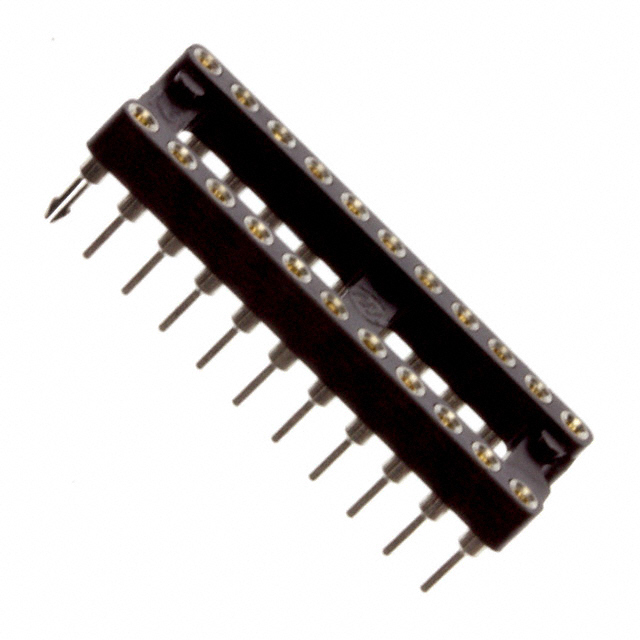

101-93 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
SKT IC
| Part | Current Rating (Amps) | Termination Post Length | Termination Post Length | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Pitch - Post | Pitch - Post | Termination | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Contact Finish - Mating | Type [custom] | Type [custom] | Type | Housing Material | Contact Material - Mating | Contact Material - Post | Number of Positions or Pins (Grid) [y] | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [x] | Features | Contact Finish - Post | Number of Positions or Pins (Grid) | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 3 A | 0.125 in | 3.18 mm | 200 µin | 5.08 µm | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | Solder | 0.1 " | 2.54 mm | -55 C | 125 °C | Through Hole | Gold | 15.24 mm | 0.6 in | DIP | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Beryllium Copper | Brass Alloy | 2 | 48 | 24 | Open Frame | Tin-Lead | ||
 Mill-Max Manufacturing Corp. | 3 A | 0.125 in | 3.18 mm | 200 µin | 5.08 µm | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | Solder | 0.1 " | 2.54 mm | -55 C | 125 °C | Through Hole | Gold | DIP | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Beryllium Copper | Brass Alloy | 11 | 2 | Open Frame | Tin-Lead | 22 | 0.4 in |
