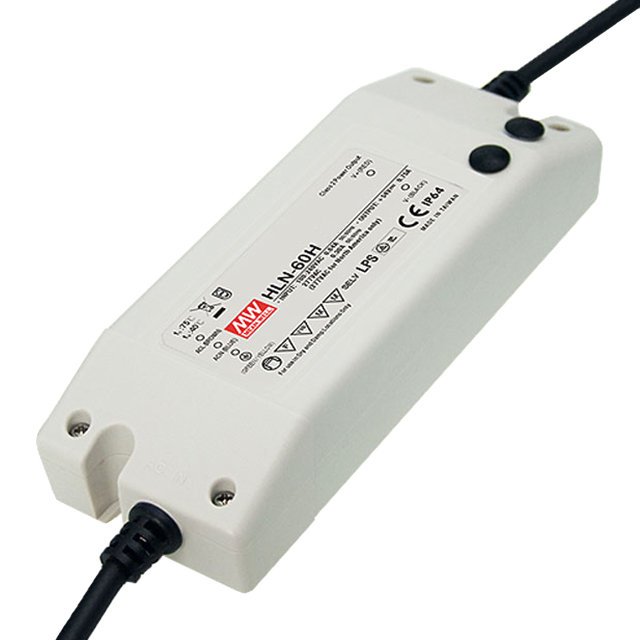

HLN-60H Series

Catalog

LED DRVR CC/CV AC/DC 20V 3A

Part	Mounting Type	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Termination Style	Efficiency	Approval Agency	Dimming	Ratings	Voltage - Output	Voltage - Input (Min) [Min]	Features	Topology	Voltage - Isolation	Number of Outputs	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Type
MEAN WELL USA Inc. HLN-60H-20B	Chassis Mount	3 A	305 VAC	Wire Leads	88.5 %	CB CE PSE TUV	Analog PWM	IP64	20 V	90 VAC	OCP OTP OVP SCP	AC DC Converter	3750 VDC	1	6.34 in	35 mm	2.42 in	161 mm	1.38 in	61.5 mm	-40 C	50 °C	60 W	Constant Current Voltage
MEAN WELL USA Inc. HLN-60H-30A	Chassis Mount	2 A	305 VAC	Wire Leads		CB CE PSE TUV	PWM	IP64	30 V	90 VAC	OCP OTP OVP SCP	AC DC Converter	3750 VDC	1	6.34 in	35 mm	2.42 in	161 mm	1.38 in	61.5 mm	-40 C	50 °C	60 W	Constant Current Voltage
MEAN WELL USA Inc. HLN-60H-24B	Chassis Mount	2.5 A	305 VAC	Wire Leads	89 %	CB CE PSE TUV	Analog PWM	IP64	24 V	90 VAC	OCP OTP OVP SCP	AC DC Converter	3750 VDC	1	6.34 in	35 mm	2.42 in	161 mm	1.38 in	61.5 mm	-40 C	50 °C	60 W	Constant Current Voltage
MEAN WELL USA Inc. HLN-60H-24A	Chassis Mount	2.5 A	305 VAC	Wire Leads	89 %	CB CE PSE TUV	PWM	IP64	24 V	90 VAC	OCP OTP OVP SCP	AC DC Converter	3750 VDC	1	6.34 in	35 mm	2.42 in	161 mm	1.38 in	61.5 mm	-40 C	50 °C	60 W	Constant Current Voltage
MEAN WELL USA Inc. HLN-60H-54B	Chassis Mount	1.15 A	305 VAC	Wire Leads	90.5 %		Analog PWM	IP64	54 V	90 VAC	OCP OTP OVP SCP	AC DC Converter	3750 VDC	1	6.34 in	35 mm	2.42 in	161 mm	1.38 in	61.5 mm	-40 C	50 °C	60 W	Constant Current Voltage
MEAN WELL USA Inc. HLN-60H-42B	Chassis Mount	1.45 A	305 VAC	Wire Leads	90 %	CB CE PSE TUV	Analog PWM	IP64	42 V	90 VAC	OCP OTP OVP SCP	AC DC Converter	3750 VDC	1	6.34 in	35 mm	2.42 in	161 mm	1.38 in	61.5 mm	-40 C	50 °C	60 W	Constant Current Voltage
MEAN WELL USA Inc. HLN-60H-15B	Chassis Mount	4 A	305 VAC	Wire Leads	87 %	CB CE PSE TUV	Analog PWM	IP64	15 V	90 VAC	OCP OTP OVP SCP	AC DC Converter	3750 VDC	1	6.34 in	35 mm	2.42 in	161 mm	1.38 in	61.5 mm	-40 C	50 °C	60 W	Constant Current Voltage
MEAN WELL USA Inc. HLN-60H-20A	Chassis Mount	3 A	305 VAC	Wire Leads	88.5 %	CB CE PSE TUV	PWM	IP64	20 V	90 VAC	OCP OTP OVP SCP	AC DC Converter	3750 VDC	1	6.34 in	35 mm	2.42 in	161 mm	1.38 in	61.5 mm	-40 C	50 °C	60 W	Constant Current Voltage
MEAN WELL USA Inc. HLN-60H-48A	Chassis Mount	1.3 A	305 VAC	Wire Leads	90.5 %		PWM	IP64	48 V	90 VAC	OCP OTP OVP SCP	AC DC Converter	3750 VDC	1	6.34 in	35 mm	2.42 in	161 mm	1.38 in	61.5 mm	-40 C	50 °C	60 W	Constant Current Voltage
MEAN WELL USA Inc. HLN-60H-15A	Chassis Mount	4 A	305 VAC	Wire Leads	87 %	CB CE PSE TUV	PWM	IP64	15 V	90 VAC	OCP OTP OVP SCP	AC DC Converter	3750 VDC	1	6.34 in	35 mm	2.42 in	161 mm	1.38 in	61.5 mm	-40 C	50 °C	60 W	Constant Current Voltage
