FR02FC16 Series

Catalog

ROTARY SWITCH, 16 POSITION, 1 POLE

Part	Electrical Life	Length [x]	Length [x]	Mechanical Life	Body Material	Actuator Type	Termination Style	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Pitch	Pitch	Circuit	Contact Material	Contact Finish	Number of Positions	Washable	Mounting Type	Voltage Rating	Height Above Board [z]	Height Above Board [z]	Actuator Level

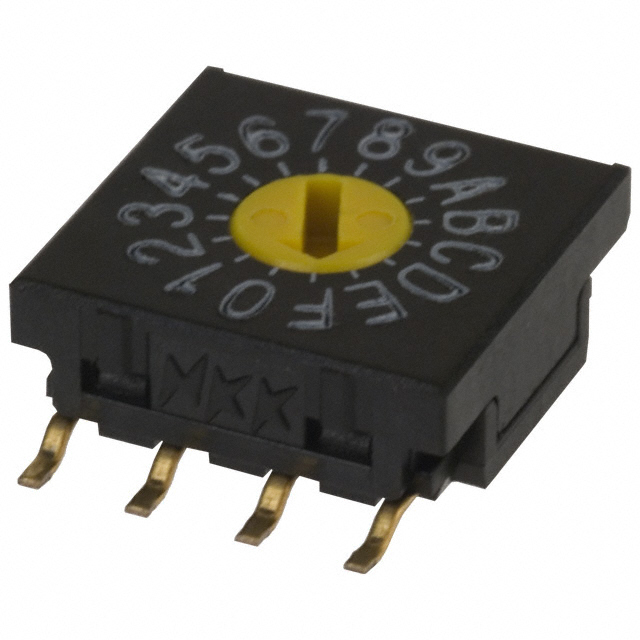

NKK Switches FR02FC16P-R	10000 Cycles	0.394 in	10 mm	10000 Steps	Polyamide (PA) Nylon Glass Filled	Rotary for Tool	Gull Wing	100 mA	85 °C	-25 °C	2.54 mm	0.1 "	Hexadecimal Complement	Copper Alloy	Gold	16		Surface Mount	5 V	0.154 in	3.9 mm	Flush Recessed
NKK Switches FR02FC16P	10000 Cycles	0.394 in	10 mm	10000 Steps	Polyamide (PA) Nylon Glass Filled	Rotary for Tool	Gull Wing	100 mA	85 °C	-25 °C	2.54 mm	0.1 "	Hexadecimal Complement	Copper Alloy	Gold	16		Surface Mount	5 V	0.154 in	3.9 mm	Flush Recessed
