25362/1 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

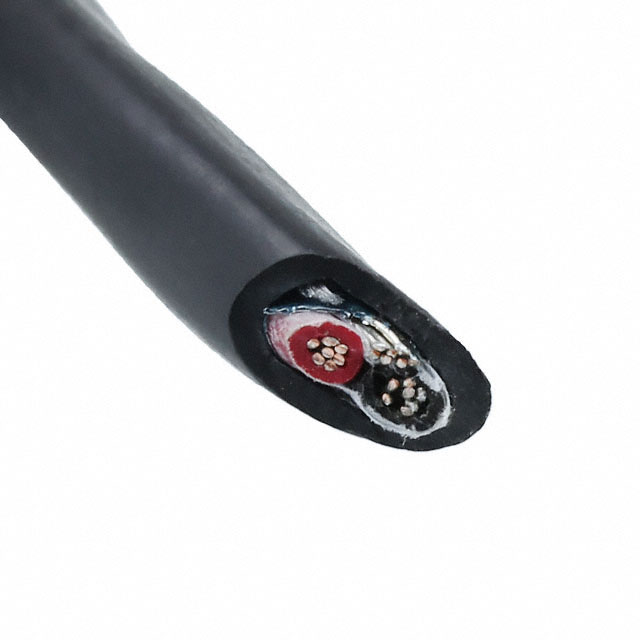

CABLE 2COND 16AWG BLK SHLD 1000'
| Part | Shield Material | Shield Coverage | Conductor Strand [custom] | Conductor Strand [diameter] | Ratings | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Material | Jacket (Insulation) Material | Number of Conductors | Jacket Color | Cable Type | Shield Type | Wire Gauge | Voltage | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | 19 | 0.0117 in | ISO 10993 UL Style 20668 | -30 ░C | 90 °C | Copper Tinned | Polyurethane (PU) | 2 | Black | Multi-Conductor | Foil | 16 AWG | 300 VDC | Biological Compatibility Drain Wire Rip Cord | 0.254 in | 6.45 mm | 304.8 m | 1000 ft | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | ||
 ALPHA WIRE | Aluminum | 100 % | 19 | 0.0117 in | ISO 10993 UL Style 20668 | -30 ░C | 90 °C | Copper Tinned | Polyurethane (PU) | 2 | Black | Multi-Conductor | Foil | 16 AWG | 300 VDC | Biological Compatibility Drain Wire Rip Cord | 0.254 in | 6.45 mm | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | 100 ft | 30.5 m |
