M24308/2 Series

Catalog

D-SUB MIL SPEC CONNECTORS SOCKET CONTACT,CRIMP CADMIUM

Part	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Features	Number of Positions	Contact Type	Flange Feature	Connector Style	Shell Material, Finish [custom]	Shell Material, Finish [custom]	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Termination	Shell Size, Connector Layout	Shell Size, Connector Layout	Current Rating (Amps)	Mounting Type	Contact Finish	Note	Mating Cycles	Shell Material, Finish	Color	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]
ITT Cannon, LLC M24308/2-362F

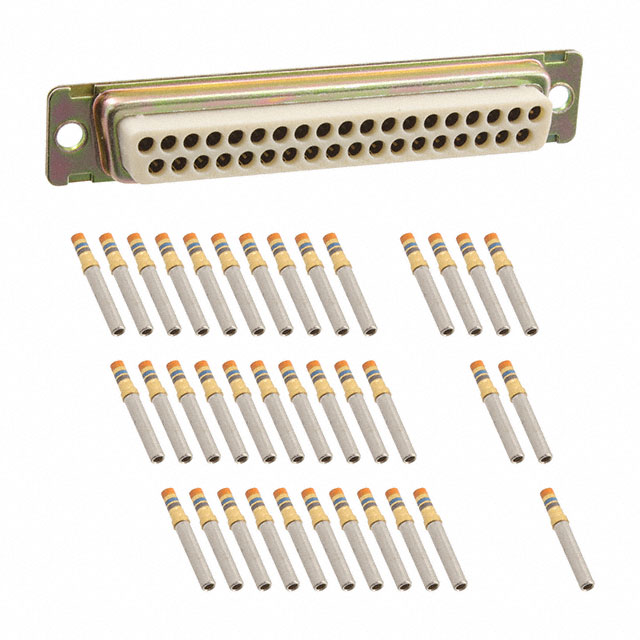

ITT Cannon, LLC M24308/2-4Z	Thermoplastic	-55 C	150 °C	Receptacle Female Sockets	Shielded	37	Signal	Housing/Shell (Unthreaded)	D-Sub	Yellow Chromate Plated Zinc	Steel	50 µin	1.27 µm	2	Crimp	4	DC C	7.5 A	Panel Mount	Gold

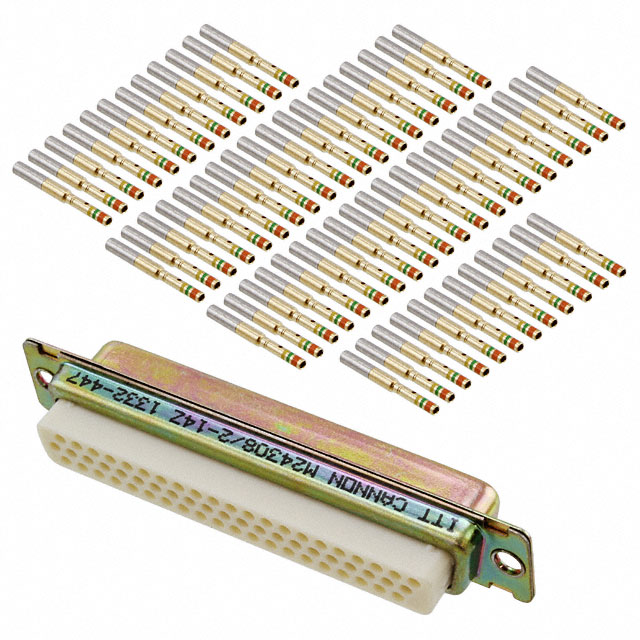

ITT Cannon, LLC M24308/2-14Z	Thermoplastic	-55 C	150 °C	Receptacle Female Sockets	Shielded	62	Signal	Housing/Shell (Unthreaded)	D-Sub High Density	Yellow Chromate Plated Zinc	Steel	50 µin	1.27 µm	3	Crimp	4	C DC	7.5 A	Panel Mount	Gold
ITT Cannon, LLC M24308/2-284F	Thermoplastic	-55 C	150 °C	Receptacle for Female Contacts		37	Signal	Housing/Shell (Unthreaded)	D-Sub					2		4	DC C		Free Hanging (In-Line)		Contacts Not Included	500	Steel Yellow Chromate Plated Cadmium
ITT Cannon, LLC M24308/2-491F	Thermoplastic	-55 C	125 °C	Receptacle for Female Contacts		78	Signal	Housing/Shell (Unthreaded)	D-Sub High Density										Free Hanging (In-Line) Panel Mount		Contacts Not Included	500	Steel Yellow Chromate Plated Cadmium	Black
ITT Cannon, LLC M24308/2-491Z	Thermoplastic	-55 C	150 °C	Receptacle for Female Contacts		78	Signal	Housing/Shell (Unthreaded)	D-Sub High Density	Yellow Chromate Plated Zinc	Steel								Free Hanging (In-Line)		Contacts Not Included	500
ITT Cannon, LLC M24308/2-287Z	Thermoplastic	-55 C	125 °C	Receptacle for Female Contacts		26	Signal	Housing/Shell (Unthreaded)	D-Sub High Density	Yellow Chromate Plated Zinc	Steel			3			DA A		Free Hanging (In-Line) Panel Mount		Contacts Not Included	500		Black	2

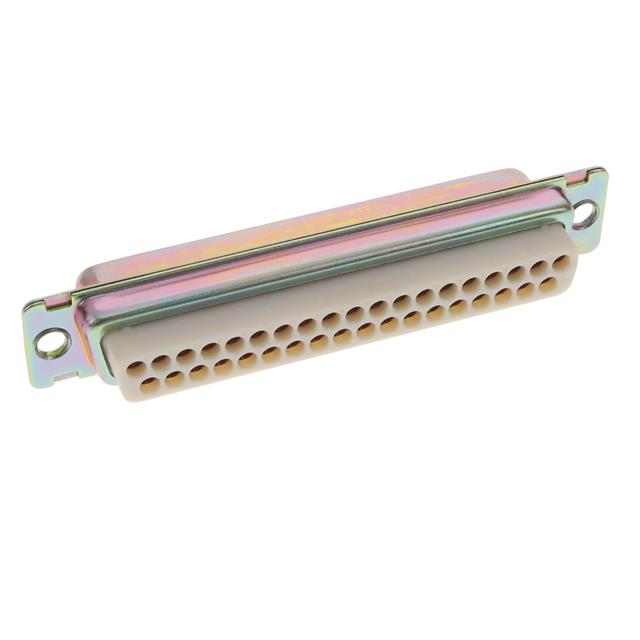

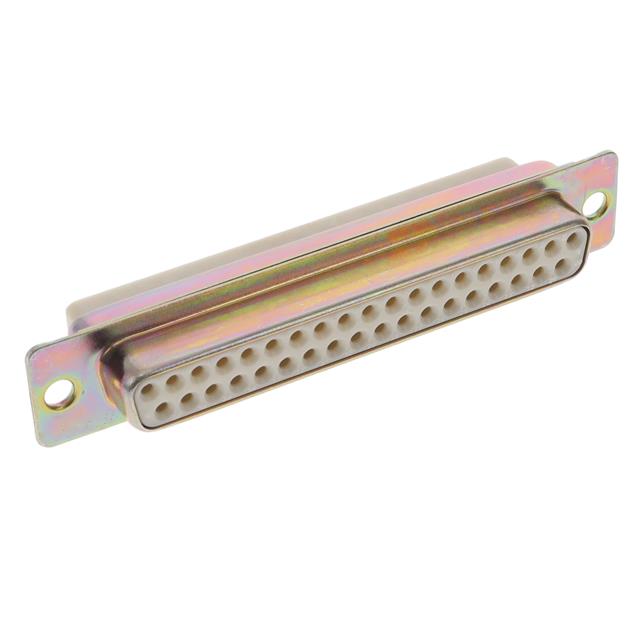

ITT Cannon, LLC M24308/2-284Z	Thermoplastic	-55 C	150 °C	Receptacle for Female Contacts		37	Signal	Housing/Shell (Unthreaded)	D-Sub	Yellow Chromate Plated Zinc	Steel			2		4	DC C		Free Hanging (In-Line)		Contacts Not Included	500
ITT Cannon, LLC M24308/2-1Z	Thermoplastic	-55 C	150 °C	Receptacle Female Sockets	Shielded	9	Signal	Housing/Shell (Unthreaded)	D-Sub	Yellow Chromate Plated Zinc	Steel	50 µin	1.27 µm	2	Crimp			7.5 A	Panel Mount	Gold					1	DE E
ITT Cannon, LLC M24308/2-18F
