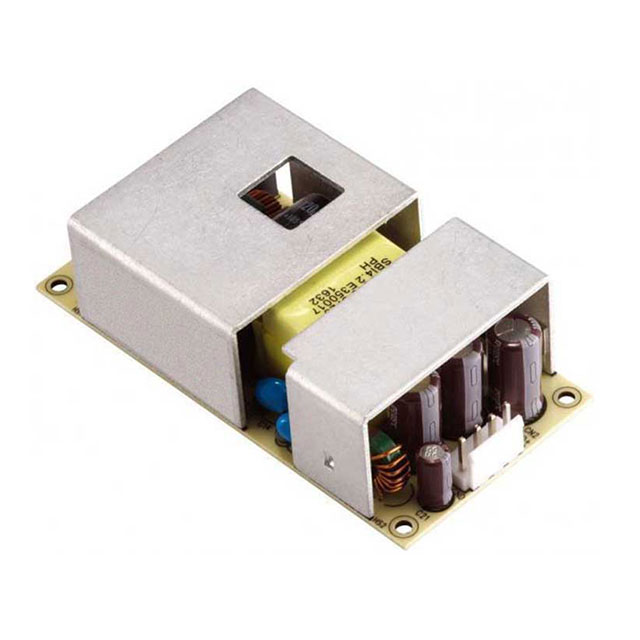

PML065 Series
Manufacturer: Phihong USA
Beta
⌘K
AC/DC CONVERTER 15V 65W
| Part | Minimum Load Required | Current - Output 1 | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Mounting Type | Voltage - Isolation | Applications | Efficiency | Number of Outputs | Type | Approval Agency | Voltage - Output 1 | Standard Number | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input [Min] | Voltage - Input [Max] | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phihong USA | 4.34 A | 28.1 mm | 101.6 mm | 4 " | 1.11 in | 2 in | 50.8 mm | Chassis Mount | 4000 V | Medical | 88 % | 1 | Open Frame | ANSI/AAMI ES IEC | 15 V | 60601-1 | 50 °C | 0 °C | 100 VAC | 240 VAC | ||
Phihong USA | 3.43 A | 28.1 mm | 101.6 mm | 4 " | 1.11 in | 2 in | 50.8 mm | Chassis Mount | 4000 V | Medical | 88 % | 1 | Open Frame | ANSI/AAMI ES IEC | 19 V | 60601-1 | 50 °C | 0 °C | 100 VAC | 240 VAC | ||
Phihong USA | 5 A | 28.1 mm | 101.6 mm | 4 " | 1.11 in | 2 in | 50.8 mm | Chassis Mount | 4000 V | Medical | 88 % | 1 | Open Frame | ANSI/AAMI ES IEC | 12 V | 60601-1 | 50 °C | 0 °C | 100 VAC | 240 VAC | 60 W | |
Phihong USA | 2.71 A | 28.1 mm | 101.6 mm | 4 " | 1.11 in | 2 in | 50.8 mm | Chassis Mount | 4000 V | Medical | 88 % | 1 | Open Frame | ANSI/AAMI ES IEC | 24 V | 60601-1 | 50 °C | 0 °C | 100 VAC | 240 VAC | ||
Phihong USA | 1.36 A | 28.1 mm | 101.6 mm | 4 " | 1.11 in | 2 in | 50.8 mm | Chassis Mount | 4000 V | Medical | 88 % | 1 | Open Frame | ANSI/AAMI ES IEC | 48 V | 60601-1 | 50 °C | 0 °C | 100 VAC | 240 VAC |
