ED300 Series

Catalog

TERM BLOCK 2POS 45DEG 5MM PCB

Part	Operating Temperature [Min]	Operating Temperature [Max]	Clamp Material - Plating	Housing Material	Screw Thread	Contact Material - Plating	Torque - Screw	Torque - Screw	Positions Per Level	Wire Termination	Voltage	Mating Orientation	Mating Orientation	Features	Pitch	Pitch	Number of Levels	Mounting Type	Current	Color	Wire Gauge [Max]	Wire Gauge [Min]
On Shore Technology Inc. ED300/2DG	-30 ░C	105 ░C	Copper	Polyamide (PA) Nylon	M2.6	Brass	4.4 Lb-In	0.5 Nm	2	Screw - Rising Cage Clamp	300 VDC	135 °	45 °	Interlocking (Side)	0.197 in	5 mm	1	Through Hole	15 A	Gray	22 AWG	12 AWG

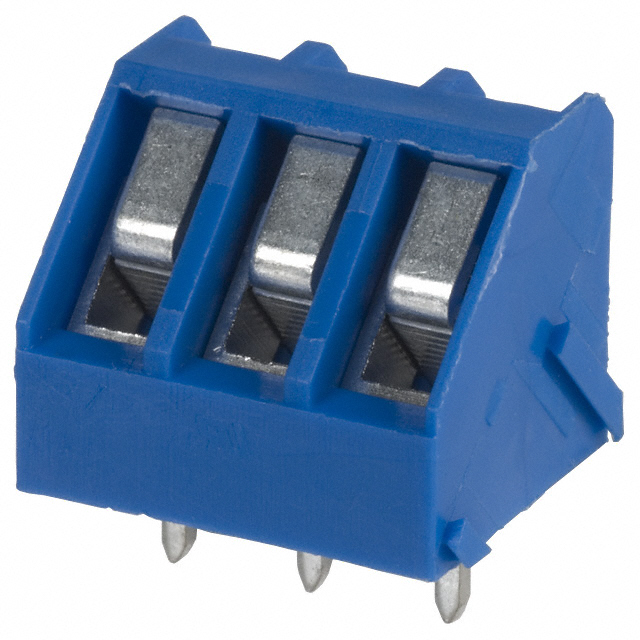

On Shore Technology Inc. ED300/3	-30 ░C	105 ░C	Copper	Polyamide (PA) Nylon	M2.6	Brass	4.4 Lb-In	0.5 Nm	3	Screw - Rising Cage Clamp	300 VDC	135 °	45 °	Interlocking (Side)	0.197 in	5 mm	1	Through Hole	15 A	Blue	22 AWG	12 AWG
On Shore Technology Inc. ED300/2BK	-30 ░C	105 ░C	Copper	Polyamide (PA) Nylon	M2.6	Brass	4.4 Lb-In	0.5 Nm	2	Screw - Rising Cage Clamp	300 VDC	135 °	45 °	Interlocking (Side)	0.197 in	5 mm	1	Through Hole	15 A	Black	22 AWG	12 AWG
