0328-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT .032-.046 HEX

Part	Operating Temperature [Min]	Operating Temperature [Max]	Socket Depth	Socket Depth	Length - Overall [x]	Length - Overall [x]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Termination	Tail Type	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Contact Finish Thickness	Contact Finish Thickness	Contact Material

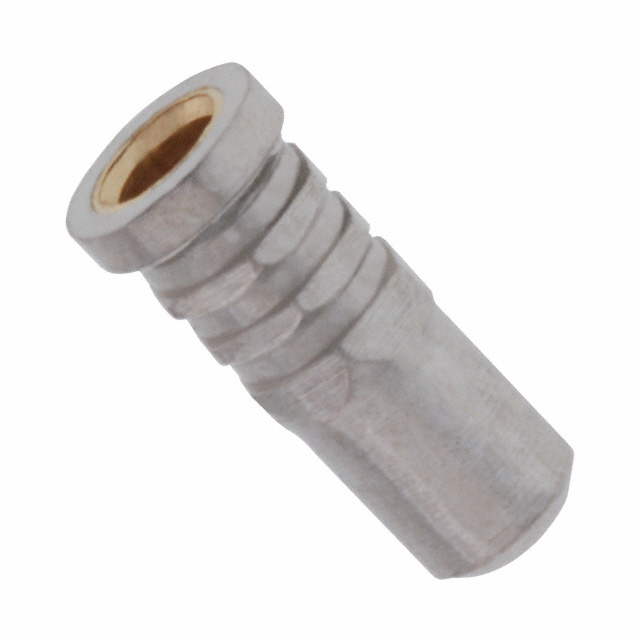

Mill-Max Manufacturing Corp. 0328-0-15-01-34-27-10-0	-55 C	125 °C	4.57 mm	0.18 in	5.23 mm	0.206 in	1.63 mm	0.064 in	0.079 in	2.01 mm	Hex Press-Fit	No Tail	2.31 mm	0.091 "	Gold	1.17 mm	0.81 mm	0.046 "	0.032 "	30 Áin	0.76 Ám	Beryllium Copper
Mill-Max Manufacturing Corp. 0328-0-15-01-34-14-10-0	-55 C	125 °C	4.57 mm	0.18 in	5.23 mm	0.206 in	1.63 mm	0.064 in	0.079 in	2.01 mm	Hex Press-Fit	No Tail	2.31 mm	0.091 "	Gold	1.17 mm	0.81 mm	0.046 "	0.032 "	10 Áin	0.25 Ám	Beryllium Copper
Mill-Max Manufacturing Corp. 0328-0-15-15-34-27-10-0	-55 C	125 °C	4.57 mm	0.18 in	5.23 mm	0.206 in	1.63 mm	0.064 in	0.079 in	2.01 mm	Hex Press-Fit	No Tail	2.31 mm	0.091 "	Gold	1.17 mm	0.81 mm	0.046 "	0.032 "	30 Áin	0.76 Ám	Beryllium Copper

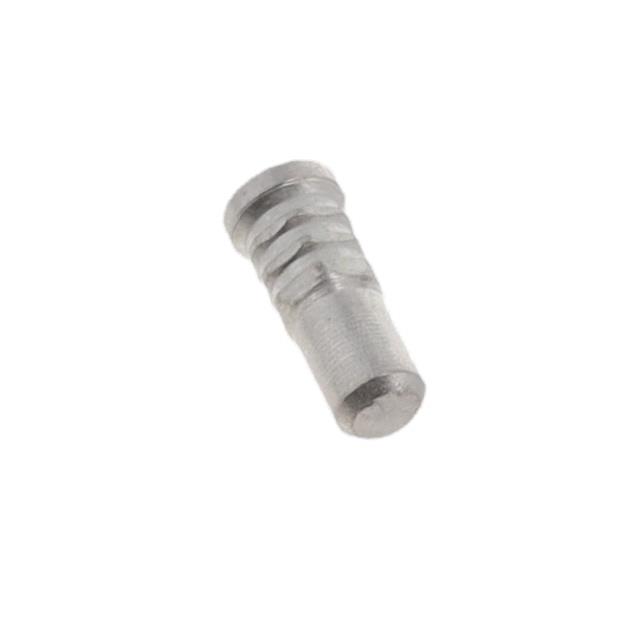

Mill-Max Manufacturing Corp. 0328-0-15-80-34-80-10-0	-55 C	125 °C	4.57 mm	0.18 in	5.23 mm	0.206 in	1.63 mm	0.064 in	0.079 in	2.01 mm	Hex Press-Fit	No Tail	2.31 mm	0.091 "	Tin	1.17 mm	0.81 mm	0.046 "	0.032 "	200 Áin	5.08 Ám	Beryllium Copper

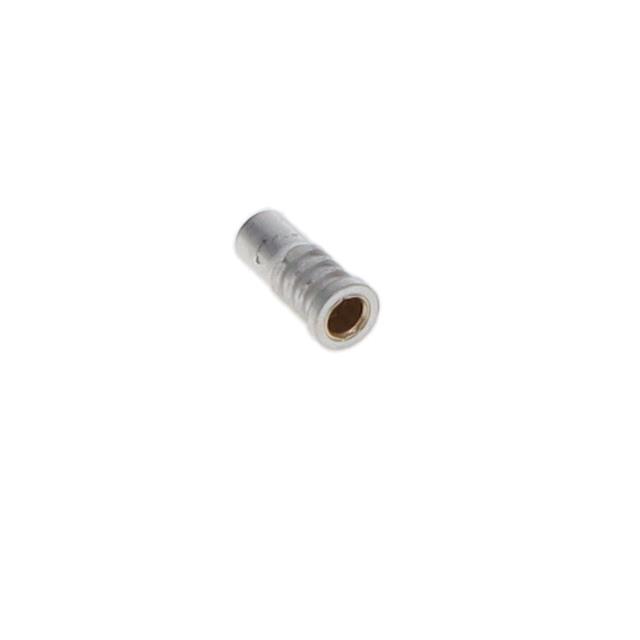

Mill-Max Manufacturing Corp. 0328-0-15-80-34-14-10-0	-55 C	125 °C	4.57 mm	0.18 in	5.23 mm	0.206 in	1.63 mm	0.064 in	0.079 in	2.01 mm	Hex Press-Fit	No Tail	2.31 mm	0.091 "	Gold	1.17 mm	0.81 mm	0.046 "	0.032 "	10 Áin	0.25 Ám	Beryllium Copper
