109BD24 Series

Catalog

FAN BLOWER 76X30MM 24VDC WIRE

Part	Lifetime @ Temp.	Material - Blade	Current Rating (Amps)	Material - Frame	Air Flow	Air Flow	Weight [custom]	Weight [custom]	Static Pressure	Static Pressure	Voltage - Rated	Power (Watts)	Fan Type	Features	Noise	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension	Operating Temperature [Min]	Operating Temperature [Max]	Width [y]	Termination	Approval Agency	Bearing Type	RPM	Operating Temperature [Max]	Operating Temperature [Min]
Sanyo Denki America Inc. 109BD24FD2	40000 Hrs	Plastic	140 mA	Plastic	0.305 mł/min	10.9 CFM	100.7 g	0.222 lb	0.394 in H2O	98.1 Pa	24 VDC	3.36 W	Blower	Locked Rotor Sensor	37 dB	76 mm	75.5 mm	Square/Rounded	-20 ░C	70 °C	30 mm	3 Wire Leads	CSA TUV UL	Ball	2600 RPM

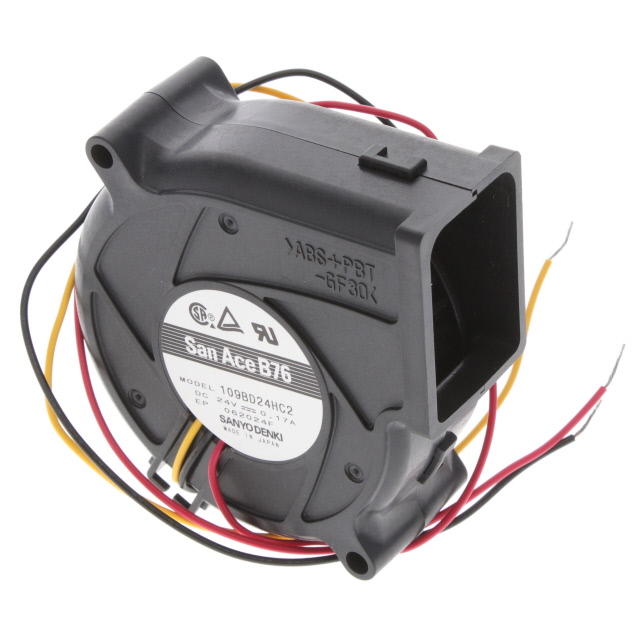

Sanyo Denki America Inc. 109BD24HC2	40000 Hrs	Plastic	0.17 A	Plastic			100.7 g	0.222 lb			24 VDC		Blower	Locked Rotor Protection Speed Sensor (Tach)	41.5 dB	76 mm	75.5 mm	Square/Rounded	-20 ░C	60 °C	30 mm	3 Wire Leads	CSA TUV UL	Ball	3000 RPM	60 °C	-4 °F

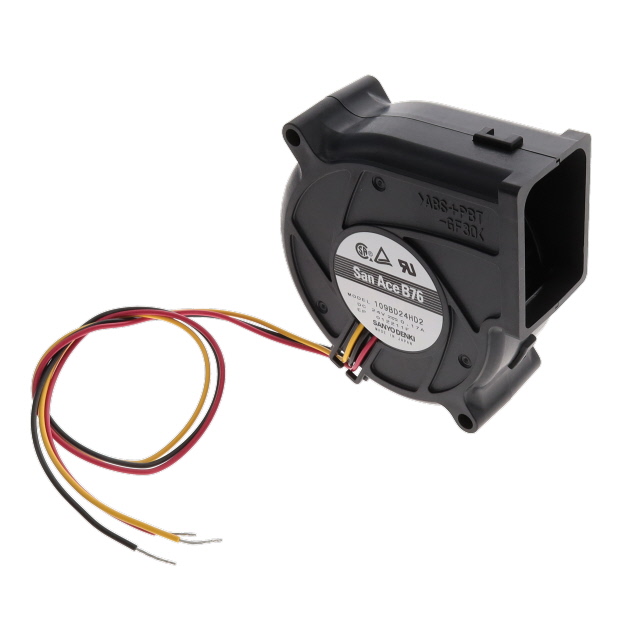

Sanyo Denki America Inc. 109BD24HD2	40000 Hrs	Plastic	0.17 A	Plastic	0.356 mł/min	12.7 CFM	100.7 g	0.222 lb			24 VDC		Blower	Locked Rotor Sensor	41.5 dB	76 mm	75.5 mm	Square/Rounded	-20 ░C	60 °C	30 mm	3 Wire Leads	CSA TUV UL	Ball	3000 RPM	60 °C	-4 °F

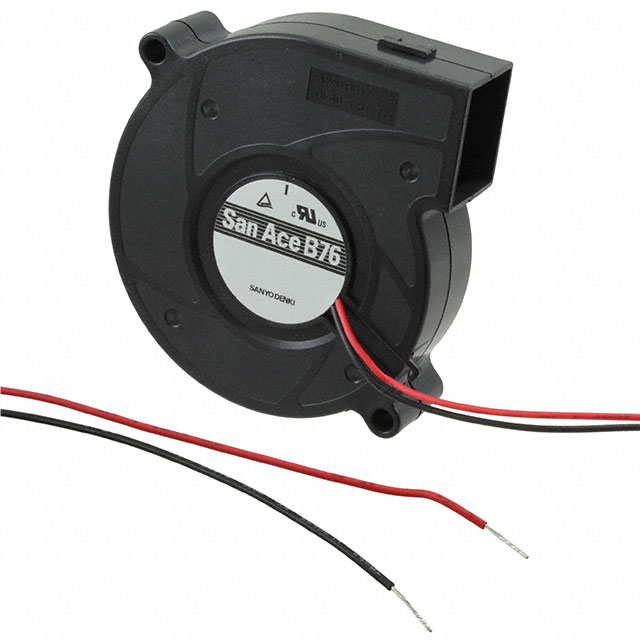

Sanyo Denki America Inc. 109BD24MA2	40000 Hrs	Plastic	100 mA	Plastic	0.246 m³/min	8.8 CFM	100.7 g	0.222 lb	0.236 in H2O	58.8 Pa	24 VDC	2.4 W	Blower		32.5 dB	76 mm	75.5 mm	Square/Rounded	-20 ░C	70 °C	30 mm	2 Wire Leads	CSA TUV UL	Ball	2100 RPM
Sanyo Denki America Inc. 109BD24HA2	40000 Hrs	Plastic	0.17 A	Plastic			100.7 g	0.222 lb			24 VDC		Blower		41.5 dB	76 mm	75.5 mm	Square/Rounded	-20 ░C	60 °C	30 mm	2 Wire Leads	CSA TUV UL	Ball	3000 RPM	60 °C	-4 °F

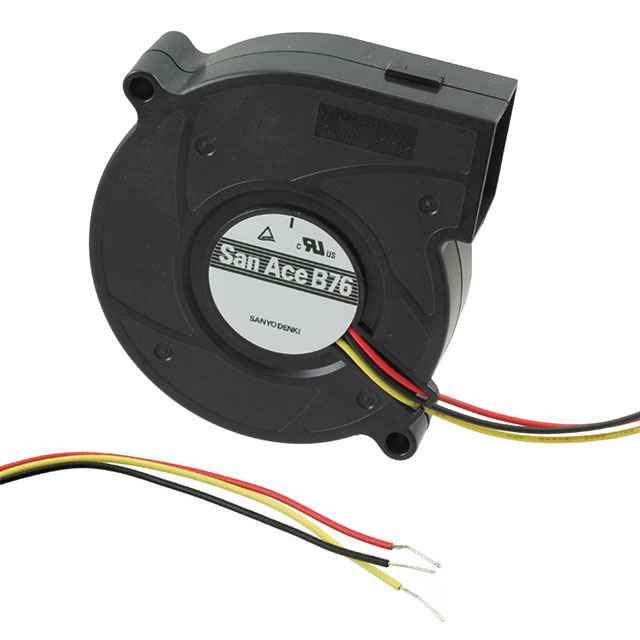

Sanyo Denki America Inc. 109BD24MC2	40000 Hrs	Plastic	100 mA	Plastic	0.246 m³/min	8.8 CFM	100.7 g	0.222 lb	0.236 in H2O	58.8 Pa	24 VDC	2.4 W	Blower	Locked Rotor Protection Speed Sensor (Tach)	32.5 dB	76 mm	75.5 mm	Square/Rounded	-20 ░C	70 °C	30 mm	3 Wire Leads	CSA TUV UL	Ball	2100 RPM
Sanyo Denki America Inc. 109BD24MD2	40000 Hrs	Plastic	100 mA	Plastic	0.246 m³/min	8.8 CFM	100.7 g	0.222 lb	0.236 in H2O	58.8 Pa	24 VDC	2.4 W	Blower	Locked Rotor Sensor	32.5 dB	76 mm	75.5 mm	Square/Rounded	-20 ░C	70 °C	30 mm	3 Wire Leads	CSA TUV UL	Ball	2100 RPM
