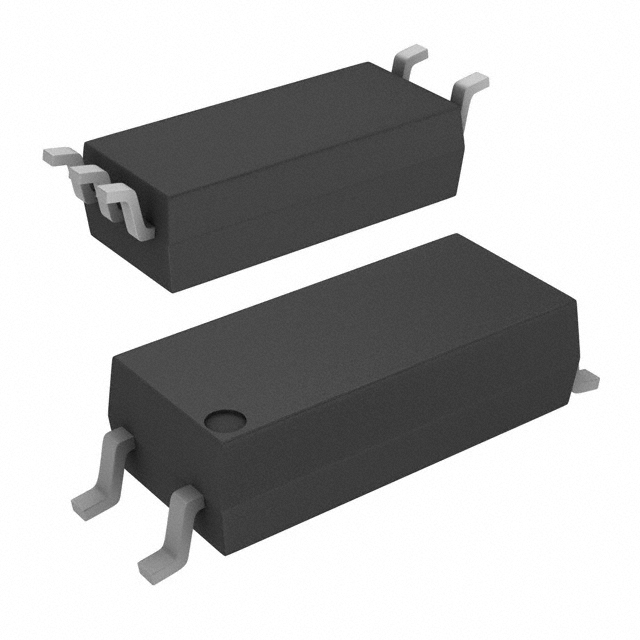

FOD8321 Series

2.5A Output Current, Gate Drive Optocoupler in Optoplanar® Wide Body SOP 5-Pin

Catalog

2.5A Output Current, Gate Drive Optocoupler in Optoplanar® Wide Body SOP 5-Pin

Part	Technology	Voltage - Output Supply [Max]	Voltage - Output Supply [Min]	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Number of Channels	Common Mode Transient Immunity (Min) [Min]	Pulse Width Distortion (Max) [Max]	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Current - Peak Output	Mounting Type	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Package / Case	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Current - DC Forward (If) (Max) [Max]	Approval Agency
ON Semiconductor FOD8321	Optical Coupling	30 V	16 V	2 A	2 A	1	20 kV/µs	300 ns	500 ns	500 ns	3 A	Surface Mount	5-SOP	1.5 V	0.346 in 5 Leads	8.8 mm	6-SOIC	100 °C	-40 °C	60 ns	60 ns	25 mA	UL
ON Semiconductor FOD8321R2V	Optical Coupling	30 V	16 V	2 A	2 A	1	20 kV/µs	300 ns	500 ns	500 ns	3 A	Surface Mount	5-SOP	1.5 V	0.346 in 5 Leads	8.8 mm	6-SOIC	100 °C	-40 °C	60 ns	60 ns	25 mA	IEC/EN/DIN UL
ON Semiconductor FOD8321R2	Optical Coupling	30 V	16 V	2 A	2 A	1	20 kV/µs	300 ns	500 ns	500 ns	3 A	Surface Mount	5-SOP	1.5 V	0.346 in 5 Leads	8.8 mm	6-SOIC	100 °C	-40 °C	60 ns	60 ns	25 mA	UL

Catalog

2.5A Output Current, Gate Drive Optocoupler in Optoplanar® Wide Body SOP 5-Pin

Key Features

• Fairchild’s Optoplanar® packaging technology provides reliable and high voltage insulation with greater than 8mm creepage and clearance distance, and 0.5mm internal insulation distance while still offering a compact footprint

• 2.5A output current driving capability for medium power IGBT/MOSFET

• Use of P-Channel MOSFETs at output stage enables output voltage swing close to the supply rail

• 20kV/µs Minimum Common Mode Rejection

• Wide Supply Voltage range from 15V to 30V

• Fast Switching Speed over full operating temperature range

• 500ns max. propagation delay

• 300ns max. pulse width distortion

• Under-Voltage LockOut (UVLO) with hysteresis

• Extended industrial temperate range, -40 to 100°C temperature range

• Safety and regulatory approvals

• UL1577, 5,000VRMSfor 1 min.

• DIN EN/IEC60747-5-5, 1,414V peak working insulation voltage

Description

The FOD8321 is a 2.5A Output Current Gate Drive Optocoupler, capable of driving medium power IGBT/MOSFETs. It is ideally suited for fast switching driving of power IGBT and MOSFETs used in motor control inverter applications, and high performance power systems.It utilizes ON Semiconductor’s coplanar packaging technology, Optoplanar®, and optimized IC design to achieve reliably high insulation voltage and high noise immunity.It consists of a aluminum gallium arsenide (AlGaAs) light emitting diode optically coupled to an integrated circuit with a high-speed driver for push-pull MOSFET output stage. The device is housed in a wide body 5-pin small outline plastic package.
