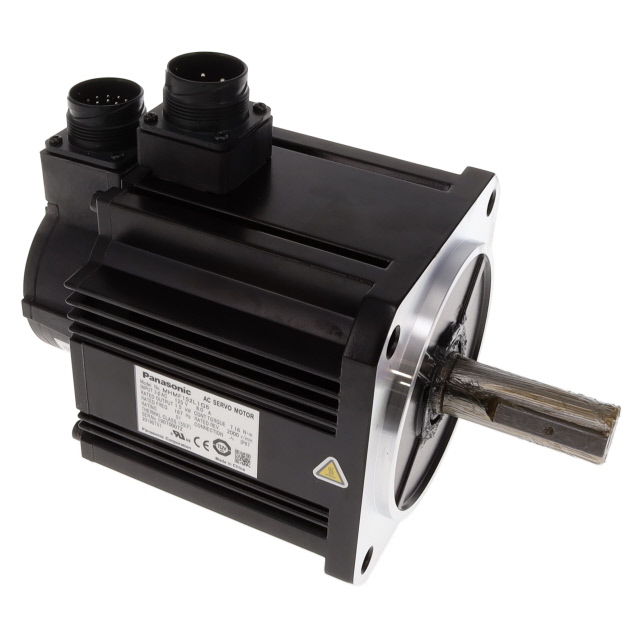

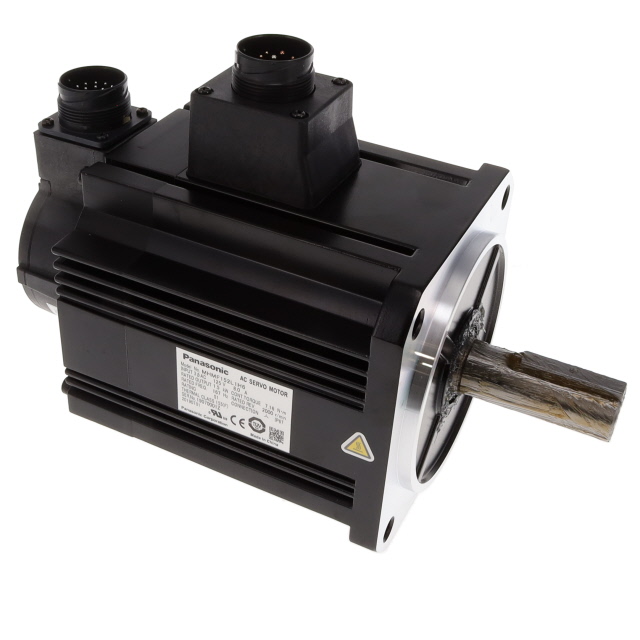

MHMF152 Series
Manufacturer: Panasonic Industrial Automation Sales
Catalog
AC, DC & SERVO MOTORS A6 MOTOR HI,1.5 KW,200 V,BRK,PL,IP67
| Part | Approval Agency | Encoder Type | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Termination Style | Power - Rated | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Type | Voltage - Rated | RPM | Torque - Max Momentary (oz-in / mNm) | Torque - Max Momentary (oz-in / mNm) | Features | Torque - Rated (oz-in / mNm) | Torque - Rated (oz-in / mNm) | Mounting Hole Spacing | Mounting Hole Spacing | Function | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Panasonic Industrial Automation Sales | CE cULus cURus | Absolute | 0.866 in | 22 mm | Cable with Connector | 1500 W | 5.118 in | 130 mm | 5.118 " | 130 mm | AC Motor | 200 VAC | 2000 RPM | 3045 oz-in | 21500 mNm | Brake Key Oil Seal Protective Lip | 1014 oz-in | 7160 mNm | 165 mm | 6.496 " | Servomotor | 70 mm | 2.756 in |
Panasonic Industrial Automation Sales | CE cULus cURus | Absolute | 0.866 in | 22 mm | Cable with Connector | 1500 W | 5.118 in | 130 mm | 5.118 " | 130 mm | AC Motor | 200 VAC | 2000 RPM | 3045 oz-in | 21500 mNm | Oil Seal Protective Lip | 1014 oz-in | 7160 mNm | 165 mm | 6.496 " | Servomotor | 70 mm | 2.756 in |
 Panasonic Industrial Automation Sales | CE cULus cURus | Absolute | 0.866 in | 22 mm | Cable with Connector | 1500 W | 5.118 in | 130 mm | 5.118 " | 130 mm | AC Motor | 200 VAC | 2000 RPM | 3045 oz-in | 21500 mNm | Brake Key Oil Seal | 1014 oz-in | 7160 mNm | 165 mm | 6.496 " | Servomotor | 70 mm | 2.756 in |
Panasonic Industrial Automation Sales | CE cULus cURus | Absolute | 0.866 in | 22 mm | Cable with Connector | 1500 W | 5.118 in | 130 mm | 5.118 " | 130 mm | AC Motor | 200 VAC | 2000 RPM | 3045 oz-in | 21500 mNm | Brake Oil Seal Protective Lip | 1014 oz-in | 7160 mNm | 165 mm | 6.496 " | Servomotor | 70 mm | 2.756 in |
Panasonic Industrial Automation Sales | CE cULus cURus | Absolute | 0.866 in | 22 mm | Cable with Connector | 1500 W | 5.118 in | 130 mm | 5.118 " | 130 mm | AC Motor | 200 VAC | 2000 RPM | 3045 oz-in | 21500 mNm | Brake Oil Seal | 1014 oz-in | 7160 mNm | 165 mm | 6.496 " | Servomotor | 70 mm | 2.756 in |
Panasonic Industrial Automation Sales | CE cULus cURus | Absolute | 0.866 in | 22 mm | Cable with Connector | 1500 W | 5.118 in | 130 mm | 5.118 " | 130 mm | AC Motor | 200 VAC | 2000 RPM | 3045 oz-in | 21500 mNm | Brake Key Oil Seal Protective Lip | 1014 oz-in | 7160 mNm | 165 mm | 6.496 " | Servomotor | 70 mm | 2.756 in |
Panasonic Industrial Automation Sales | CE cULus cURus | Absolute | 0.866 in | 22 mm | Cable with Connector | 1500 W | 5.118 in | 130 mm | 5.118 " | 130 mm | AC Motor | 200 VAC | 2000 RPM | 3045 oz-in | 21500 mNm | Oil Seal | 1014 oz-in | 7160 mNm | 165 mm | 6.496 " | Servomotor | 70 mm | 2.756 in |
Panasonic Industrial Automation Sales | CE cULus cURus | Absolute | 0.866 in | 22 mm | Cable with Connector | 1500 W | 5.118 in | 130 mm | 5.118 " | 130 mm | AC Motor | 200 VAC | 2000 RPM | 3045 oz-in | 21500 mNm | Oil Seal | 1014 oz-in | 7160 mNm | 165 mm | 6.496 " | Servomotor | 70 mm | 2.756 in |
Panasonic Industrial Automation Sales | CE cULus cURus | Absolute | 0.866 in | 22 mm | Cable with Connector | 1500 W | 5.118 in | 130 mm | 5.118 " | 130 mm | AC Motor | 200 VAC | 2000 RPM | 3045 oz-in | 21500 mNm | Oil Seal Protective Lip | 1014 oz-in | 7160 mNm | 165 mm | 6.496 " | Servomotor | 70 mm | 2.756 in |
 Panasonic Industrial Automation Sales | CE cULus cURus | Absolute | 0.866 in | 22 mm | Cable with Connector | 1500 W | 5.118 in | 130 mm | 5.118 " | 130 mm | AC Motor | 200 VAC | 2000 RPM | 3045 oz-in | 21500 mNm | Key Oil Seal | 1014 oz-in | 7160 mNm | 165 mm | 6.496 " | Servomotor | 70 mm | 2.756 in |
