RP370 Series

Catalog

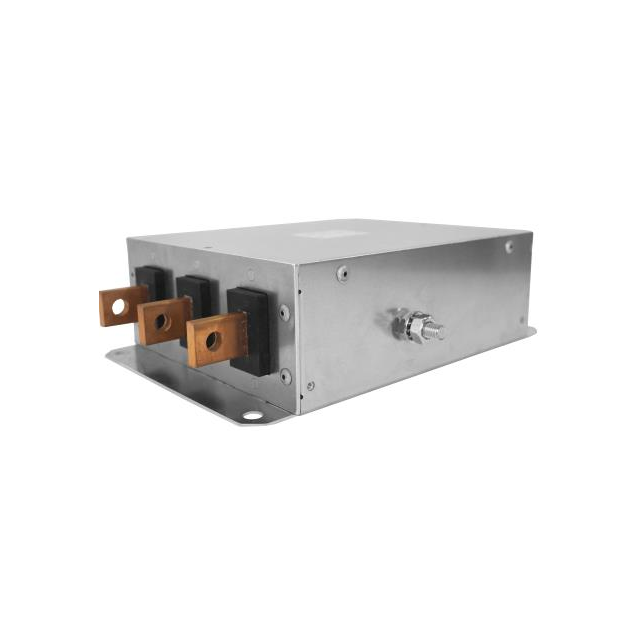

LINE FILTER 480VAC 800A CHASSIS

Part	Applications	Termination Style	Voltage - Rated AC	Frequency - Operating [Max]	Frequency - Operating [Min]	Mounting Type	Current	Filter Type	Voltage - Rated AC (Phase to Ground/Neutral)	Operating Temperature [Max]	Operating Temperature [Min]	Configuration	Approval Agency
Astrodyne TDI RP370-800-100-B	General Purpose	Terminal Post	480 V	60 Hz	50 Hz	Chassis Mount	800 A	Three Phase (Delta)	3.5 kV	100 °C	-25 °C	Single Stage	CE cURus ENEC SEMKO
Astrodyne TDI RP370-800-0-B	General Purpose	Terminal Post	480 V	60 Hz	50 Hz	Chassis Mount	800 A	Three Phase (Delta)	3.5 kV	100 °C	-25 °C	Single Stage	CE cURus ENEC SEMKO
Astrodyne TDI RP370-400-10-B	General Purpose	Terminal Post	480 V	60 Hz	50 Hz	Chassis Mount	400 A	Three Phase (Delta)	3.5 kV	100 °C	-25 °C	Single Stage	CE cURus ENEC SEMKO
Astrodyne TDI RP370-320-10-B	General Purpose	Terminal Post	480 V	60 Hz	50 Hz	Chassis Mount	320 A	Three Phase (Delta)	3.5 kV	100 °C	-25 °C	Single Stage	CE cURus ENEC SEMKO
Astrodyne TDI RP370-320-0-B	General Purpose	Terminal Post	480 V	60 Hz	50 Hz	Chassis Mount	320 A	Three Phase (Delta)	3.5 kV	100 °C	-25 °C	Single Stage	CE cURus ENEC SEMKO
Astrodyne TDI RP370-800-10-B	General Purpose	Terminal Post	480 V	60 Hz	50 Hz	Chassis Mount	800 A	Three Phase (Delta)	3.5 kV	100 °C	-25 °C	Single Stage	CE cURus ENEC SEMKO
Astrodyne TDI RP370-600-0-B	General Purpose	Terminal Post	480 V	60 Hz	50 Hz	Chassis Mount	600 A	Three Phase (Delta)	3.5 kV	100 °C	-25 °C	Single Stage	CE cURus ENEC SEMKO
Astrodyne TDI RP370-800-2000-B	General Purpose	Terminal Post	480 V	60 Hz	50 Hz	Chassis Mount	800 A	Three Phase (Delta)	3.5 kV	100 °C	-25 °C	Single Stage	CE cURus ENEC SEMKO
Astrodyne TDI RP370-250-100-B	General Purpose	Terminal Post	480 V	60 Hz	50 Hz	Chassis Mount	250 A	Three Phase (Delta)	3.5 kV	100 °C	-25 °C	Single Stage	CE cURus ENEC SEMKO
Astrodyne TDI RP370-400-1000-B	General Purpose	Terminal Post	480 V	60 Hz	50 Hz	Chassis Mount	400 A	Three Phase (Delta)	3.5 kV	100 °C	-25 °C	Single Stage	CE cURus ENEC SEMKO
