H16BPR Series

Catalog

CONN HOOD SIDE ENTRY SZH16B M32

Part	Thread Size	Style	Housing Material	Features	Ingress Protection	Connector Type	Housing Finish	Housing Color	Lock Location	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size	Operating Temperature [Max]	Operating Temperature [Min]

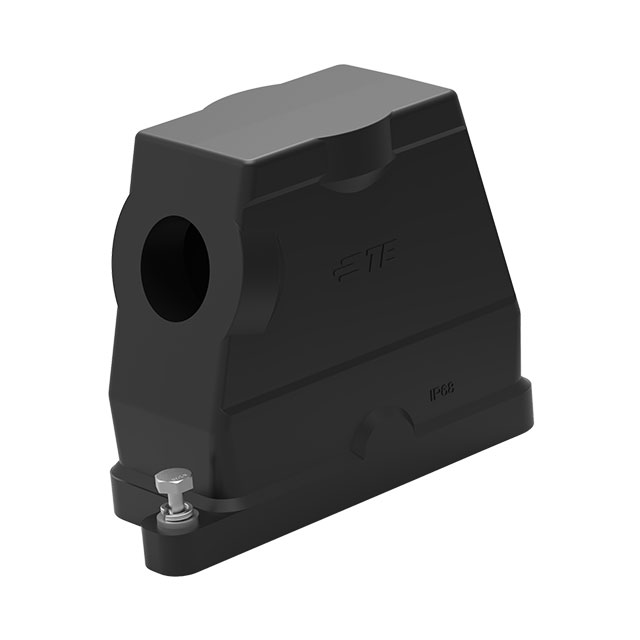

TE Connectivity Aerospace, Defense and Marine H16BPR-TSH-M32-EMC-C	M32	Side Entry	Aluminum Alloy Die Cast	Corrosion Resistant EMC Resistant	IP68 - Dust Tight Waterproof	Hood	Powder Coated	Black	Screw Locks on Hood	111.8 mm	6.535 "	58 mm	166 mm	4.402 in	2.283 "	H16B	125 °C	-40 °C

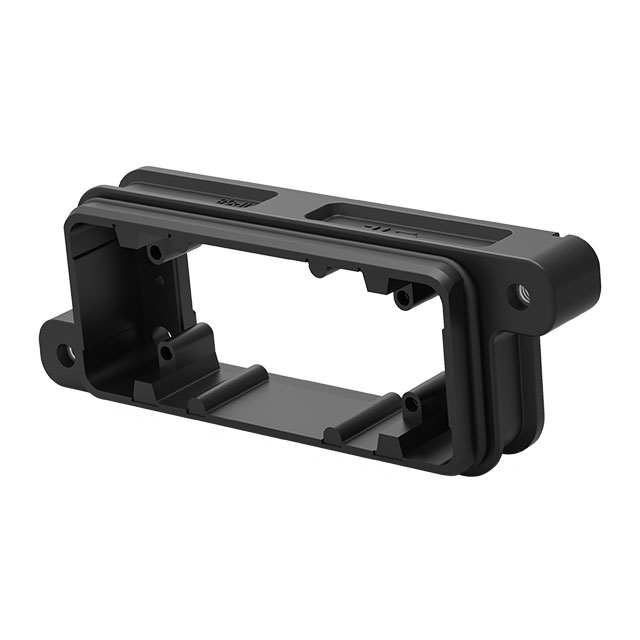

TE Connectivity Aerospace, Defense and Marine H16BPR-AG-EMC-C		Bottom Entry	Aluminum Alloy Die Cast	Corrosion Resistant EMC Resistant	IP68 - Dust Tight Waterproof	Base - Panel Mount	Powder Coated	Black	Screw Locks on Hood	29 mm	6.535 "	58 mm	166 mm	1.142 in	2.283 "	H16B	125 °C	-40 °C

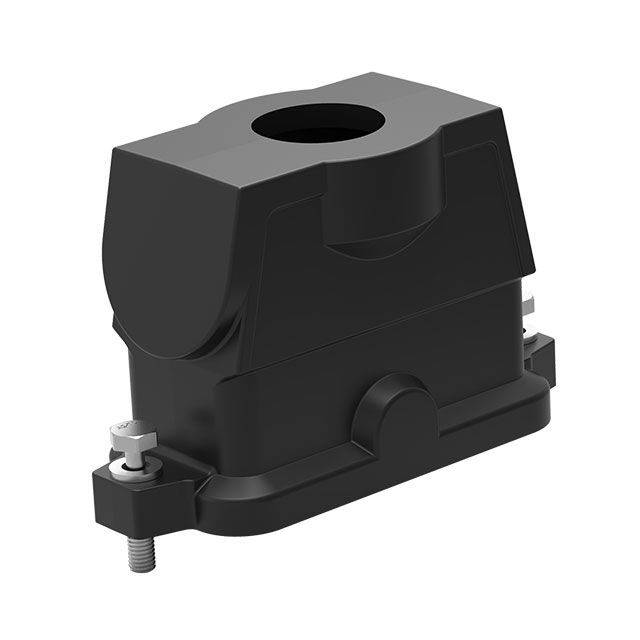

TE Connectivity Aerospace, Defense and Marine H16BPR-TGHC-M32-EMC-C	M32	Top Entry	Aluminum Alloy Die Cast	Corrosion Resistant EMC Resistant	IP68 - Dust Tight Waterproof	Hood	Powder Coated	Black	Screw Locks on Hood	80 mm	5.118 in	53.2 mm	130 mm	3.15 "	2.094 "	H16B	125 °C	-40 °C
