747842 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

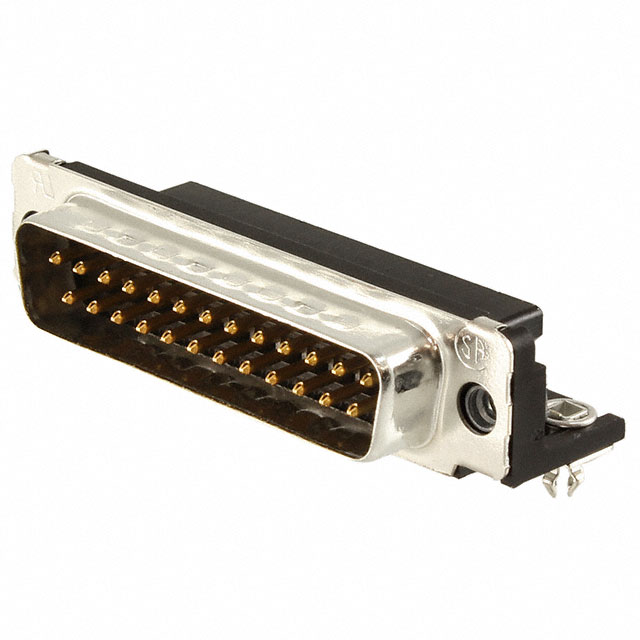

CONN D-SUB PLUG 25POS R/A SLDR
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Contact Material | Color | Backset Spacing | Backset Spacing | Material Flammability Rating | Features | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Mounting Type | Connector Style | Contact Type | Termination | Connector Type | Number of Positions | Flange Feature | Flange Feature | Current Rating (Amps) | Number of Rows [custom] | Contact Finish Thickness | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | -55 C | 105 ░C | 125 VDC | Brass | Black | 8.08 mm | 0.318 " | UL94 V-0 | Board Lock Ground Strap Grounding Indents | B DB | 3 | Right Angle Through Hole | D-Sub | Signal | Solder | Plug Male Pins | 25 | Housing/Shell | 4-40 | 6 A | 2 | Flash | Gold |
 TE Connectivity AMP Connectors | -55 C | 105 ░C | 125 VDC | Brass | Black | 8.08 mm | 0.318 " | UL94 V-0 | Board Lock Ground Strap Grounding Indents | B DB | 3 | Right Angle Through Hole | D-Sub | Signal | Solder | Plug Male Pins | 25 | 4-40 Mating Side Female Screwlock | 6 A | 2 | Flash | Gold | |
 TE Connectivity AMP Connectors | -55 C | 105 ░C | 125 VDC | Brass | Black | 8.08 mm | 0.318 " | UL94 V-0 | Board Lock Ground Strap Grounding Indents | B DB | 3 | Right Angle Through Hole | D-Sub | Signal | Solder | Plug Male Pins | 25 | Housing/Shell | 4-40 | 6 A | 2 | Gold |
