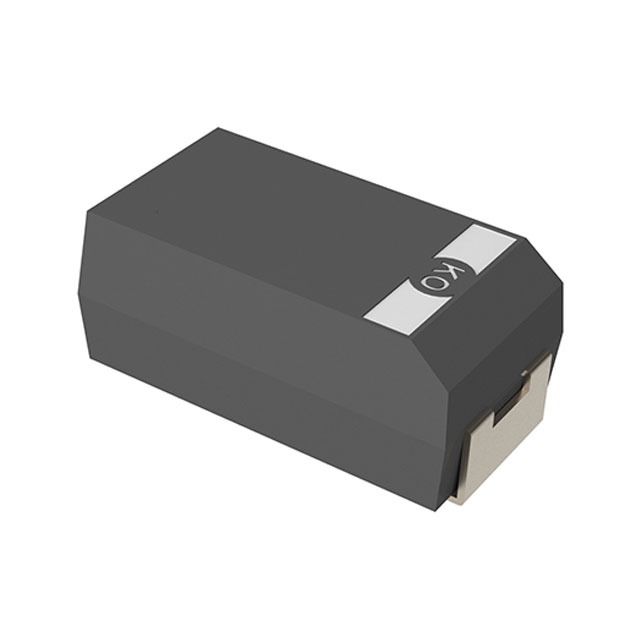

T520Y Series

Manufacturer: KEMET

Catalog

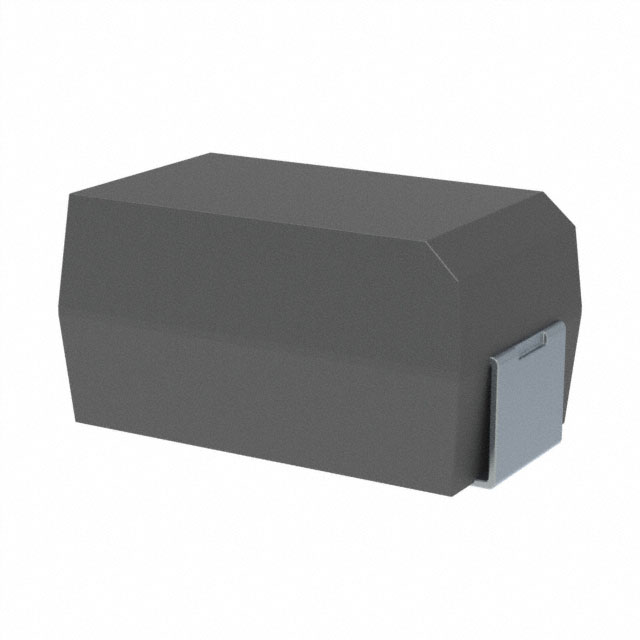

TANTALUM POLYMER CAPACITOR, KO-CAP®, 470 ΜF, ± 20%, Y, 0.025 OHM

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Tolerance	Mounting Type	Lifetime @ Temp.	Features	ESR (Equivalent Series Resistance)	Package / Case	Height - Seated (Max)	Height - Seated (Max) [Max]	Manufacturer Size Code	Type	Voltage - Rated	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]
KEMET T520Y477M006ATE025	0.169 "	7.3 mm	0.287 "	4.3 mm	20 %	Surface Mount	2000 Hrs	General Purpose	25 mOhm	2917 (7343 Metric)	4 mm	0.157 in	Y	Molded	6.3 VDC	470 µF	-55 C	105 ░C
KEMET T520Y687M2R5ATE025	0.169 "	7.3 mm	0.287 "	4.3 mm	20 %	Surface Mount	2000 Hrs	General Purpose	25 mOhm	2917 (7343 Metric)	4 mm	0.157 in	Y	Molded	2.5 V	680 µF	-55 C	105 ░C
KEMET T520Y108M2R5ATE010	0.169 "	7.3 mm	0.287 "	4.3 mm	20 %	Surface Mount	2000 Hrs	General Purpose	10 mOhm	2917 (7343 Metric)	4 mm	0.157 in	Y	Molded	2.5 V	1000 µF	-55 C	105 ░C
KEMET T520Y157M010ATE015	0.169 "	7.3 mm	0.287 "	4.3 mm	20 %	Surface Mount	2000 Hrs	General Purpose	15 mOhm	2917 (7343 Metric)	4 mm	0.157 in	Y	Molded	10 V	150 µF	-55 C	105 ░C
KEMET T520Y227M010ATE0407280	0.169 "	7.3 mm	0.287 "	4.3 mm	20 %	Surface Mount	2000 Hrs	General Purpose	40 mOhm	2917 (7343 Metric)	4 mm	0.157 in	Y	Molded	10 V	220 µF	-55 C	105 ░C
KEMET T520Y687M004ATE010	0.169 "	7.3 mm	0.287 "	4.3 mm	20 %	Surface Mount	2000 Hrs	General Purpose	10 mOhm	2917 (7343 Metric)	4 mm	0.157 in	Y	Molded	4 V	680 µF	-55 C	105 ░C
KEMET T520Y337M010AHE015	0.169 "	7.3 mm	0.287 "	4.3 mm	20 %	Surface Mount	2000 Hrs	General Purpose	15 mOhm	2917 (7343 Metric)	4 mm	0.157 in	Y	Molded	10 V	330 µF	-55 C	105 ░C
KEMET T520Y477M006ATE018	0.169 "	7.3 mm	0.287 "	4.3 mm	20 %	Surface Mount	2000 Hrs	General Purpose	18 mOhm	2917 (7343 Metric)	4 mm	0.157 in	Y	Molded	6.3 VDC	470 µF	-55 C	105 ░C
KEMET T520Y477M006ATE015	0.169 "	7.3 mm	0.287 "	4.3 mm	20 %	Surface Mount	2000 Hrs	General Purpose	15 mOhm	2917 (7343 Metric)	4 mm	0.157 in	Y	Molded	6.3 VDC	470 µF	-55 C	105 ░C
KEMET T520Y477M006ATE035	0.169 "	7.3 mm	0.287 "	4.3 mm	20 %	Surface Mount	2000 Hrs	General Purpose	35 mOhm	2917 (7343 Metric)	4 mm	0.157 in	Y	Molded	6.3 VDC	470 µF	-55 C	105 ░C
