223HMS Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Switch Travel	Mechanical Life	Contact Rating @ Voltage	Circuit	Switch Function	Outline [y]	Outline [x]	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Orientation	Illumination	Actuator Type	Actuator Length, Right Angle [x]	Termination Style	Operating Force	Mounting Type	Features

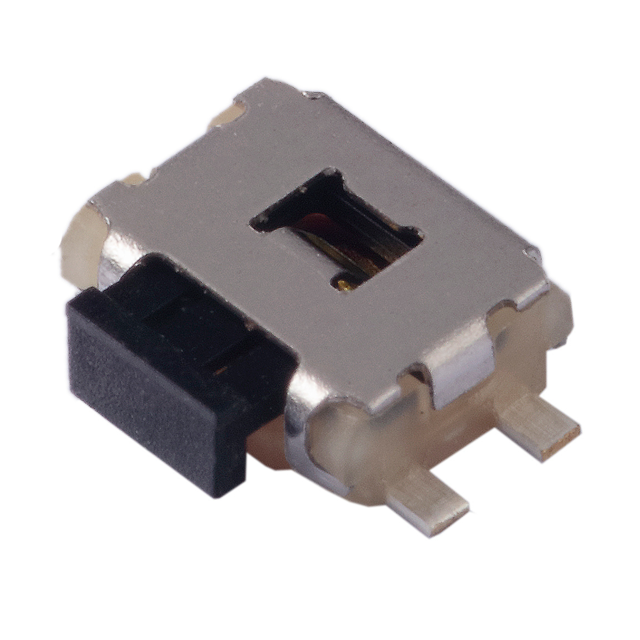

CTS Electrocomponents 223HMSABR	0.3 mm	100000 Cycles	0.05 A 12 VDC	SPST-NO	Off-Mom	3.5 mm	6.4 mm	85 °C	-40 C	Side Actuated	Non-Illuminated	Rectangular Button	4.5 mm	Gull Wing	220 gf	Right Angle Surface Mount

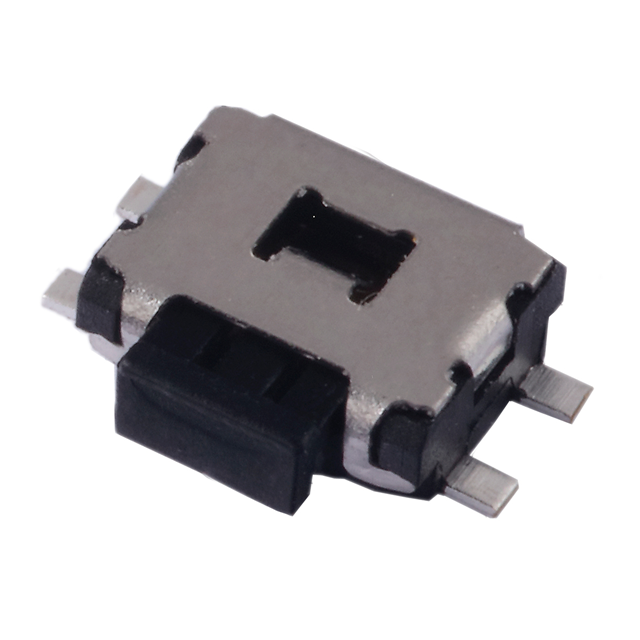

CTS Electrocomponents 223HMSABRB	0.3 mm	100000 Cycles	0.05 A 12 VDC	SPST-NO	Off-Mom	3.5 mm	6.4 mm	85 °C	-40 C	Side Actuated	Non-Illuminated	Rectangular Button	4.5 mm	Gull Wing	220 gf	Right Angle Surface Mount	Grounding Pin
CTS Electrocomponents 223HMSABRBG	0.3 mm	100000 Cycles	0.05 A 12 VDC	SPST-NO	Off-Mom	3.5 mm	6.4 mm	85 °C	-40 C	Side Actuated	Non-Illuminated	Rectangular Button	4.5 mm	Gull Wing	220 gf	Right Angle Surface Mount	Board Guide Grounding Pin

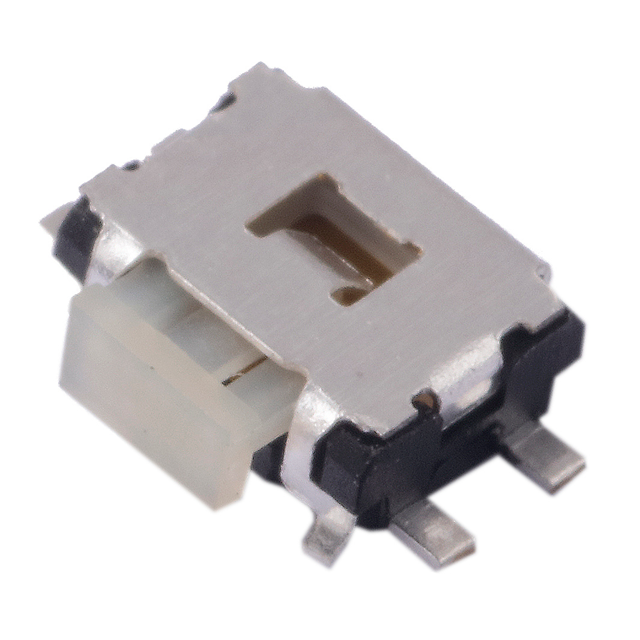

CTS Electrocomponents 223HMSAARBG	0.25 mm	200000 Cycles	0.05 A 12 VDC	SPST-NO	Off-Mom	3.5 mm	6.4 mm	85 °C	-40 C	Side Actuated	Non-Illuminated	Rectangular Button	4.5 mm	Gull Wing	160 gf	Right Angle Surface Mount	Board Guide Grounding Pin
