1761500 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

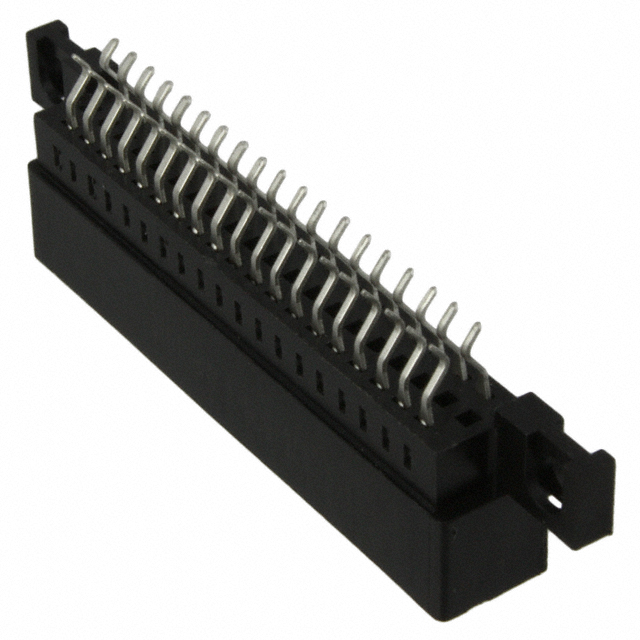

CONN EDGE DUAL FML 26POS 0.100
| Part | Color | Material - Insulation | Contact Material | Features | Pitch [x] | Pitch [x] | Operating Temperature [Max] | Operating Temperature [Min] | Card Type | Termination | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions [custom] | Number of Positions [custom] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Rows | Read Out | Mounting Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Black | Polyester Glass Filled | Copper Alloy | Card Extender | 2.54 mm | 0.1 in | 85 °C | -55 °C | Non Specified - Dual Edge | Solder | 1 | 1 | 1 | 10 | 20 | 6 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | Board Edge Straddle Mount | 3.68 mm | Flush Mount Side Opening Unthreaded | 0.145 in | Gold | 0.76 Ám | 30 Áin | Female |
