TB9057 Series
Manufacturer: Toshiba Semiconductor and Storage
Catalog
AUTOMOTIVE MOTOR H-BRIDGE DRIVER
| Part | Technology | Qualification | Operating Temperature [Max] | Operating Temperature [Min] | Output Configuration | Motor Type - Stepper | Function | Grade | Supplier Device Package | Package / Case | Motor Type - AC, DC | Interface | Mounting Type | Voltage - Supply [Min] | Voltage - Supply [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

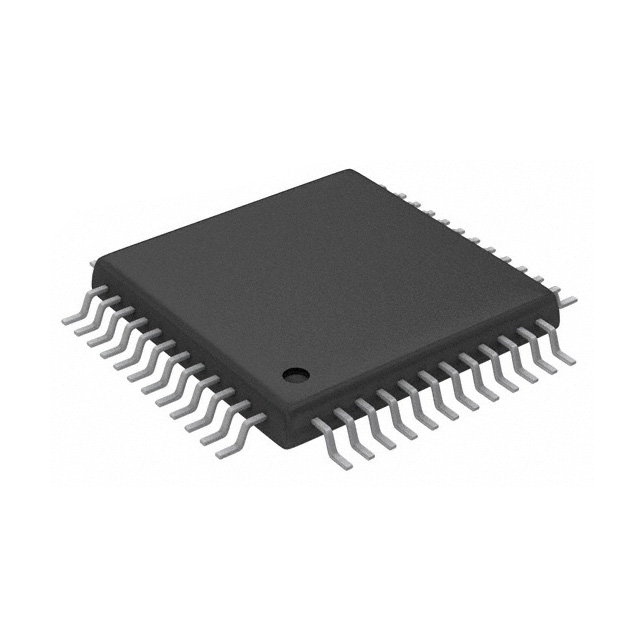

 Toshiba Semiconductor and Storage | Bi-CMOS | AEC-Q100 | 125 °C | -40 C | Pre-Driver | Bipolar | Driver | Automotive | 48-LQFP (7x7) | 48-LQFP | Brushed DC | PWM | Surface Mount | 5 V | 21 V |
