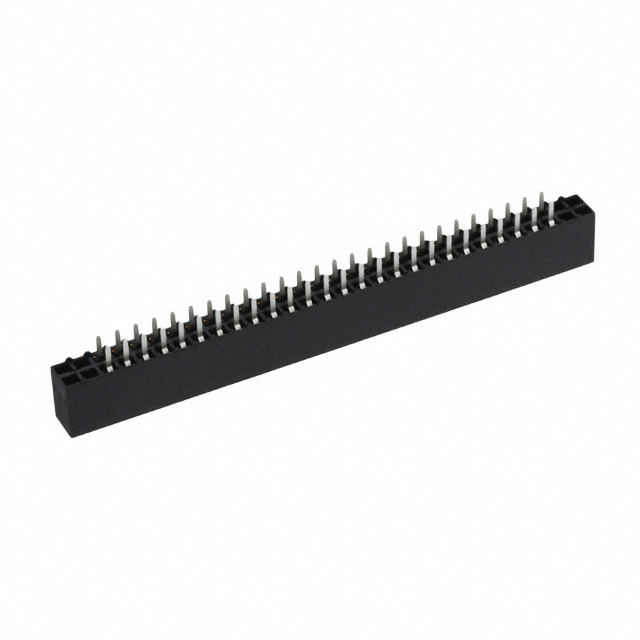

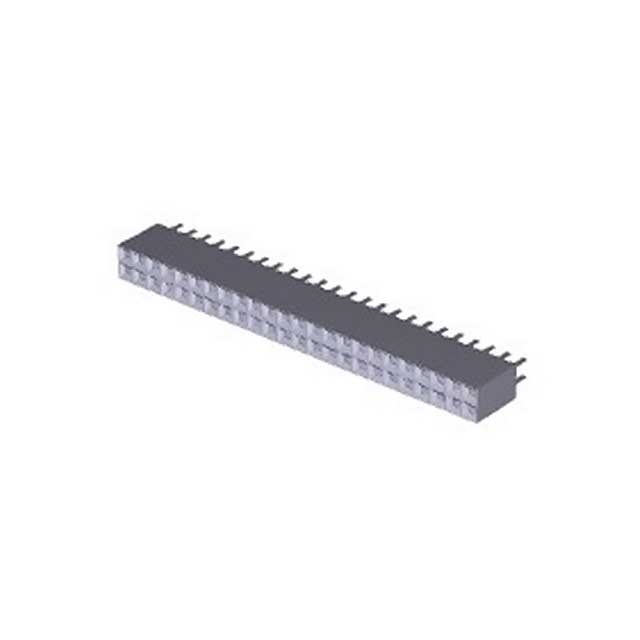

102766 Series

Catalog

CONN RCPT 48POS 0.1 GOLD PCB

Part	Contact Shape	Contact Finish Thickness - Post	Insulation Material	Contact Material	Fastening Type	Insulation Color	Insulation Height [z]	Insulation Height [z]	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Number of Rows [custom]	Mounting Type	Number of Positions	Contact Type	Number of Positions Loaded	Termination	Material Flammability Rating	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
TE Connectivity AMP Connectors 102766-1	Square	3.81 Ám	Glass Filled Polyester Thermoplastic	Phosphor Bronze	Push-Pull	Black	8.13 mm	0.32 in	0.1 "	2.54 mm	Tin-Lead	2	Through Hole	48	Female Socket	40	Solder	UL94 V-0	Gold	0.115 in	2.92 mm	Receptacle	0.1 in	2.54 mm	0.25 µm	10 µin
TE Connectivity AMP Connectors 5-102766-1	Square	3.81 Ám	Glass Filled Polyester Thermoplastic	Phosphor Bronze	Push-Pull	Black	8.13 mm	0.32 in	0.1 "	2.54 mm	Tin	2	Through Hole	48	Female Socket	40	Solder	UL94 V-0	Gold	0.115 in	2.92 mm	Receptacle	0.1 in	2.54 mm	0.25 µm	10 µin
