160344 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

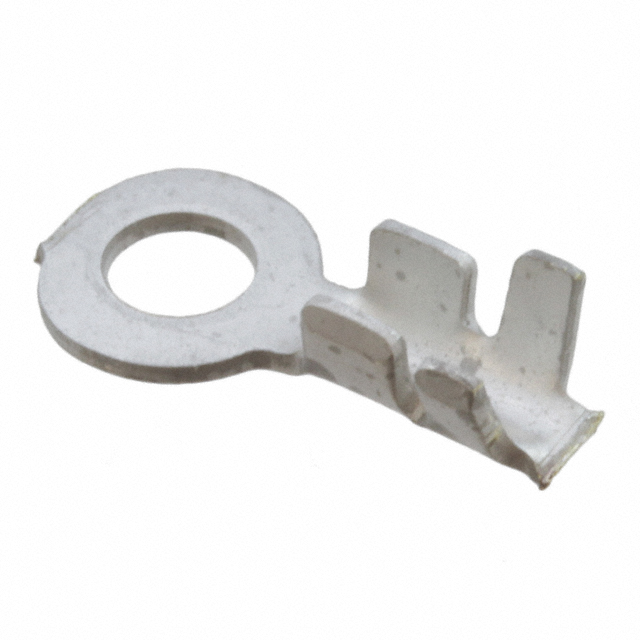

RING TONGUE TERMINAL 16-20AWG BRASS 11.7MM TIN T/R
| Part | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Min] | Termination | Thickness | Thickness | Stud/Tab Size | Contact Finish | Length - Overall [x] | Length - Overall [x] | Insulation | Wire Gauge [Min] | Wire Gauge [Max] | Mounting Type | Terminal Type | Width - Outer Edges | Width - Outer Edges | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | |||||||||||||||||||
TE Connectivity AMP Connectors | 2.79 mm | 1.91 mm | 0.11 " | 0.075 in | Crimp | 0.61 mm | 0.024 " | M3 Stud | Tin | 11.71 mm | 0.461 in | Non-Insulated | 15 AWG | 20 AWG | Free Hanging (In-Line) | Circular | 0.244 in | 6.2 mm | Brass |
