CABLE 375 Series
Manufacturer: GCT
Beta
⌘K

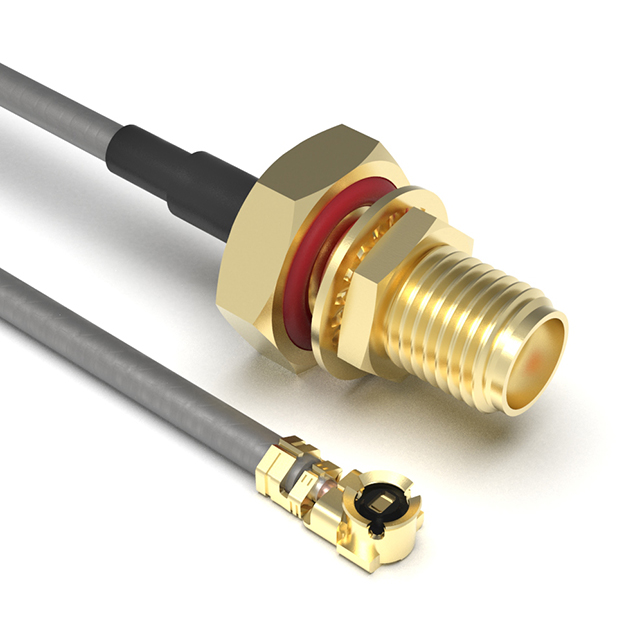

CBL ASY IPEX MHF1-SMA J-P 5.906"
| Part | Frequency - Max [Max] | Style | 1st Connector | Length | Length | Operating Temperature [Max] | Operating Temperature [Min] | 1st Connector Mounting Type | Cable Impedance | 2nd Connector | Features | 2nd Contact Gender | 1st Connector Mounting Feature | Overall Impedance | Color | 1st Contact Gender | 2nd Connector Mounting Type | Cable Type | Cable Type [diameter] | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
6000 MHz | IPEX MHF1 to SMA | SMA Jack | 150 mm | 5.906 in | 85 °C | -40 C | Panel Mount | 50 Ohms | IPEX MHF1 Plug Right Angle | IP Rated Unmated | Female | Bulkhead - Front Side Nut | 50 Ohms | Gray | Female | Free Hanging (In-Line) | Coaxial Cable | 1.13 mm | IP67/IP68 | |
6000 MHz | I-PEX MHF1 to SMA | SMA Jack | 150 mm | 5.906 in | 85 °C | -40 C | Panel Mount | 50 Ohms | I-PEX MHF1 Plug Right Angle | IP Rated Unmated | Female | Bulkhead - Front Side Nut | 50 Ohms | Gray | Female | Free Hanging (In-Line) | Coaxial Cable | 1.13 mm | IP67/IP68 |
