1403A Series
Manufacturer: Belden Inc.
Beta
⌘K

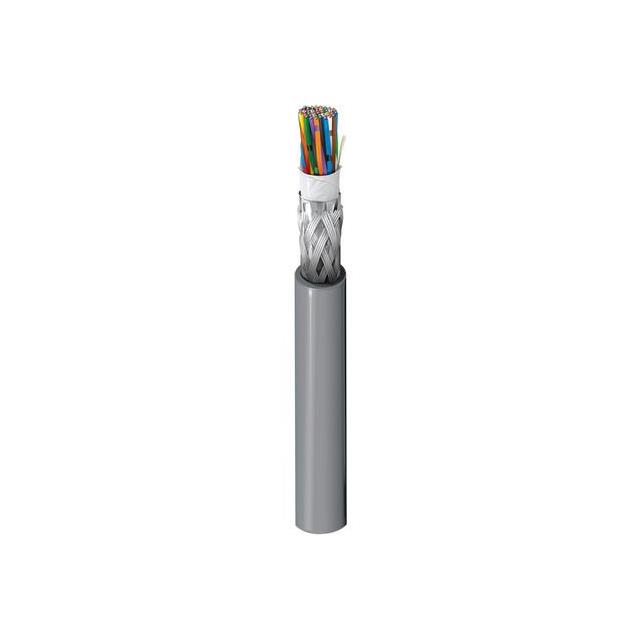

MULTI-PAIR 68CON 28AWG GRAY
| Part | Shield Coverage | Shield Material | Conductor Insulation | Conductor Insulation | Jacket Color | Cable Type | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Length | Length | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Jacket (Insulation) Thickness [custom] | Jacket (Insulation) Thickness [custom] | Number of Conductors | Shield Type | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 85 % 100 % | Aluminum Copper Tinned | Polyolefin | PO | Gray | Multi-Pair | Poly-Vinyl Chloride (PVC) | 7 | 36 AWG | 152.4 m | 500 ft | Copper Tinned | 0.48 in | 12.19 mm | 28 AWG | 0.038 in | 0.965 mm | 68 | Braid Foil | 300 VDC |
