470035CY Series

Catalog

CABLE 3CON 21AWG CLEAR SHLD 100M

Part	Voltage	Conductor Strand [diameter]	Conductor Strand [custom]	Shield Coverage	Conductor Insulation	Length [x]	Length [x]	Features	Conductor Material	Operating Temperature [Max]	Operating Temperature [Min]	Usage	Shield Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Type	Number of Conductors	Wire Gauge	Jacket Color	Cable Type	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length

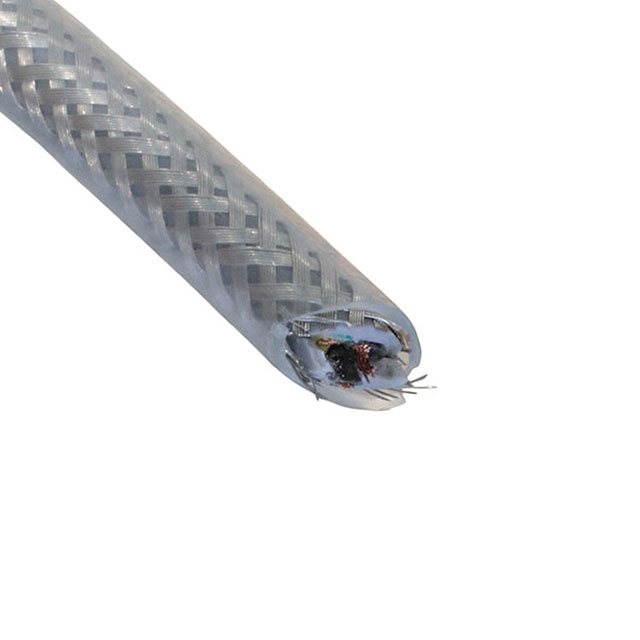

ALPHA WIRE 470035CY CL033	300 VDC	0.007 in	20	80 %	Poly-Vinyl Chloride (PVC)	328.1 ft	100 m	Chemical Resistant Oil Resistant UV Resistant	Copper Bare	80 °C	-40 C	Industrial	Copper Tinned	0.82 mm	0.0323 in	Braid	3	21 AWG	Clear	Multi-Conductor	Poly-Vinyl Chloride (PVC)	0.293 in	7.44 mm

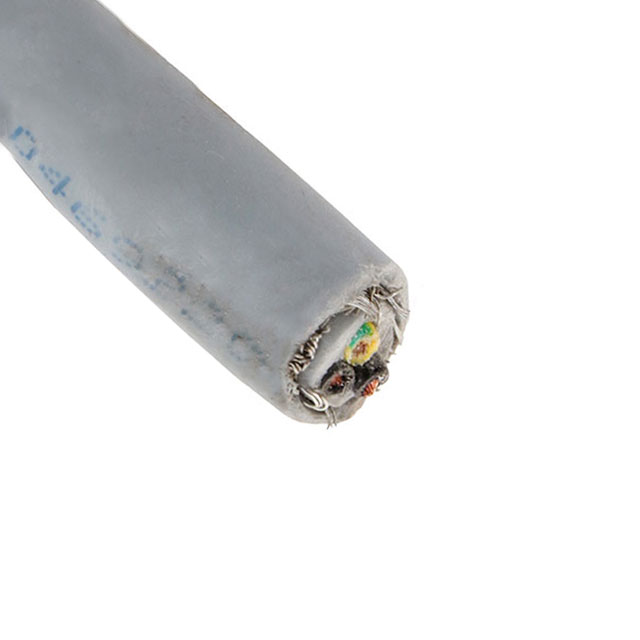

ALPHA WIRE 470035CY GE033	300 VDC	0.007 in	20	80 %	Poly-Vinyl Chloride (PVC)	328.1 ft	100 m	Chemical Resistant Oil Resistant UV Resistant	Copper Bare	80 °C	-40 C	Industrial	Copper Tinned	0.82 mm	0.0323 in	Braid	3	21 AWG	Gray	Multi-Conductor	Poly-Vinyl Chloride (PVC)	0.293 in	7.44 mm
ALPHA WIRE 470035CY CL432	300 VDC	0.007 in	20	80 %	Poly-Vinyl Chloride (PVC)	98.43 ft 984.3 ft	30 m 300 m	Chemical Resistant Oil Resistant UV Resistant	Copper Bare	80 °C	-40 C	Industrial	Copper Tinned	0.82 mm	0.0323 in	Braid	3	21 AWG	Clear	Multi-Conductor	Poly-Vinyl Chloride (PVC)	0.293 in	7.44 mm	1 m 10 m 20 m	3.28 ft 32.81 ft 65.62 ft
ALPHA WIRE 470035CY GE432	300 VDC	0.007 in	20	80 %	Poly-Vinyl Chloride (PVC)	98.43 ft	30 m	Chemical Resistant Oil Resistant UV Resistant	Copper Bare	80 °C	-40 C	Industrial	Copper Tinned	0.82 mm	0.0323 in	Braid	3	21 AWG	Gray	Multi-Conductor	Poly-Vinyl Chloride (PVC)	0.293 in	7.44 mm	10 m 20 m	32.81 ft 65.62 ft
ALPHA WIRE 470035CY CL321	300 VDC	0.007 in	20	80 %	Poly-Vinyl Chloride (PVC)			Chemical Resistant Oil Resistant UV Resistant	Copper Bare	80 °C	-40 C	Industrial	Copper Tinned	0.82 mm	0.0323 in	Braid	3	21 AWG	Clear	Multi-Conductor	Poly-Vinyl Chloride (PVC)	0.293 in	7.44 mm	50 m	164 ft
ALPHA WIRE 470035CY GE321	300 VDC	0.007 in	20	80 %	Poly-Vinyl Chloride (PVC)			Chemical Resistant Oil Resistant UV Resistant	Copper Bare	80 °C	-40 C	Industrial	Copper Tinned	0.82 mm	0.0323 in	Braid	3	21 AWG	Gray	Multi-Conductor	Poly-Vinyl Chloride (PVC)	0.293 in	7.44 mm	50 m	164 ft
