6412 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

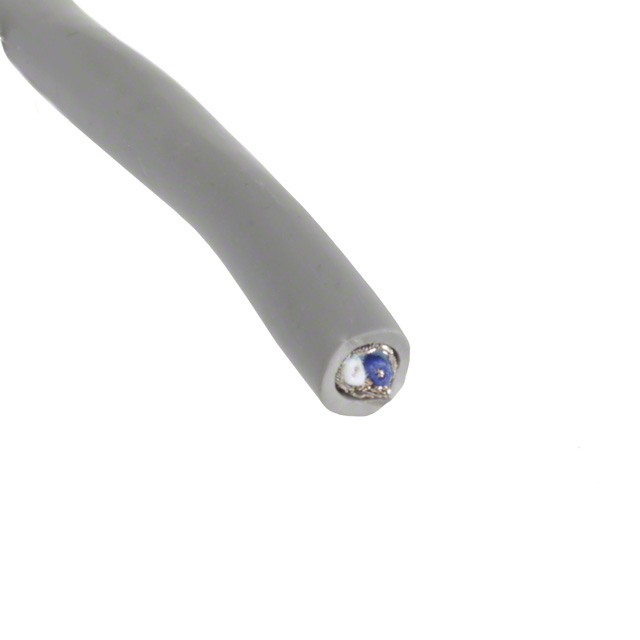

CABLE 2CON 24AWG SLATE SHLD 100'
| Part | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Features | Cable Type | Conductor Insulation | Length [x] | Length [x] | Wire Gauge | Shield Material | Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Ratings | Shield Coverage | Jacket (Insulation) Material | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Braid Foil | 0.208 in | 5.28 mm | Copper Tinned | Drain Wire | Multi-Conductor | Polyethylene (PE) | 30.5 m | 100 ft | 24 AWG | Aluminum Copper Tinned | 300 V | -20 C | 80 C | UL Style 2919 | 90 % 100 % | Poly-Vinyl Chloride (PVC) | 2 | 32 AWG | 7 | Slate | 0.889 mm | 0.035 in |
