9553-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT .015-.022 HEX

Part	Operating Temperature [Min]	Operating Temperature [Max]	Length - Overall [x]	Length - Overall [x]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Tail Diameter [diameter]	Tail Diameter [diameter]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Socket Depth [z]	Socket Depth [z]	Mounting Hole Diameter	Mounting Hole Diameter	Contact Finish	Termination	Tail Type	Accepts Pin Diameter [Max]

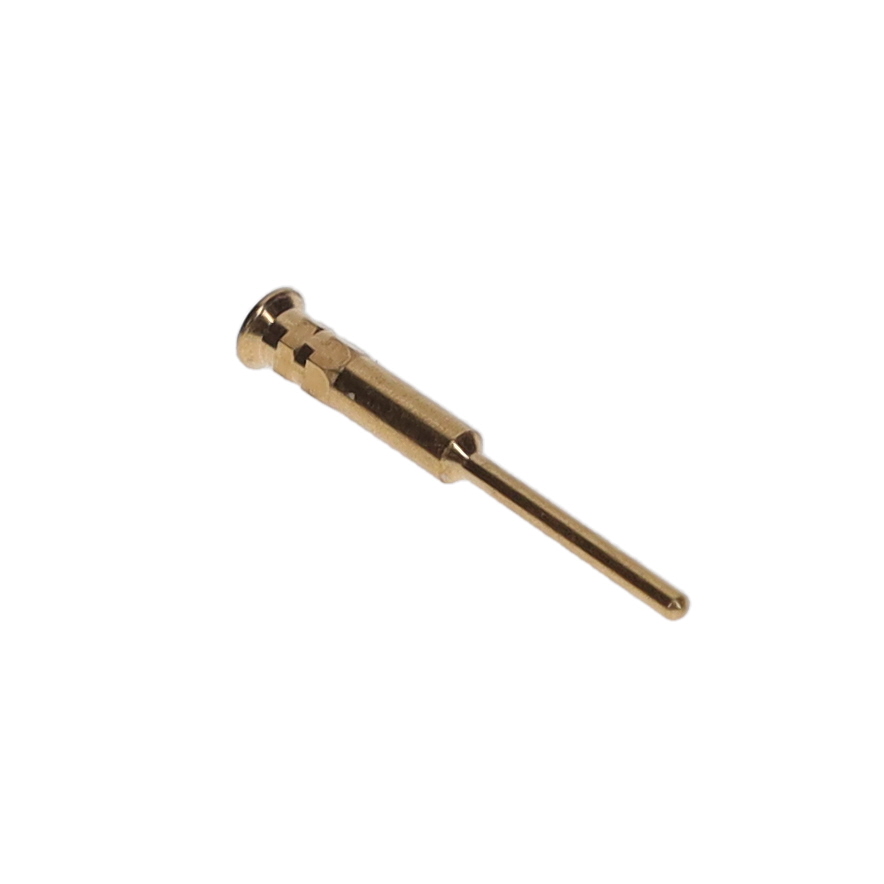

Mill-Max Manufacturing Corp. 9553-0-15-15-21-27-04-0	-55 C	125 °C	8.94 mm	0.352 in	0.38 mm	0.022 in	0.015 "	0.56 mm	1.4 mm	0.055 in	30 Áin	0.76 Ám	Beryllium Copper	0.46 mm	0.018 in	0.031 in	0.79 mm	0.154 in	3.91 mm	0.041 in	1.04 mm	Gold	Hex Press-Fit	Standard Tail
Mill-Max Manufacturing Corp. 9553-0-15-80-21-84-04-0	-55 C	125 °C	8.94 mm	0.352 in	0.38 mm	0.02 in	0.015 "		1.4 mm	0.055 in	100 µin	2.54 µm	Beryllium Copper	0.46 mm	0.018 in	0.031 in	0.79 mm	0.154 in	3.91 mm	0.041 in	1.04 mm	Tin	Hex Press-Fit	Standard Tail	0.51 mm
Mill-Max Manufacturing Corp. 9553-0-15-15-21-14-04-0	-55 C	125 °C	8.94 mm	0.352 in	0.38 mm	0.02 in	0.015 "		1.4 mm	0.055 in	10 Áin	0.25 Ám	Beryllium Copper	0.46 mm	0.018 in	0.031 in	0.79 mm	0.154 in	3.91 mm	0.041 in	1.04 mm	Gold	Hex Press-Fit	Standard Tail	0.51 mm

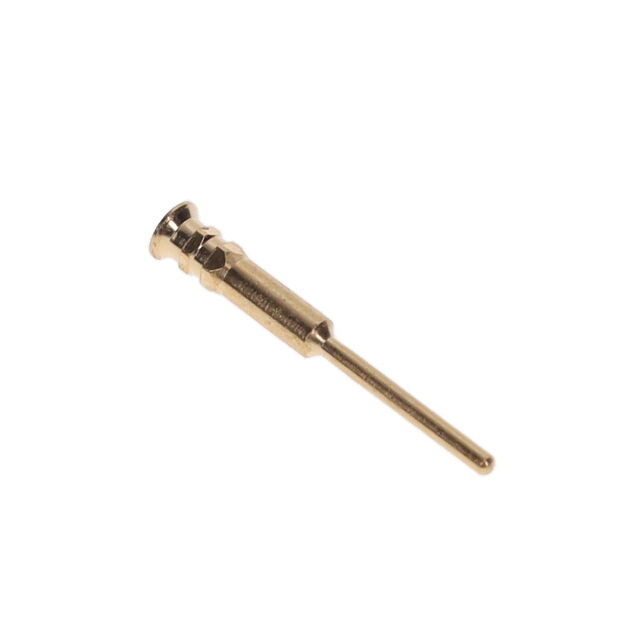

Mill-Max Manufacturing Corp. 9553-0-15-15-11-27-04-0	-55 C	125 °C	8.94 mm	0.352 in	0.38 mm	0.02 in	0.015 "		1.4 mm	0.055 in	30 Áin	0.76 Ám	Beryllium Copper	0.46 mm	0.018 in	0.031 in	0.79 mm	0.154 in	3.91 mm	0.041 in	1.04 mm	Gold	Hex Press-Fit	Standard Tail	0.51 mm
Mill-Max Manufacturing Corp. 9553-0-15-01-11-02-04-0	-55 C	125 °C	8.94 mm	0.352 in	0.38 mm	0.02 in	0.015 "		1.4 mm	0.055 in	100 µin	2.54 µm	Beryllium Copper	0.46 mm	0.018 in	0.031 in	0.79 mm	0.154 in	3.91 mm	0.041 in	1.04 mm	Tin-Lead	Hex Press-Fit	Standard Tail	0.51 mm
Mill-Max Manufacturing Corp. 9553-0-15-80-21-14-04-0	-55 C	125 °C	8.94 mm	0.352 in	0.38 mm	0.02 in	0.015 "		1.4 mm	0.055 in	10 Áin	0.25 Ám	Beryllium Copper	0.46 mm	0.018 in	0.031 in	0.79 mm	0.154 in	3.91 mm	0.041 in	1.04 mm	Gold	Hex Press-Fit	Standard Tail	0.51 mm
