V1000 Series

Catalog

VARISTOR 1.5125KV 6.5KA DISC

Part	Maximum AC Volts [Max]	Varistor Voltage (Min) [Min]	Varistor Voltage (Max) [Max]	Varistor Voltage (Typ)	Energy	Maximum DC Volts [Max]	Package / Case	Package / Case	Number of Circuits	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance @ Frequency	Mounting Type	Current - Surge
LITTELFUSE V1000LA160B	1000 V	1.425 kV	1.6 kV	1.5125 kV	360 J	1.2 kV	20 mm	Disc	1	-55 °C	85 C	250 pF	Through Hole
LITTELFUSE V1000LT80AP	1000 V	1.5 kV	1.8 kV	1.65 kV	220 J	1.2 kV		Disc 14mm	1	-55 °C	85 C	130 pF	Through Hole	4.5 kA

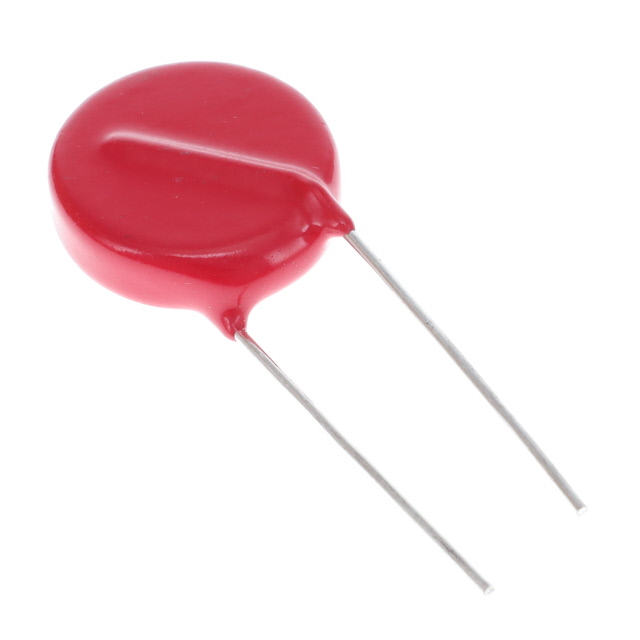

LITTELFUSE V1000LA160BPX10	1000 V	1.425 kV	1.6 kV	1.5125 kV	360 J	1.2 kV	20 mm	Disc	1	-55 °C	85 C	250 pF	Through Hole
LITTELFUSE V1000LC80AP	1000 V	1.5 kV	1.8 kV	1.65 kV	220 J	1.2 kV		Disc 14mm	1	-55 °C	85 C	130 pF	Through Hole	4.5 kA
LITTELFUSE V1000LC80A	1000 V	1.5 kV	1.8 kV	1.65 kV	220 J	1.2 kV		Disc 14mm	1	-55 °C	85 C	250 pF	Through Hole	4.5 kA
LITTELFUSE V1000LC160BPX10	1000 V	1.425 kV	1.6 kV	1.5125 kV	360 J	1.2 kV	20 mm	Disc	1	-55 °C	85 C	250 pF	Through Hole
LITTELFUSE V1000LC160BP	1000 V	1.425 kV	1.6 kV	1.5125 kV	360 J	1.2 kV	20 mm	Disc	1	-55 °C	85 C	250 pF	Through Hole
LITTELFUSE V1000LA160BP	1000 V	1.425 kV	1.6 kV	1.5125 kV	360 J	1.2 kV	20 mm	Disc	1	-55 °C	85 C	250 pF	Through Hole
LITTELFUSE V1000LA80A	1000 V	1.5 kV	1.8 kV	1.65 kV	220 J	1.2 kV		Disc 14mm	1	-55 °C	85 C	135 pF	Through Hole	4.5 kA
LITTELFUSE V1000LA160BPX1347	1000 V	1.425 kV	1.6 kV	1.5125 kV	360 J	1.2 kV	20 mm	Disc	1	-55 °C	85 C	250 pF	Through Hole
