M80-530 Series

Catalog

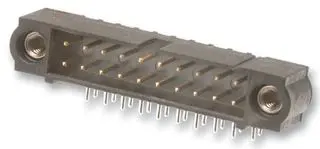

CONN HEADER R/A 10POS 2MM

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Mounting Type	Material Flammability Rating	Contact Shape	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Style	Contact Material	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Number of Positions Loaded	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Number of Rows [custom]	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Voltage Rating	Connector Type	Shrouding	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Contact Finish - Mating	Insulation Material	Termination	Features	Contact Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height [z]	Insulation Height [z]

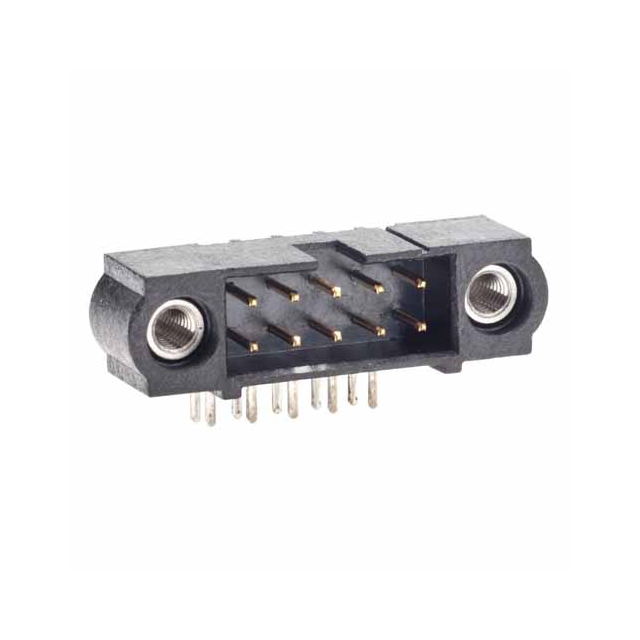

Harwin Inc. M80-5301022	118.1 µin	3 µm	Right Angle Through Hole	UL94 V-0	Circular	5.55 mm	0.218 in	0.118 in	3 mm	Board to Board Cable	Phosphor Bronze	29.5 µin	0.75 µm	All	Tin-Lead	0.079 "	2 mm	2	10	-55 C	125 °C	2.2 A	800 V	Header	Shrouded - 4 Wall	Black	2 mm	0.079 in	Threaded	Gold	Polyphenylene Sulfide (PPS) Glass Filled	Solder	Keying Slot Mating Flange	Male Pin
Harwin Inc. M80-5301842	118.1 µin	3 µm	Right Angle Through Hole	UL94 V-0	Circular	5.55 mm	0.218 in	0.118 in	3 mm	Board to Board Cable	Phosphor Bronze	29.5 µin	0.75 µm	All	Tin	0.079 "	2 mm	2	18	-55 C	125 °C	2.2 A	800 V	Header	Shrouded - 4 Wall	Black	2 mm	0.079 in	Threaded	Gold	Polyphenylene Sulfide (PPS) Glass Filled	Solder	Keying Slot Mating Flange	Male Pin
Harwin Inc. M80-5301642			Right Angle Through Hole	UL94 V-0	Circular	5.6 mm	0.22 in	0.118 in	3 mm	Board to Board Cable	Phosphor Bronze	29.5 µin	0.75 µm	All	Tin	0.079 "	2 mm	2	16	-55 C	125 °C	2.2 A	800 VAC	Header	Shrouded - 4 Wall	Black	2 mm	0.079 in	Threaded	Gold	Polyphenylene Sulfide (PPS) Glass Filled	Solder	Keying Slot Mating Flange	Male Pin	12 µin	0.3 µm
Harwin Inc. M80-5301605			Right Angle Through Hole	UL94 V-0	Circular			0.118 in	3 mm	Board to Cable/Wire	Phosphor Bronze			All	Gold	0.079 "	2 mm	2	16	-55 C	125 °C			Header	Shrouded - 4 Wall	Black	2 mm	0.079 in	Threaded	Gold	Polyphenylene Sulfide (PPS) Glass Filled	Solder	Keying Slot Mating Flange	Male Pin			0.238 "	6.05 mm

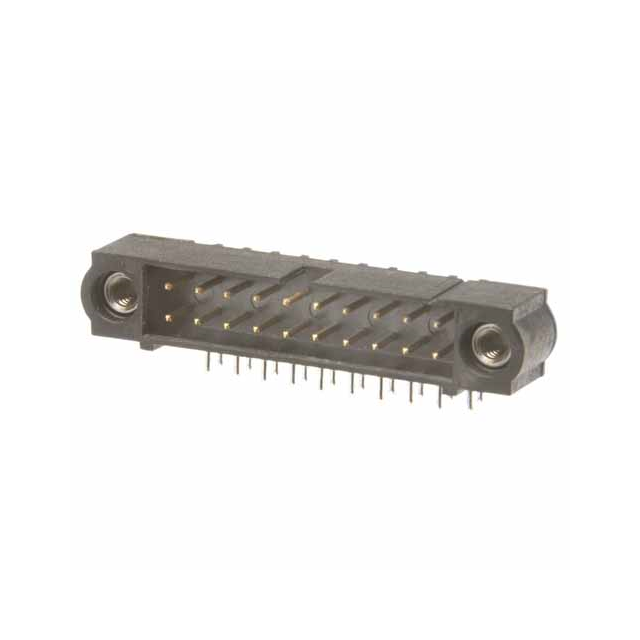

Harwin Inc. M80-5301222	118.1 µin	3 µm	Right Angle Through Hole	UL94 V-0	Circular	5.55 mm	0.218 in	0.118 in	3 mm	Board to Board Cable	Phosphor Bronze	29.5 µin	0.75 µm	All	Tin-Lead	0.079 "	2 mm	2	12	-55 C	125 °C	2.2 A	800 V	Header	Shrouded - 4 Wall	Black	2 mm	0.079 in	Threaded	Gold	Polyphenylene Sulfide (PPS) Glass Filled	Solder	Keying Slot Mating Flange	Male Pin
Harwin Inc. M80-5301805			Right Angle Through Hole	UL94 V-0	Circular			0.118 in	3 mm	Board to Cable/Wire	Phosphor Bronze			All	Gold	0.079 "	2 mm	2	18	-55 C	125 °C			Header	Shrouded - 4 Wall	Black	2 mm	0.079 in	Threaded	Gold	Polyphenylene Sulfide (PPS) Glass Filled	Solder	Keying Slot Mating Flange	Male Pin			0.238 "	6.05 mm

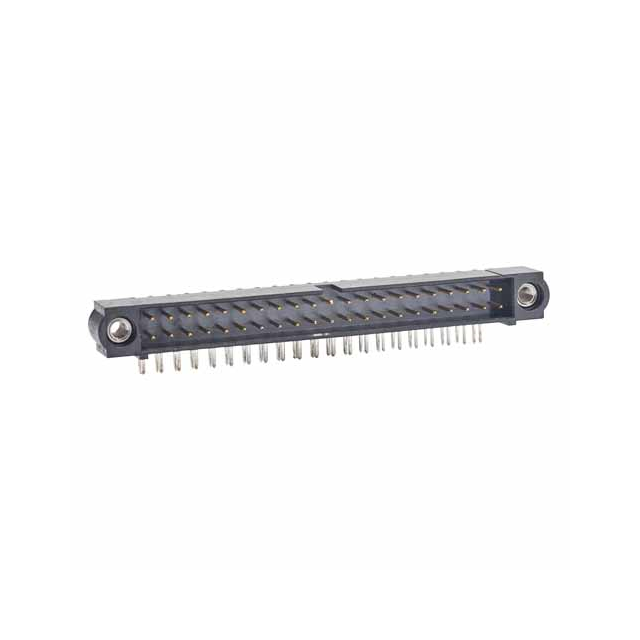

Harwin Inc. M80-5305022	118.1 µin	3 µm	Right Angle Through Hole	UL94 V-0	Circular	5.55 mm	0.218 in	0.118 in	3 mm	Board to Board Cable	Phosphor Bronze	29.5 µin	0.75 µm	All	Tin-Lead	0.079 "	2 mm	2	50	-55 C	125 °C	2.2 A	800 V	Header	Shrouded - 4 Wall	Black	2 mm	0.079 in	Threaded	Gold	Polyphenylene Sulfide (PPS) Glass Filled	Solder	Keying Slot Mating Flange	Male Pin
Harwin Inc. M80-5300842	118.1 µin	3 µm	Right Angle Through Hole	UL94 V-0	Circular	5.55 mm	0.218 in	0.118 in	3 mm	Board to Board Cable	Phosphor Bronze	29.5 µin	0.75 µm	All	Tin	0.079 "	2 mm	2	8	-55 C	125 °C	2.2 A	800 V	Header	Shrouded - 4 Wall	Black	2 mm	0.079 in	Threaded	Gold	Polyphenylene Sulfide (PPS) Glass Filled	Solder	Keying Slot Mating Flange	Male Pin
Harwin Inc. M80-5302022	118.1 µin	3 µm	Right Angle Through Hole	UL94 V-0	Circular	5.55 mm	0.218 in	0.118 in	3 mm	Board to Board Cable	Phosphor Bronze	29.5 µin	0.75 µm	All	Tin-Lead	0.079 "	2 mm	2	20	-55 C	125 °C	2.2 A	800 V	Header	Shrouded - 4 Wall	Black	2 mm	0.079 in	Threaded	Gold	Polyphenylene Sulfide (PPS) Glass Filled	Solder	Keying Slot Mating Flange	Male Pin

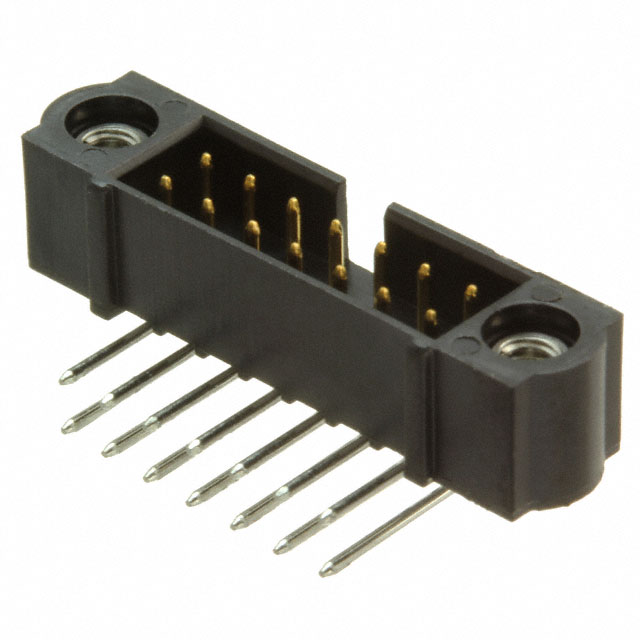

Harwin Inc. M80-5301422	118.1 µin	3 µm	Right Angle Through Hole	UL94 V-0	Circular	5.55 mm	0.218 in	0.118 in	3 mm	Board to Board Cable	Phosphor Bronze	29.5 µin	0.75 µm	All	Tin-Lead	0.079 "	2 mm	2	14	-55 C	125 °C	2.2 A	800 V	Header	Shrouded - 4 Wall	Black	2 mm	0.079 in	Threaded	Gold	Polyphenylene Sulfide (PPS) Glass Filled	Solder	Keying Slot Mating Flange	Male Pin
