90000 Series Series

Power Toggle Switch

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Power Toggle Switch

Part	Voltage Rating - AC	Bushing Thread	Actuator Material	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Actuator Type	Illumination	Termination Style	Electrical Life	Ingress Protection	Actuator Length [x]	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Switch Function	Actuator Marking	Approval Agency	Color - Actuator/Cap	Mounting Type	Features	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]
Littelfuse/Commercial Vehicle Products 9221TCWZ4QD	125 V	15/32-32	Brass Chrome Plated	28 V	-30 ░C	85 °C	DPDT	Standard Round	Non-Illuminated	Quick Connect - 0.187" (4.7mm)	25000 Steps	IP67 - Dust Tight Waterproof	17.45 mm	10 A	11.91 mm	On-On
Littelfuse/Commercial Vehicle Products 9201J37ZQE22	125 V			30 V	-30 ░C	85 °C	DPDT	Concave (Standard V)		Solder Lug	25000 Steps			6 A		On-On	No Marking	cULus	Black	Panel Mount Snap-In	Epoxy Sealed Terminals	30.99 mm	17.15 mm

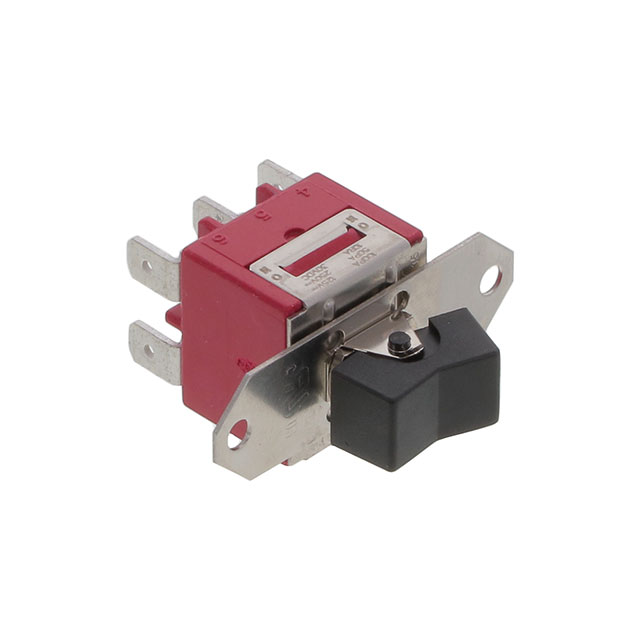

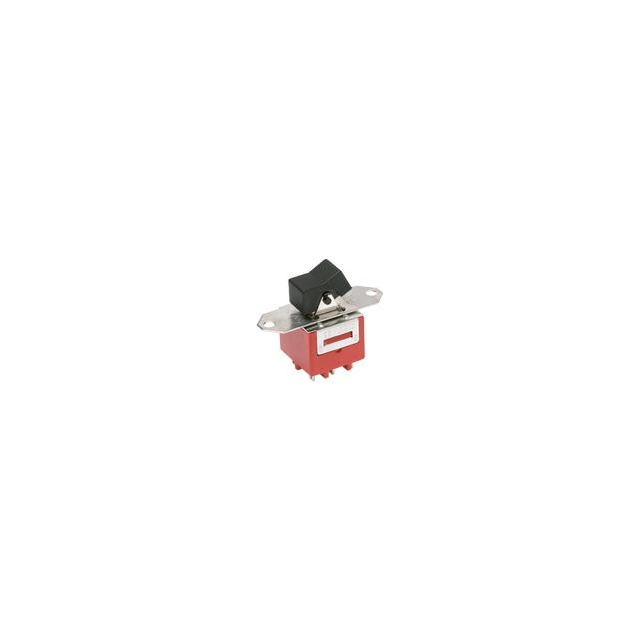

Littelfuse/Commercial Vehicle Products 9221J1Z4QD2	125 V			30 V	-30 ░C	85 °C	DPDT	Concave (Standard V)		Quick Connect - 0.187" (4.7mm)	25000 Steps			10 A		On-On	No Marking	cULus	Black	Flange Panel Mount		17.96 mm	10.62 mm
Littelfuse/Commercial Vehicle Products 9201TCWCQE	120 V	15/32-32	Brass Chrome Plated	28 V	-30 ░C	85 °C	DPDT	Standard Round	Non-Illuminated	PC Pin	25000 Steps	IP67 - Dust Tight Waterproof	17.45 mm	6 A	11.91 mm	On-On					Epoxy Sealed Terminals
Littelfuse/Commercial Vehicle Products 9201J3ZQE2	125 V			30 V	-30 ░C	85 °C	DPDT	Concave (Standard V)		Solder Lug	25000 Steps			6 A		On-On	No Marking	cULus	Black	Flange Panel Mount	Epoxy Sealed Terminals	27.81 mm	16.46 mm

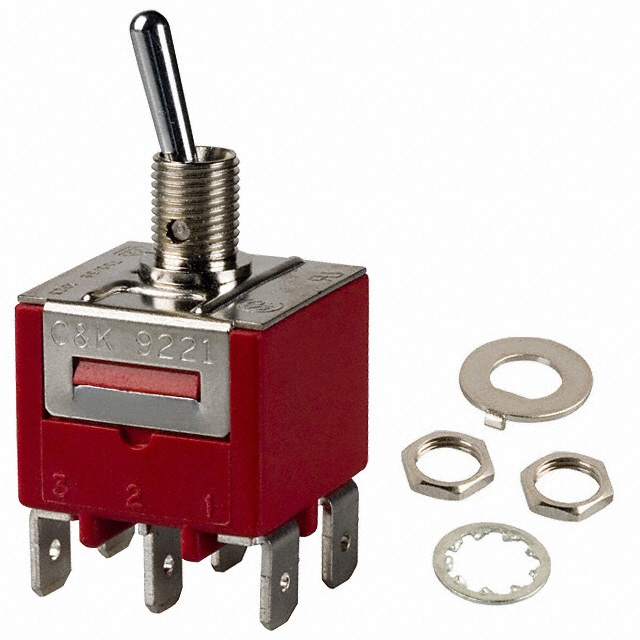

Littelfuse/Commercial Vehicle Products 9201SH3Z4QD	120 V	1/4-40	Brass Chrome Plated	28 V	-30 ░C	85 °C	DPDT	Anti-Rotation	Non-Illuminated	Quick Connect - 0.187" (4.7mm)	25000 Steps		10.41 mm	6 A	0.25 in	On-On
Littelfuse/Commercial Vehicle Products 9201J3Z4QD2	125 V			30 V	-30 ░C	85 °C	DPDT	Concave (Standard V)		Quick Connect - 0.187" (4.7mm)	25000 Steps			6 A		On-On	No Marking	cULus	Black	Flange Panel Mount		27.81 mm	16.46 mm
Littelfuse/Commercial Vehicle Products 9201P3H3CQE	120 V	1/4-40	Brass Chrome Plated	28 V	-30 ░C	85 °C	DPDT	Flat Anti-Rotation	Non-Illuminated	PC Pin	25000 Steps		11.43 mm	6 A	0.25 in	On-On					Epoxy Sealed Terminals
Littelfuse/Commercial Vehicle Products 9201SHZQE	120 V	1/4-40	Brass Chrome Plated	28 V	-30 ░C	85 °C	DPDT	Anti-Rotation	Non-Illuminated	Solder Lug	25000 Steps		10.41 mm	6 A	0.25 in	On-On					Epoxy Sealed Terminals
Littelfuse/Commercial Vehicle Products 9221TZ4QD	125 V	15/32-32	Brass Chrome Plated	28 V	-30 ░C	85 °C	DPDT	Standard Round	Non-Illuminated	Quick Connect - 0.187" (4.7mm)	25000 Steps		17.45 mm	10 A	11.91 mm	On-On

Catalog

Power Toggle Switch

Key Features

• Power ratings up to 10 AMPS

• Locking lever options available

• Wide variety of actuator styles

Description

Perfect for use as a shut-off switch or in small equipment, C&K’s 9000 series power toggle switch has a variety of options to meet designers’ needs. The 9000 series switches are available with power ratings up to 10 amps, come in a wide variety of actuator styles, have optional locking levers and are available as double pole models.
