CSPEMI306A Series

EMI Filter with ESD Protection

Catalog

EMI Filter with ESD Protection

Part	Values	Mounting Type	Type	Center / Cutoff Frequency	Package / Case	ESD Protection	Attenuation Value	Resistance - Channel (Ohms)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Height [z]	Height [z]	Operating Temperature [Max]	Operating Temperature [Min]	Technology	Number of Channels	Applications	Filter Order	Number of Channels [custom]

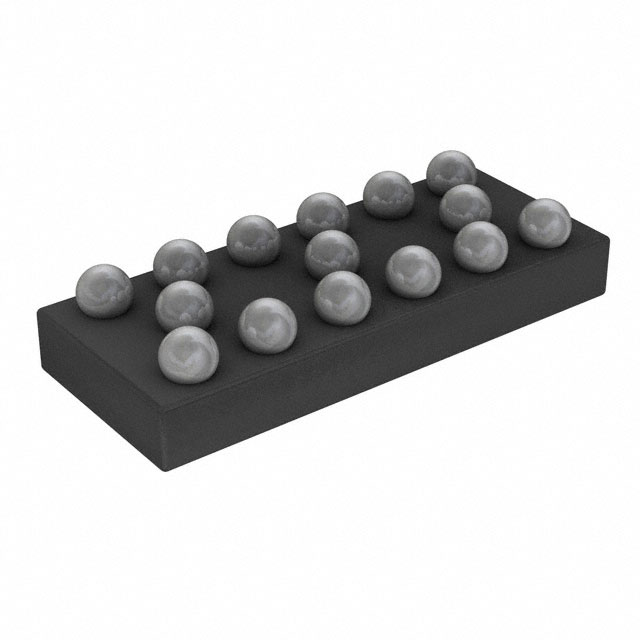

ON Semiconductor CSPEMI307AG	30 pF 100 Ohms	Surface Mount	Low Pass	64 MHz	15-UFBGA WLCSP		30 dB	100 Ohms	0.117 "	0.052 in	1.33 mm	2.96 mm	0.026 in	0.65 mm	85 °C	-40 °C	RC (Pi)	4	USB	2nd
ON Semiconductor CSPEMI306AG	30 pF 100 Ohms	Surface Mount	Low Pass	58 MHz	15-UFBGA WLCSP		30 dB	100 Ohms	0.117 "	0.052 in	1.33 mm	2.96 mm	0.026 in	0.65 mm	85 °C	-40 °C	RC (Pi)		Data Lines for Mobile Devices	2nd	6

Catalog

EMI Filter with ESD Protection

Key Features

• EMI/ESD channels provide greater than 32dB attenuation at 1GHz

• Chip Scale Package features extremely low lead inductance for optimum filter and ESD performance

• Four channels of combined EMI/RFI filtering + ESD protection

• Four additional channels of ESD-only protection

Description

The CSPEMI307A is a multichannel EMI/ESD array offering a combination of four low-pass filter + ESD channels to reduce EMI/RFI emissions on a data port and four dedicated ESD-only channels intended specifically for ESD protection on a USB port. Each EMI/RFI channel integrates a high quality pi-style filter (C-R-C) which provides greater than 30dB attenuation in the 800-2700 MHz range. These pistyle filters support bidirectional filtering, controlling EMI both to and from a data port connector.
