RAFIX 22 QR Series

Manufacturer: RAFI USA

Catalog

SWITCH ACTUATORS SWITCH RAFIX 22QR PB ILLUM SLV

Part	Panel Cutout Dimensions [diameter]	Actuator Type	Illumination	Requires	(Select First, Then Apply Filters) Compatible Series	Type	Termination Style	Circuit	Contact Rating @ Voltage	Voltage
RAFI USA 1.30.240.001/1308	22.3 mm	Pushbutton Round	Illuminated - Red	Contact Block(s) Illumination Source	Rafix 22QR	Momentary
RAFI USA 1.20.125.003/0000				Switch Body	Rafix 22QR		Screwless Clamp	SPST-NC x 2	10 A 125 VAC
RAFI USA 1.30.240.231/1400
RAFI USA 5.00.070.081/0000					Rafix 22QR	Lamp Socket				250 VDC

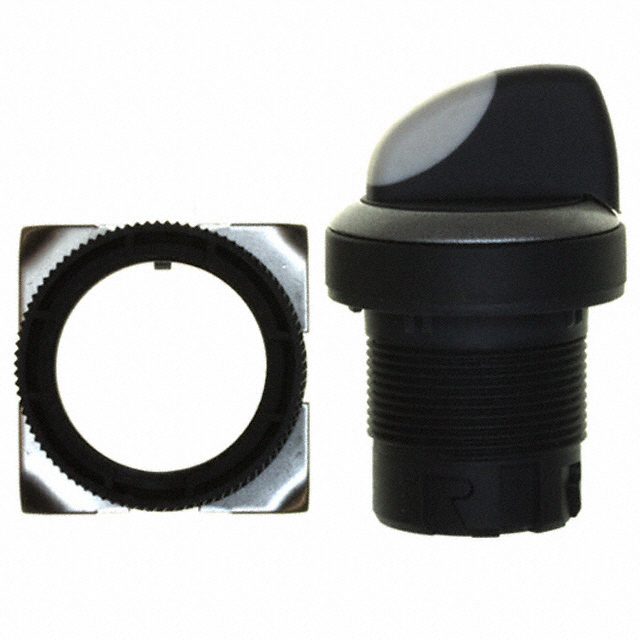

RAFI USA 1.30.242.802/0200	22.3 mm	Selector	Non-Illuminated	Contact Block(s)	Rafix 22QR	Maintained
RAFI USA 1.30.245.522/0000
RAFI USA 1.20.125.025/0000				Switch Body	Rafix 22QR		Screwless Clamp	SPST-NC SPST-NO	10 A 125 VAC
RAFI USA 1.30.240.005/1601
RAFI USA 1.20.125.104/0000				Switch Body	Rafix 22QR		Screwless Clamp	SPST-NO x 2	0.1 A 35 VAC/DC

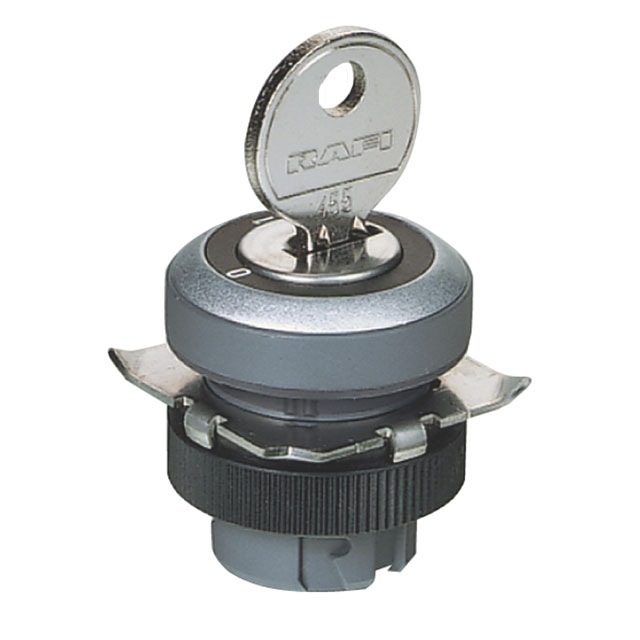

RAFI USA 1.30.245.302/0000
