HLMP-3351 Series

Catalog

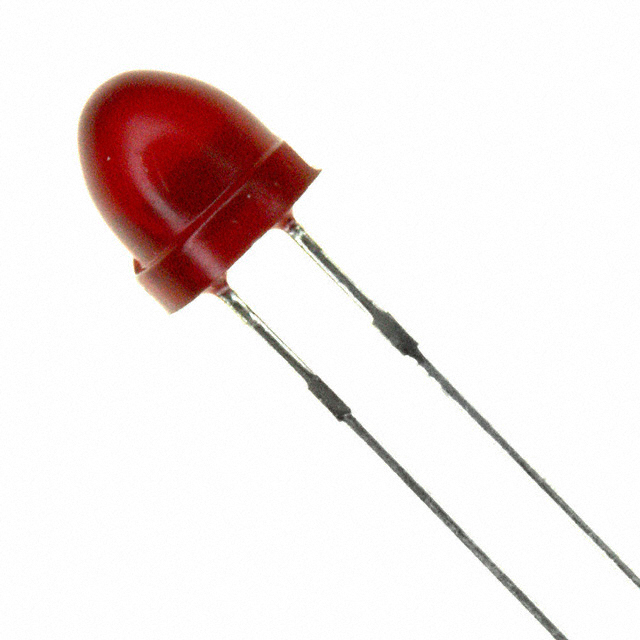

LED RED DIFFUSED T-1 3/4 T/H

Part	Millicandela Rating	Current - Test	Wavelength - Peak	Viewing Angle	Configuration	Wavelength - Dominant	Supplier Device Package	Lens Style	Voltage - Forward (Vf) (Typ)	Color	Lens Transparency	Height (Max) [Max] [z]	Lens Color	Package / Case	Mounting Type	Lens Size	Lens Size
Broadcom Limited HLMP-3351	5.4 mcd	10 mA	635 nm	50 °	Standard	626 nm	T-1 3/4	Round with Domed Top	1.9 V	Red	Diffused	6.35 mm	Red	Radial	Through Hole	T-1 3/4	5 mm
Broadcom Limited HLMP-3351-D0000	2.1 mcd	10 mA	635 nm	50 °	Standard	626 nm	T-1 3/4	Round with Domed Top	1.9 V	Red	Diffused	6.35 mm	Red	Radial	Through Hole	T-1 3/4	5 mm
Broadcom Limited HLMP-3351-F0002	5.4 mcd	10 mA	635 nm	50 °	Standard	626 nm	T-1 3/4	Round with Domed Top	1.9 V	Red	Diffused	6.35 mm	Red	Radial	Through Hole	T-1 3/4	5 mm
